Smartoptics Activity 885 - 10 Calibration Procedure; Calibration; Figure 16: Individual Calibration Block

22
Calibration procedure
Each calibrating block is measured industrially.
These individual values can be found on the calibration model.

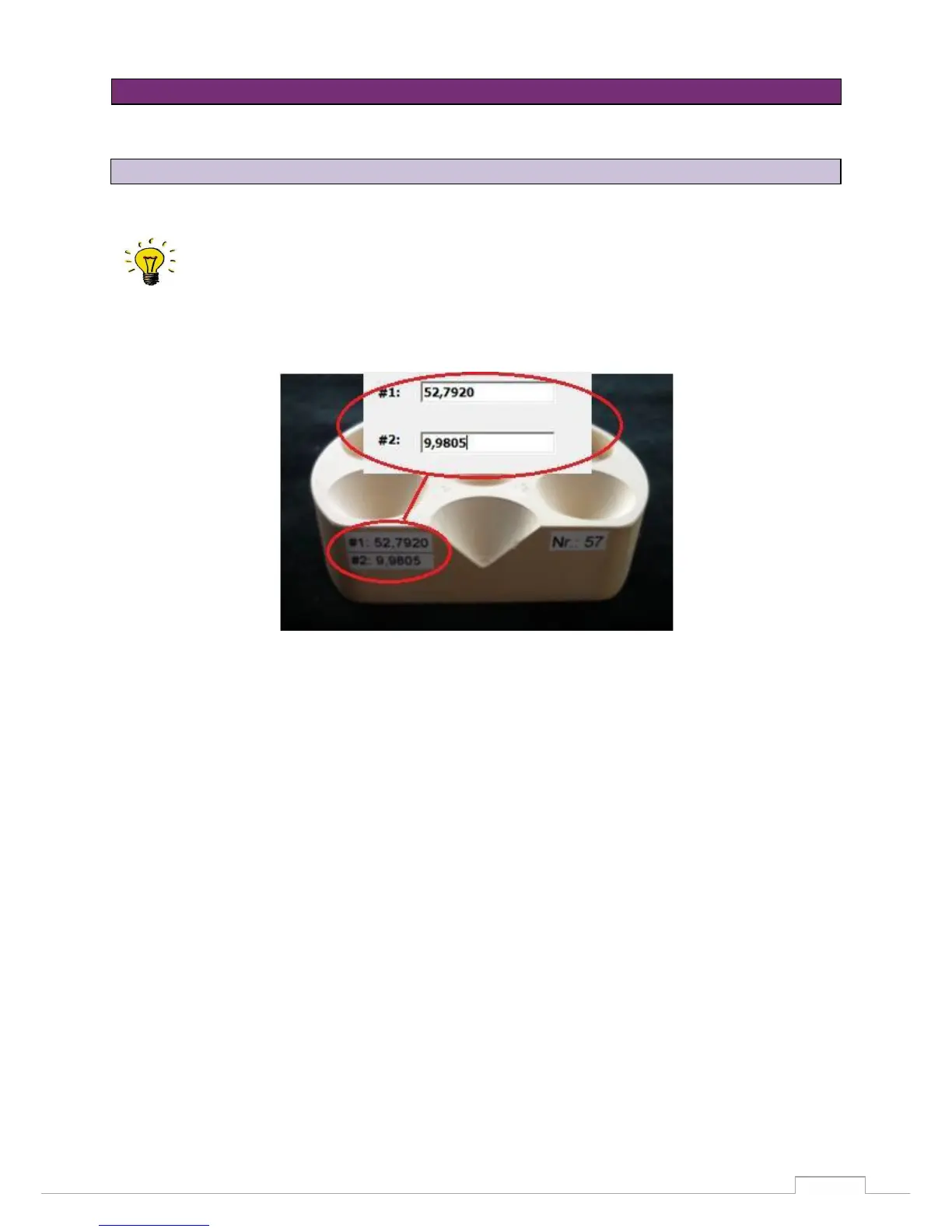

Figure 16: individual calibration block
These values must be saved in the software after reinstalling the software or replacing the calibration
model.
Start this procedure as follows:
A window opens under Options Service  Calibration model registration (Fig. 18).
10. Calibration procedure
10.1 3D calibration
