Basic information about the device
Using the object holder system:
The object holder of the Activity 880 primarily comprises a system base plate fixed on a swivelling unit.

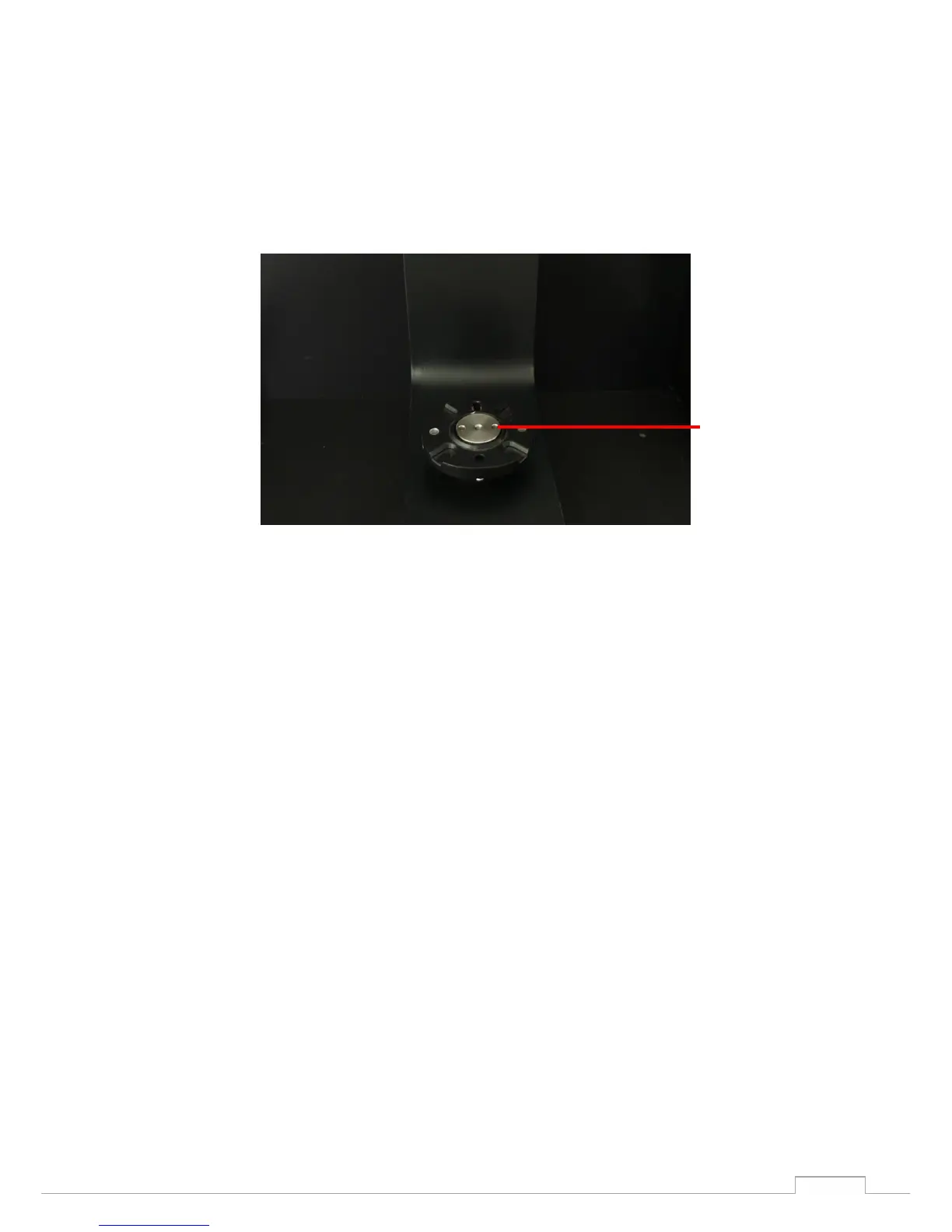

Figure 26: Object Holder system
In order to ensure an optimum alignment of the model to be scanned in the measuring range, a
maximum of three additional spacer plates can be mounted on this.
The locking plate is attached to the top-most spacer plate, and screwed to the system base plate with
the additional spacer plates. The following elements can now be attached to the locking plate:
the removable object holder
the scan fixator (optional accessory)
the system adapter plate (optional accessory)
