Scanning procedure
47
This means that the scan has been preformed and construction can begin. (See fig. 53)

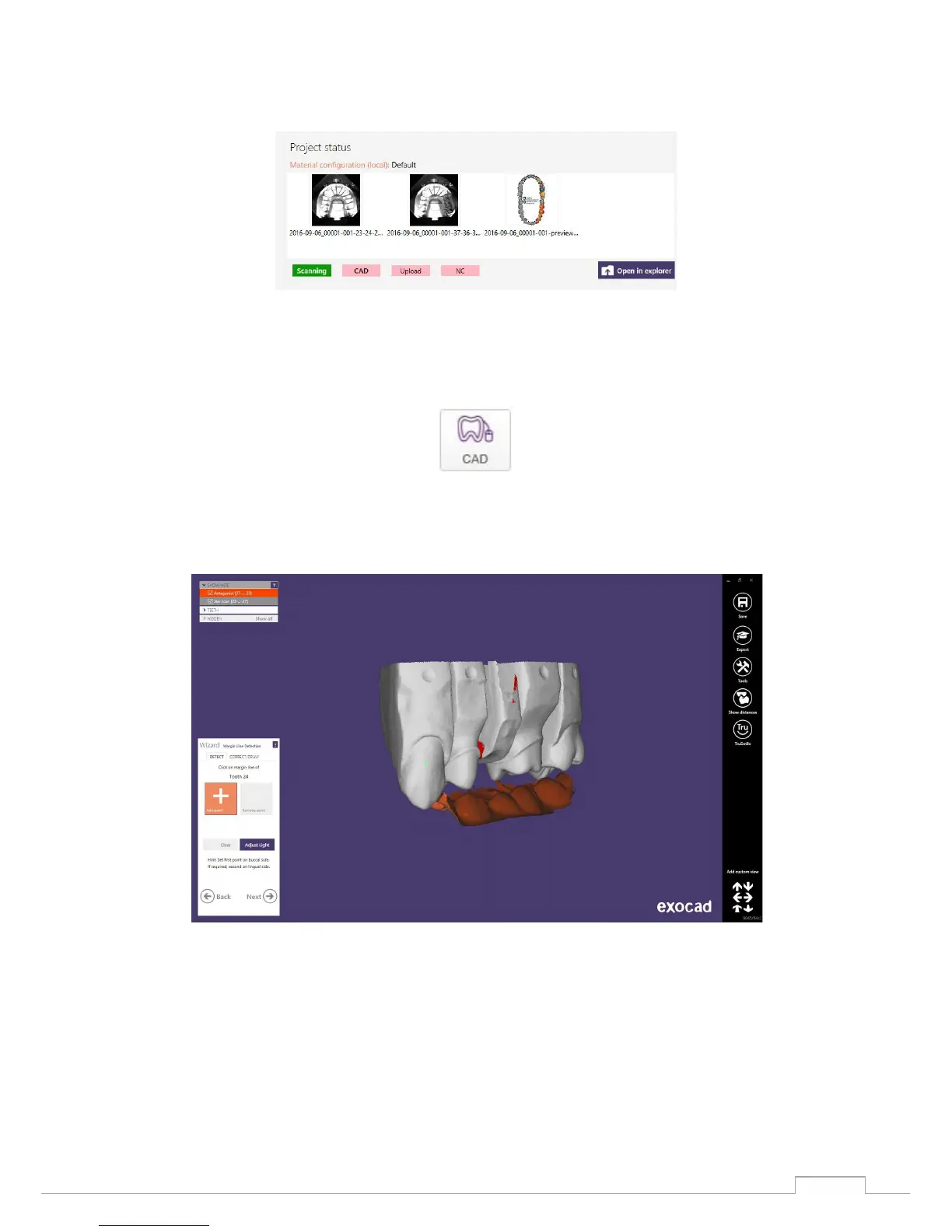

Figure 52: scanning process done
Now start the construction with the following icon:
Figure 53: CAD-Icon
The STL data sets are displayed in the CAD software and construction can begin.
Figure 54: Complete STL data sets in the cat software
