Optional 1000BASE-LX Module (SMC6724L2GLSC)

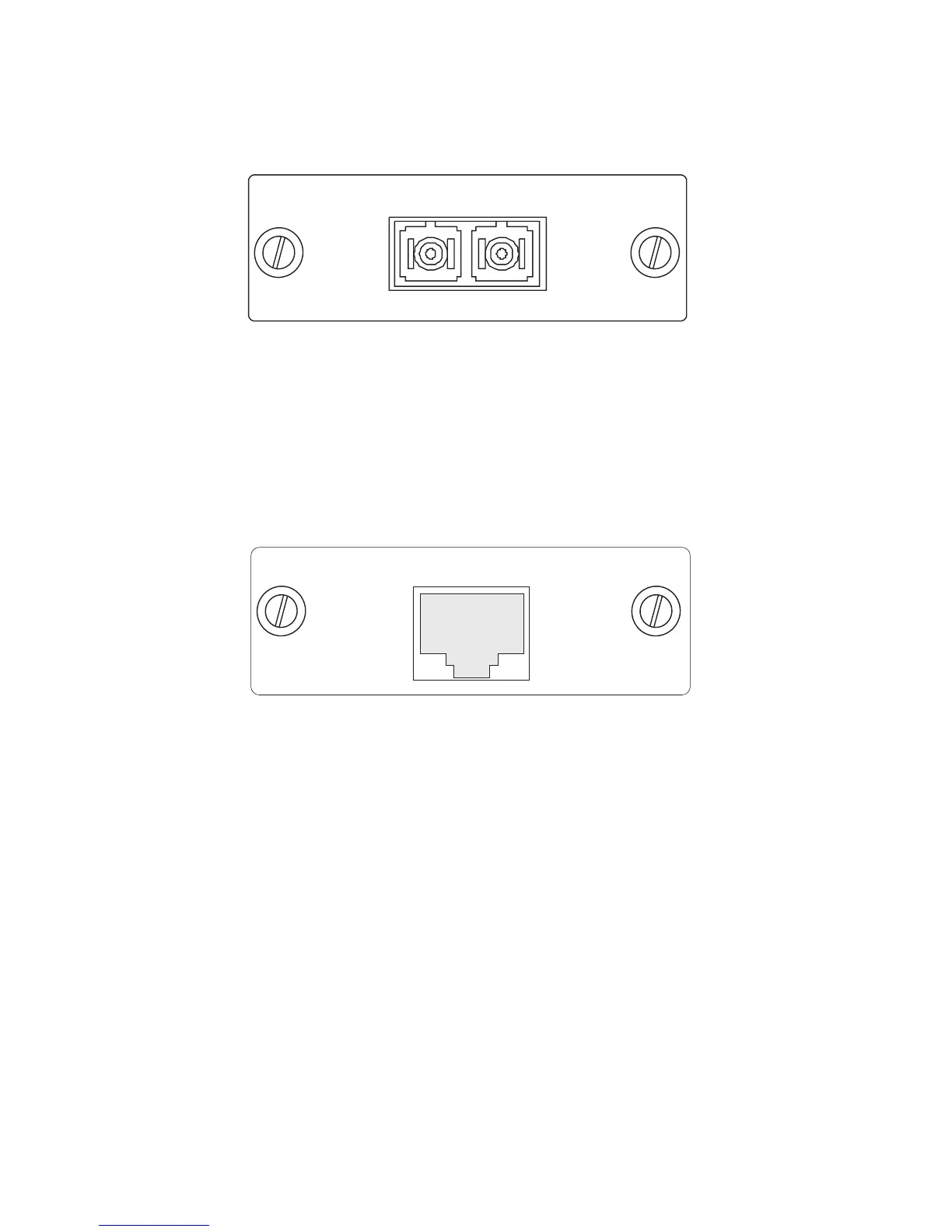

Figure 1-4. Single-Port 1000BASE-LX Gigabit Module
Using fiber optic cable, the 1000BASE-LX port can be connected to
a remote site up to 5 km (16404 ft) away. The 1000BASE-LX
Gigabit module operates at 1 Gbps, with support for full-duplex
mode and flow control. This module is fitted with an SC connector.
Optional 1000BASE-T Module (SMC6725L2GT)
Figure 1-5. Single-Port 1000BASE-T Gigabit Module
Using Category 5 or 5e twisted-pair cable, the maximum cable
length is 100m (328 ft). You should test the cable installation for
IEEE 802.3ab compliance. Note that this module operates at
1 Gbps, full duplex, and supports auto-negotiation for flow
control.
SMC6724L2GLSC
1000BASE LX-SC Expansion Module
RX
TX
1000BASE-T Module
SMC6725L2GT
