N ETWORK P LANNING
2-2
Sample Applications
The TigerSwitch 10/100 is not only designed to segment your
network, but also to provide a wide range of options in setting up
network connections. Some typical applications are described
below.
Collapsed Backbone
The TigerSwitch 10/100 is an excellent choice for mixed Ethernet
and Fast Ethernet installations where significant growth is
expected in the near future. You can easily build on this basic
configuration, adding direct full-duplex connections to
workstations or servers. When the time comes for further
expansion, just cascade the TigerSwitch to an Ethernet or Fast
Ethernet hub or switch, or link to another workgroup using a
Gigabit connection.

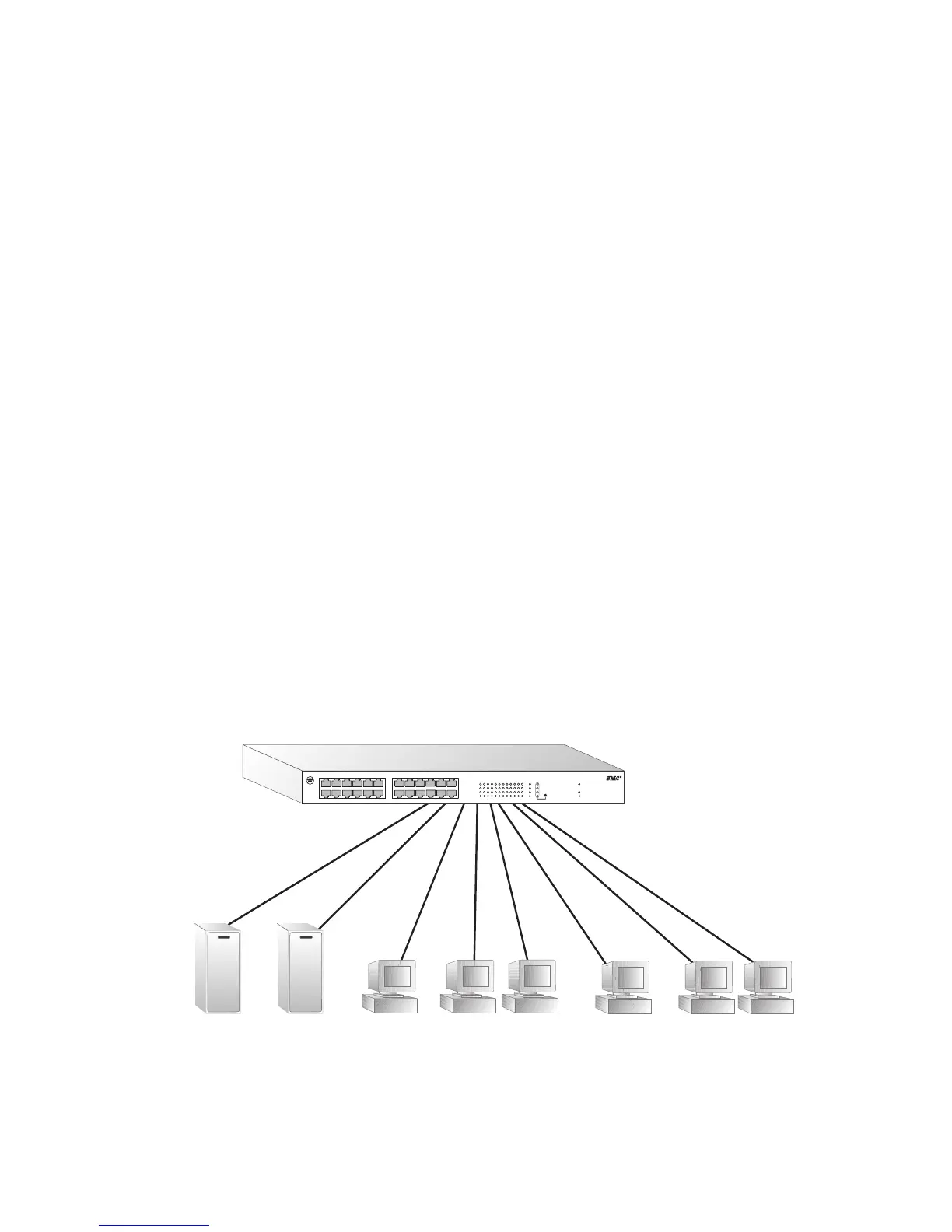

In the figure below, the TigerSwitch 10/100 is operating as a
collapsed backbone for a small LAN. It is providing dedicated
20 Mbps full-duplex connections to workstations and 200 Mbps
full-duplex connections to power users and servers.
Figure 2-1. Collapsed Backbone
Servers
200 Mbps
Full Duplex
Workstations
200 Mbps
Full Duplex
Workstations
20 Mbps
Full Duplex
...
...
...
Status
Link
Link
Status
Status
M2
M1
FDX
ACT
COL
100M
Power
SNMP
Console
Tiger Switch 10/100
6724L2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1234 567 89101112
13
14
15 16
17
18 19
20
21 22
23
24
