T
WISTED
-P
AIR
D
EVICES
4-3
Connecting to PCs, Servers, Hubs and Switches
1. Attach one end of a twisted-pair cable segment to the device’s
RJ-45 connector.

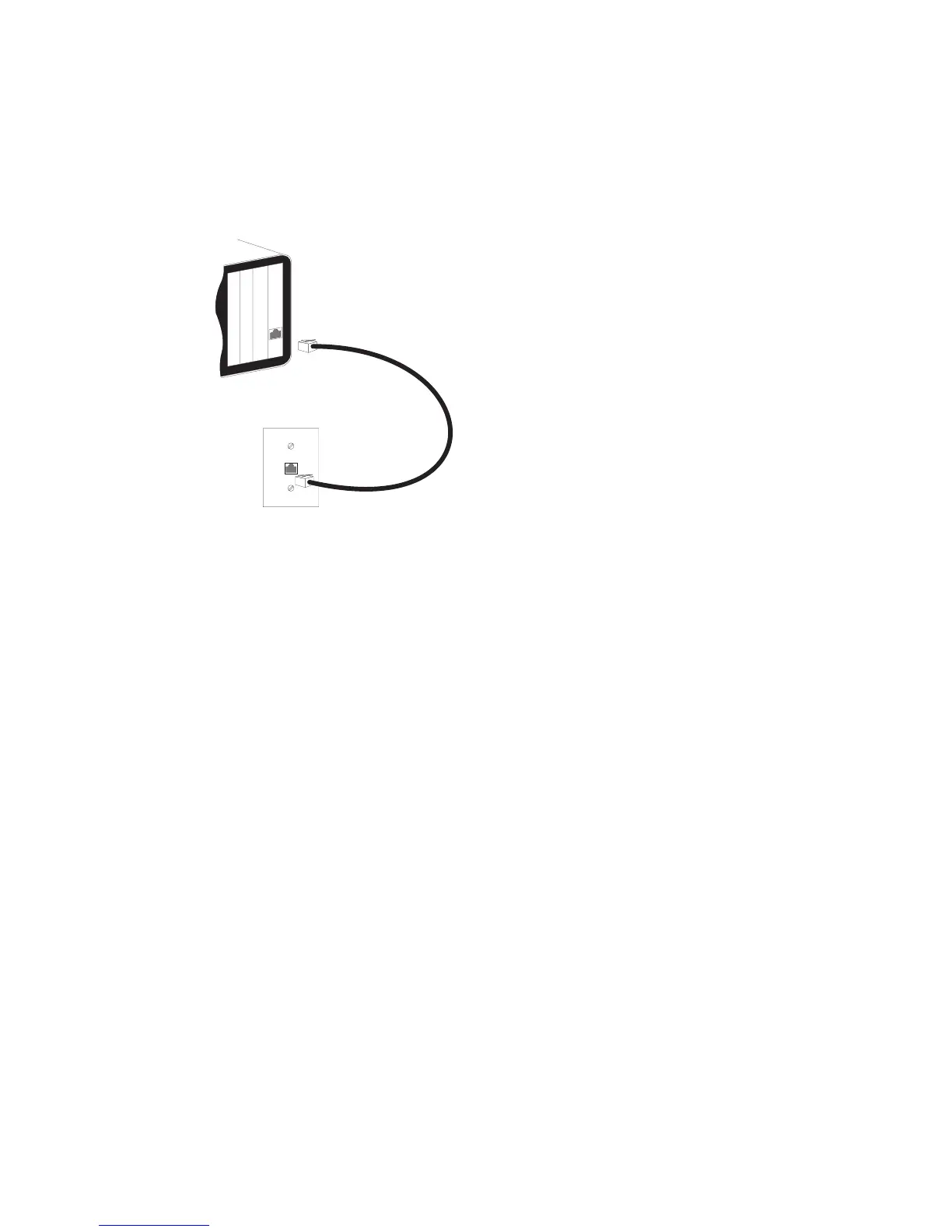

Figure 4-1. Making Twisted-Pair Connections
2. If the device is a PC card and the TigerSwitch is in the wiring
closet, attach the other end of the cable segment to a modular
wall outlet that is connected to the wiring closet (see “Wiring
Closet Connections” on the next page). Otherwise, attach the
other end to an available port on the switch.
3. Make sure each twisted pair cable does not exceed 100 meters
(328 ft) in length.
Note: When connected to a shared collision domain (such as a
hub with multiple workstations), switch ports must be set
to half-duplex mode and back pressure flow control
disabled.
4. As each connection is made, the green Link LED (on the
TigerSwitch) corresponding to each port will light to indicate
that the connection is valid.
