SMC Networks ISE80 User Manual

-14-
No.PS※※-OMM0003-J
Mounting and Installation
■Installation
○Mounting
•Mount the optional bracket and panel mount adapter to the Pressure switch.
•When the Pressure switch is to be mounted in a place where water and dust splashes occur, insert a tube
(O.D φ4 mm, I.D φ2.5 mm) into the atmospheric vent port of the Pressure switch.

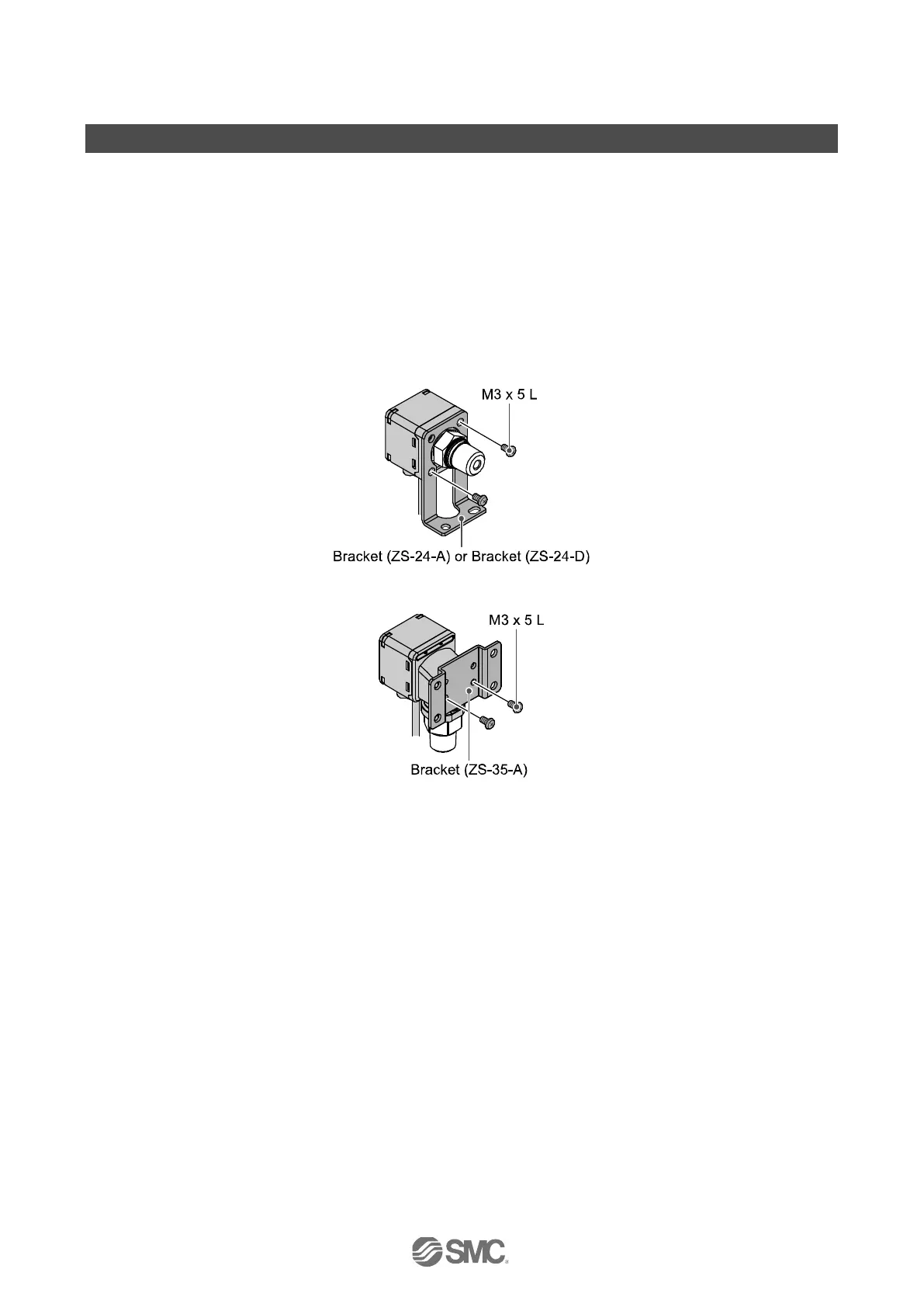

○Mounting with bracket
•Fix the bracket to the Pressure switch with the set screws M3 x 5 L (2 pcs.) supplied.
•The required tightening torque is 0.5 to 0.7 Nm.
<Rear piping>
<Bottom piping>
