Troubleshooting

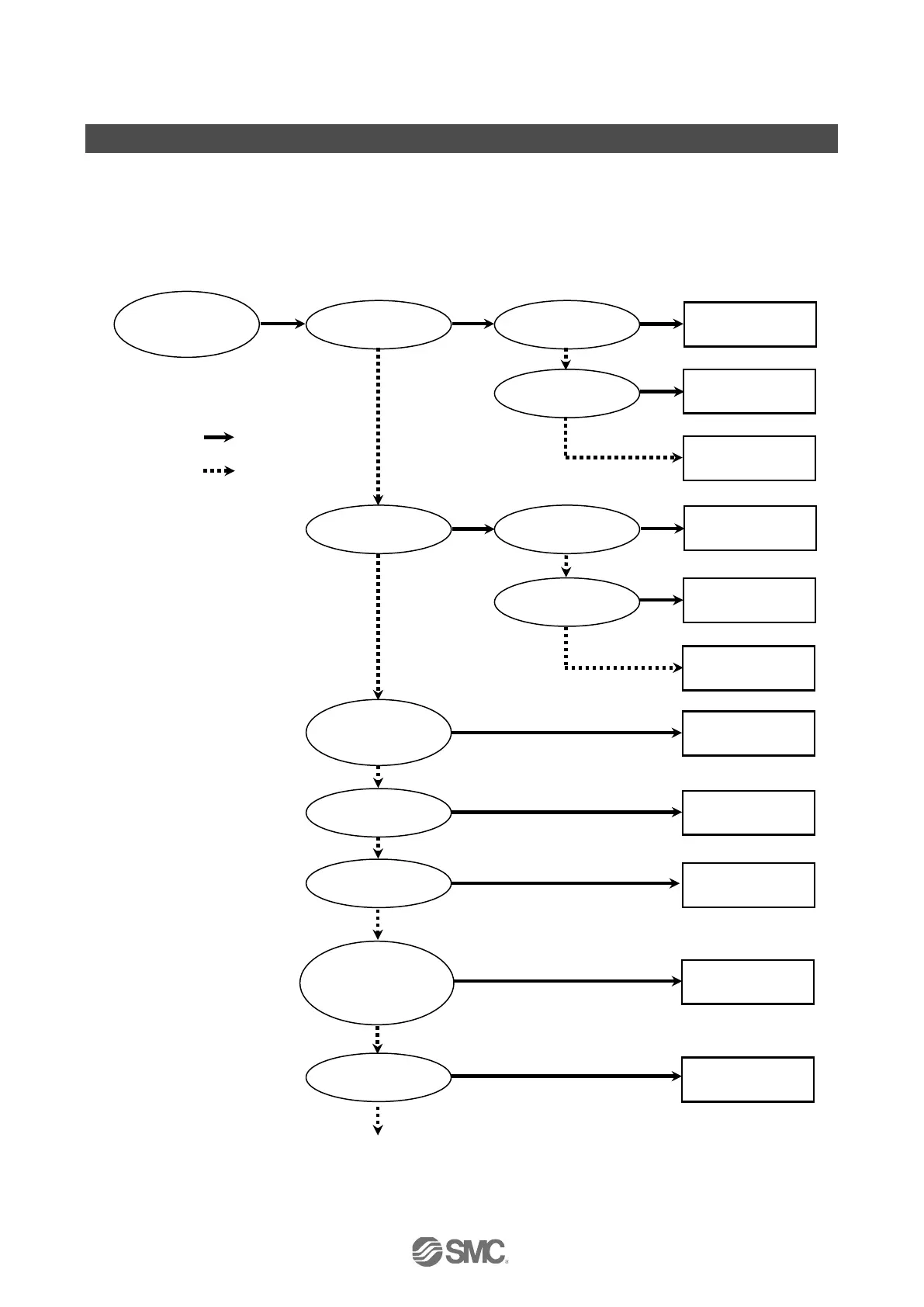

○Troubleshooting
Applicable Pressure switch: ZSE80(F)/ISE80(H)
If the cause of the failure cannot be identified and normal operation can be recovered by replacement with
a new Pressure switch, this indicates that the Pressure switch itself is faulty. Pressure switch damage can
be caused by the operating environment (network construction, etc.), therefore contact SMC.
Yes
No
The Pressure
switch does not
operate correctly
Refer to Fault
No.1
The switch output
is ON
The indicator LED
is ON
The indicator LED
operates incorrectly
The switch output
is OFF
The switch output
is chattering
The indicator LED
is OFF
The indicator LED
is OFF
The indicator LED
is ON
The product is
faulty
Refer to Fault
No.2
Refer to Fault
No.1
Refer to Fault
No.4
Refer to Fault
No.3
The product is
faulty
The product is
faulty
Analogue output is
not provided
(specified accuracy
is not satisfied)
Refer to Fault
No.6
Slow switch
output response
Refer to Fault
No.5
An Error is
displayed
Refer to Fault
No.7
