■Wiring
○Connection
•Connections should only be made with the power supply turned off.
•Use a separate route for the Pressure switch wiring and any power or high voltage wiring. Otherwise,
malfunction may result due to noise.

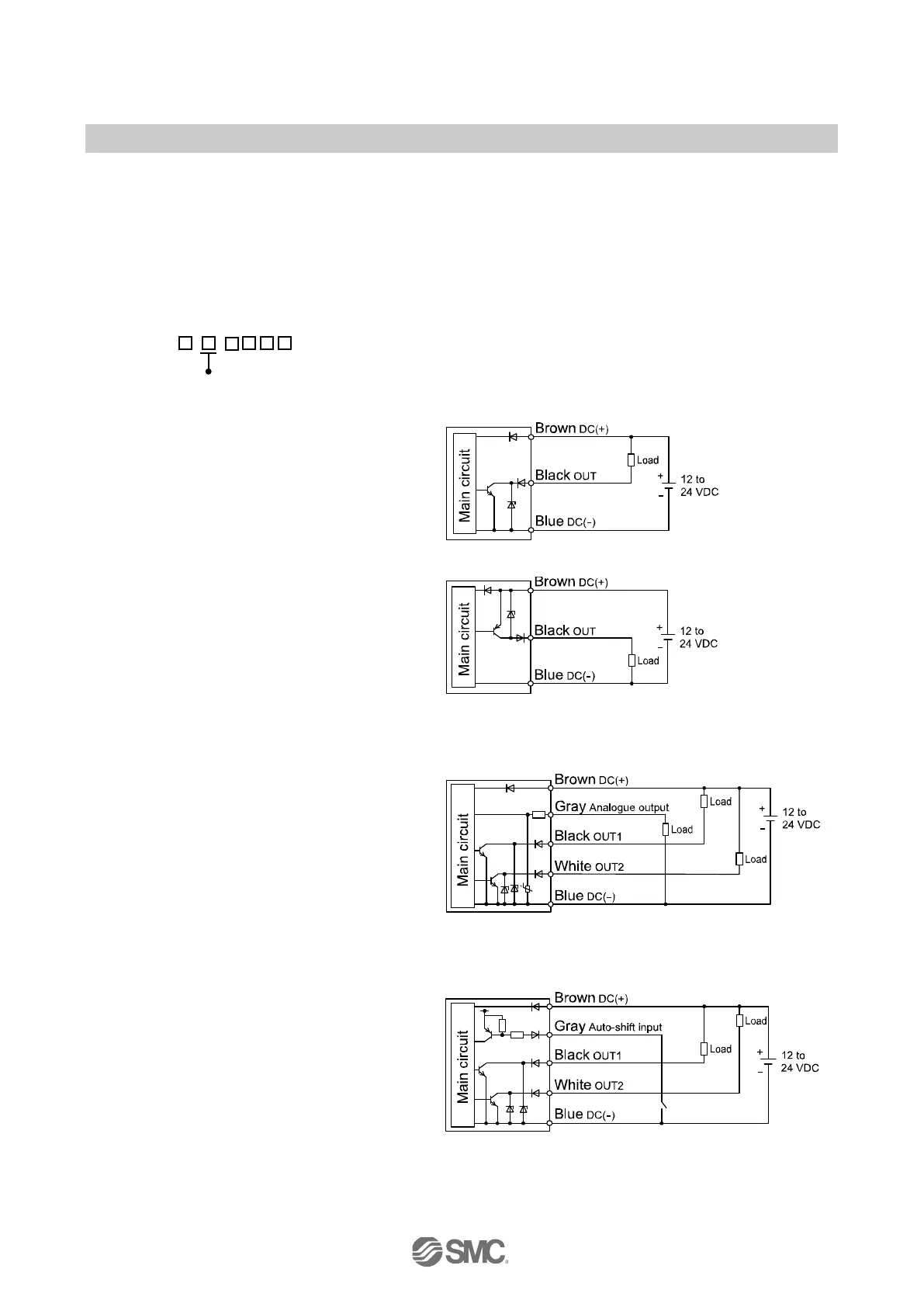

○Internal circuit and wiring example
Z/ISE80- - -
Output specification
-N
NPN open collector output type
Max. 28 V, 80 mA
Residual voltage 1 V or less
-P
PNP open collector output type
Max. 80 mA
Residual voltage 1 V or less
-S/-R
(Analogue output mode)
Switch output
NPN open collector output type 2 output
Max. 28 V, 8 mA
Residual voltage 1 V or less
R: Analogue output 1 to 5 V
Output impedance 1 kΩ
S: Analogue output 4 to 20 mA
Max. load impedance
Power supply voltage 12 V: 300 Ω
Power supply voltage 24 V: 600 Ω
Min. load impedance 50 Ω
-S/-R
(Auto-shift input mode)
With auto-shift switch output
NPN open collector output type 2 output
Max. 28 V, 80 mA
Residual voltage 1 V or less
