-29-
No.PS※※-OMM0003-J
Press the
button to set.
Setting of [F 4] Analogue output/Auto-shift input completed
Conditions and explanations for auto-shift function
•Maintain a constant pressure for 5 ms or longer from the end of the auto-shift input signal.
•At auto-shift input, [ooo] is displayed for approximate 1 second. The measured pressure value at that
time is stored as the corrected value [C_5].
•With the corrected value stored, the set value is compensated.
•The switch output will start within 10 ms of the auto-shift input signal.
•If the measured pressure exceeds the set pressure range during auto-shift input signal, the corrected
value will not be stored and [o.r] is displayed for approximately 1 second.
•If the pressure is within the set pressure range and beyond the set value corrected by auto-shift
(including hysteresis) when the auto-shift input is applied, the set value is corrected to the upper limit or
lower limit (whichever is closer) of the set pressure range automatically. (The correction is performed
when the auto-shift input is applied at the pressure beyond the set pressure range. If the auto-shift input
is applied again at the pressure within the set pressure range, the correction is released and the product
operates according to the set value).
•After completing the pressure setting of OUT2, the corrected value and [C_5] will be displayed in turn.
Press the
button to return to measurement mode.
•The corrected value [C_5] after auto-shift input will disappear when the power is turned off, and will reset
to zero (initial value) when the power is returned.
∗: The EEPROM is not used for the memory corrected value.
Using the Auto-shift input, the acceptable set range is as follows:

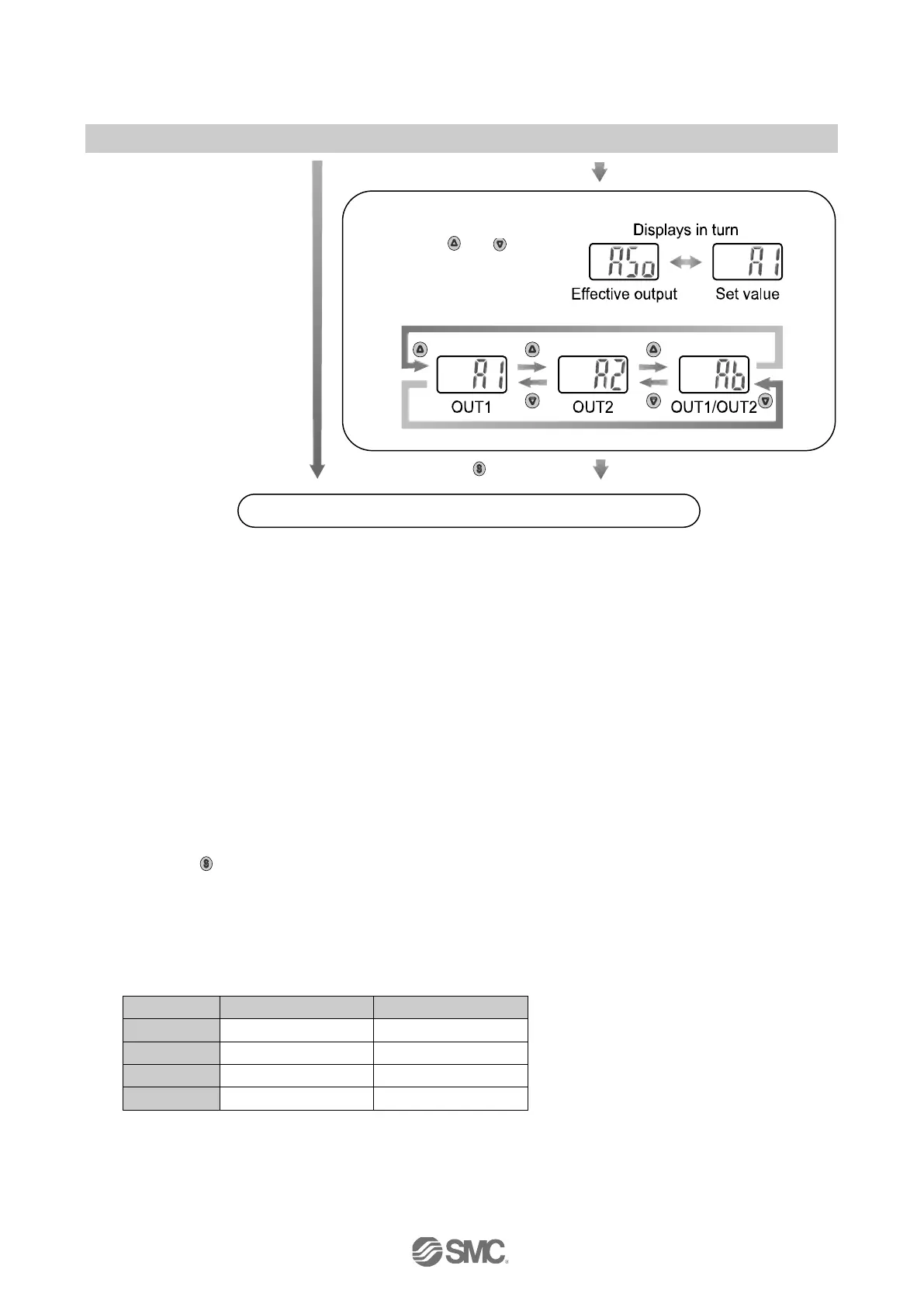

Setting of effective output
Press the or button to
select effective output.
Return to function selection
mode.
To Next Page
