SMC Networks PF3A801H-L User Manual

-102-
No.PF※※-OMY0005

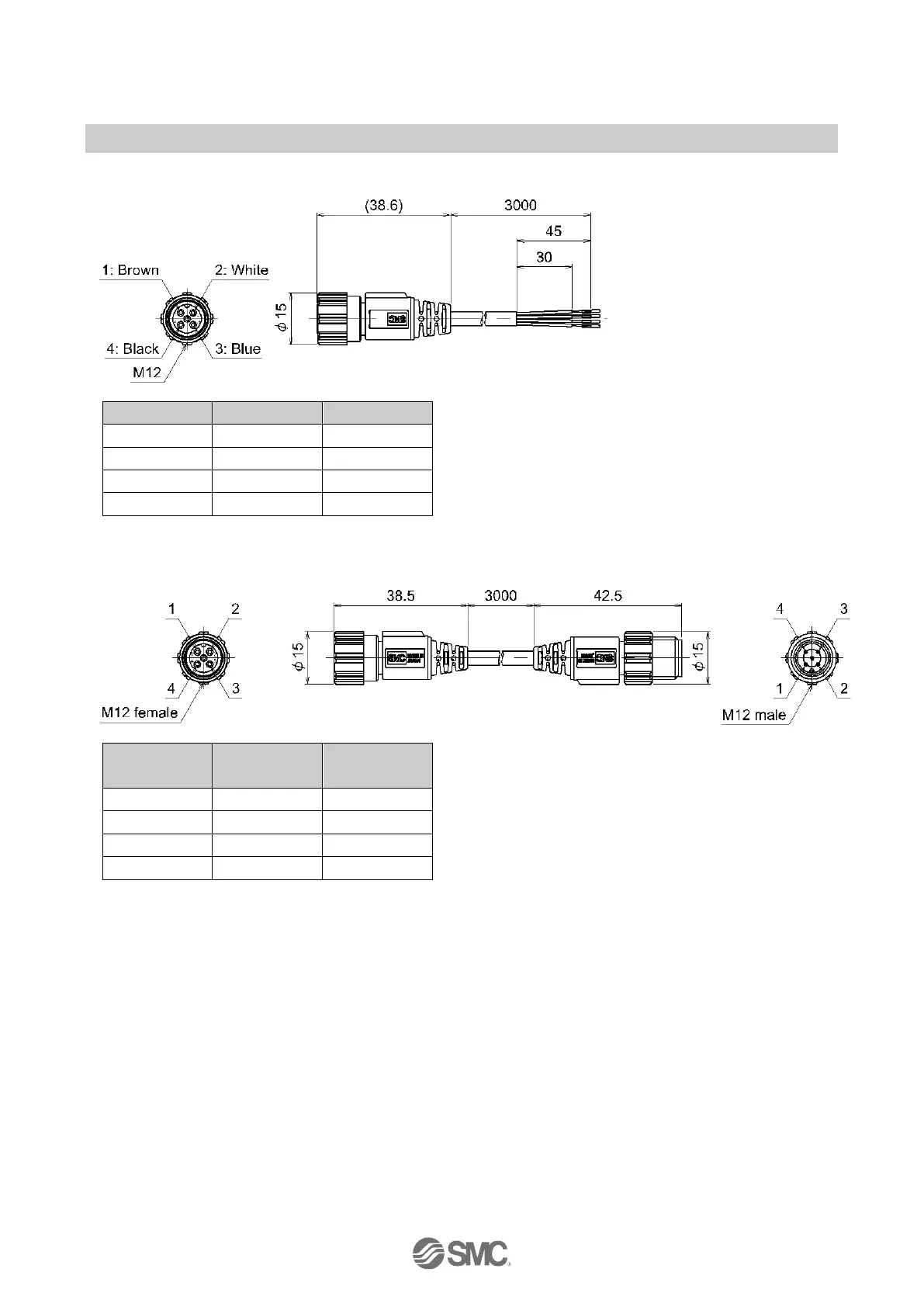

Lead wire with M12 connector (ZS-37-A)
Pin number
Description
Colour
1
DC(+)
Brown
2
FUNC
White
3
DC(-)
Blue
4
OUT
Black
: 4-wire lead wire with M12 connector for PF3A series.
Lead wire with M12 connector (ZS-49-A)
M12 female
Pin number
Description
M12 male
Pin number
1
L+
1
2
N.C. or DO
2
3
L -
3
4
C/Q
4
