■Piping

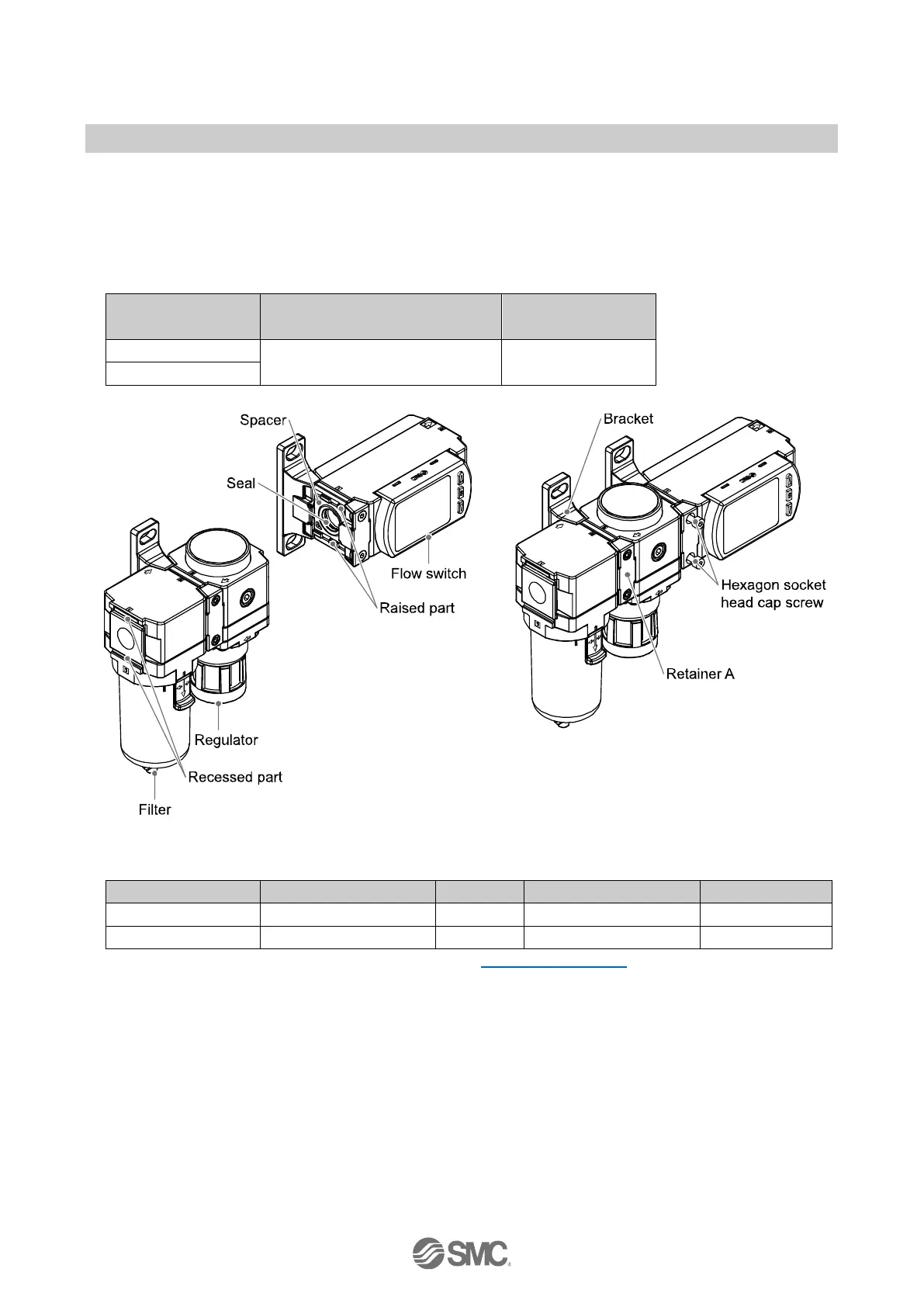

•Fit the raised part of the spacer to the recessed part (groove for the raised part) of the product.
•Tighten the retainer A with two hexagon socket head cap screws temporarily.
•Tighten the two hexagon socket head cap screws with a hexagonal wrench evenly.
Refer to the control items shown below for the tightening torque for the screws.
Control items
Applicable model
Hexagonal wrench socket size
Tightening torque
Nominal value
PF3A801H
3
1.2±0.05 Nm
PF3A802H
•The following options are required for coupling with modular F, R, and L combinations. They are separately
prepared by the user.
Digital flow switch
Air combination
Spacer
Spacer with bracket
Pipe adapter
PF3A801H
AC30#-D
Y300-D
Y300T-D
E300-#03-D
PF3A802H
AC40#-D
Y400-D
Y400T-D
E400-#04-D
: For more information about the options, refer to our website (URL https://www.smcworld.com).
