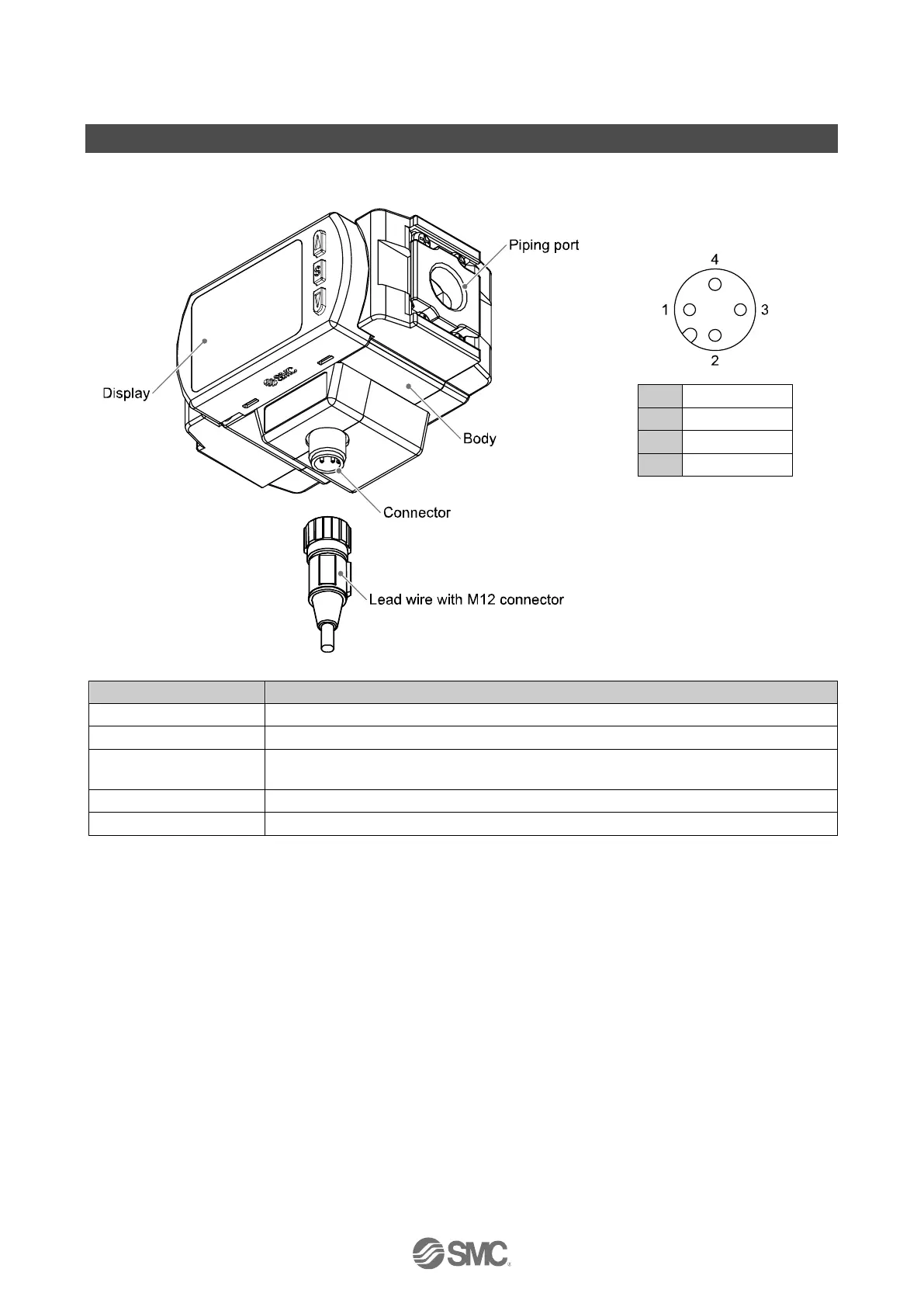

Names and Functions of Individual Parts
Body
Connector pin numbers
(on the product)
1
DC(+)
2
OUT2
3
DC( - )
4
OUT1 (C/Q)
Element
Description
Display
Refer to the Display on the next page.
Connector
M12 4-pin connector for electrical connections.
Lead wire with
M12 connector
Lead wire for power supply and outputs.
Piping port
For piping connections.
Body
The body of the product.
