SMC Networks PF3A801H-L User Manual

-13-
No.PF※※-OMY0005

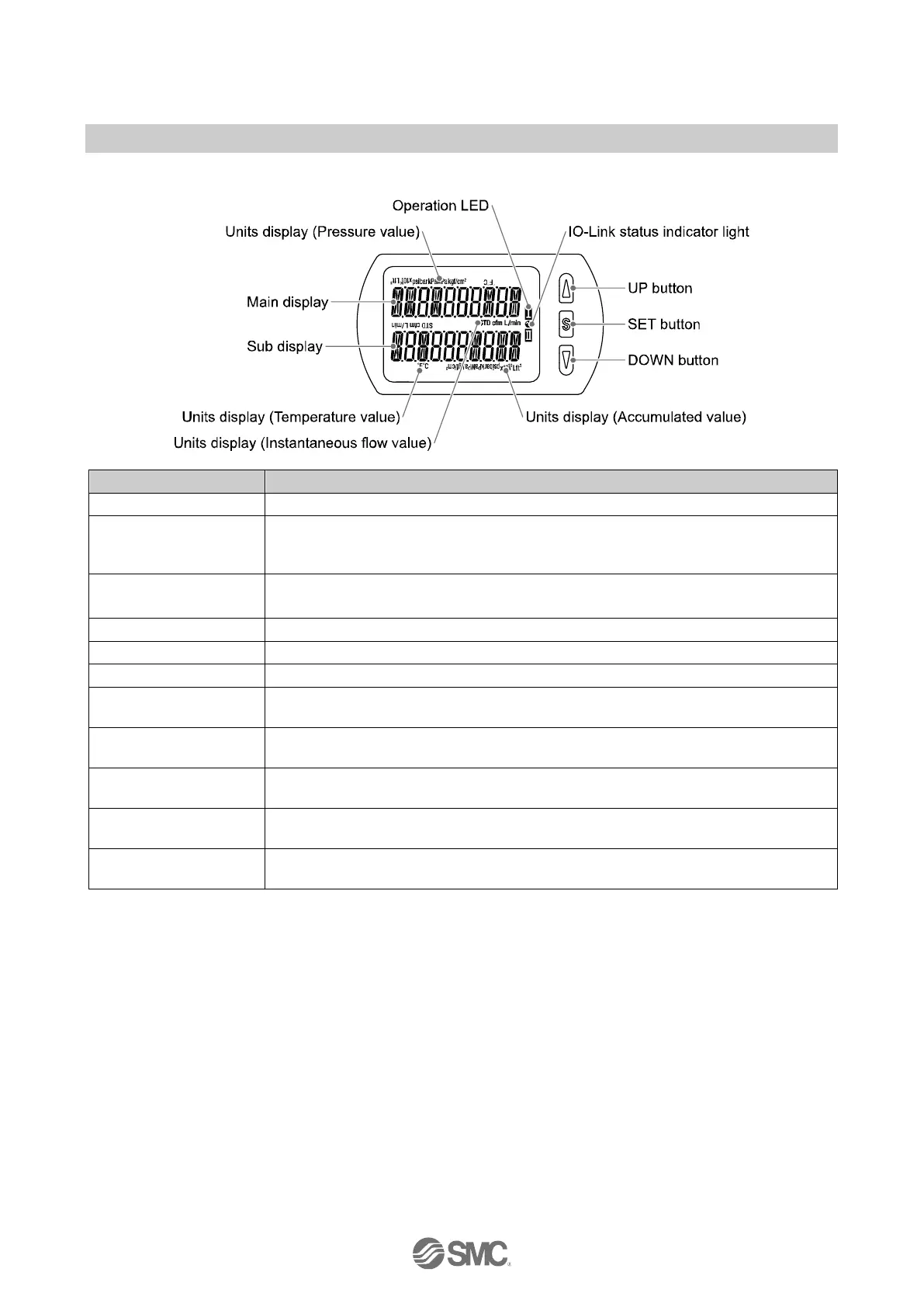

Display
Element
Description
Main display
Displays the instantaneous flow value, pressure value and error codes. (2 colour display)
Operation LED
Indicates the output status of OUT.
When the output is ON: Orange LED is ON.
When the accumulated pulse output mode is selected, the output display will turn off.
Sub display
Displays the accumulated flow, temperature value, set value, and peak/ bottom value when
in measurement mode.
UP button
Selects the mode and the display shown on the Sub display, or increases the switch point.
SET button
Press this button to change the mode and to set a value.
DOWN button
Selects the mode and the display shown on the Sub display, or decreases the switch point.
Units display
(Instantaneous flow value)
Indicates the flow measurement units currently selected.
Units display
(Accumulated value)
Indicates the flow measurement units currently selected.
Units display
(Pressure value)
Indicates the flow measurement units currently selected.
Units display
(Temperature value)
Indicates the flow measurement units currently selected.
IO-Link status indicator
light
LED is ON when OUT1 is used in IO-Link mode. (LED is OFF in SIO mode)
