-14-
No.PF※※-OMY0005

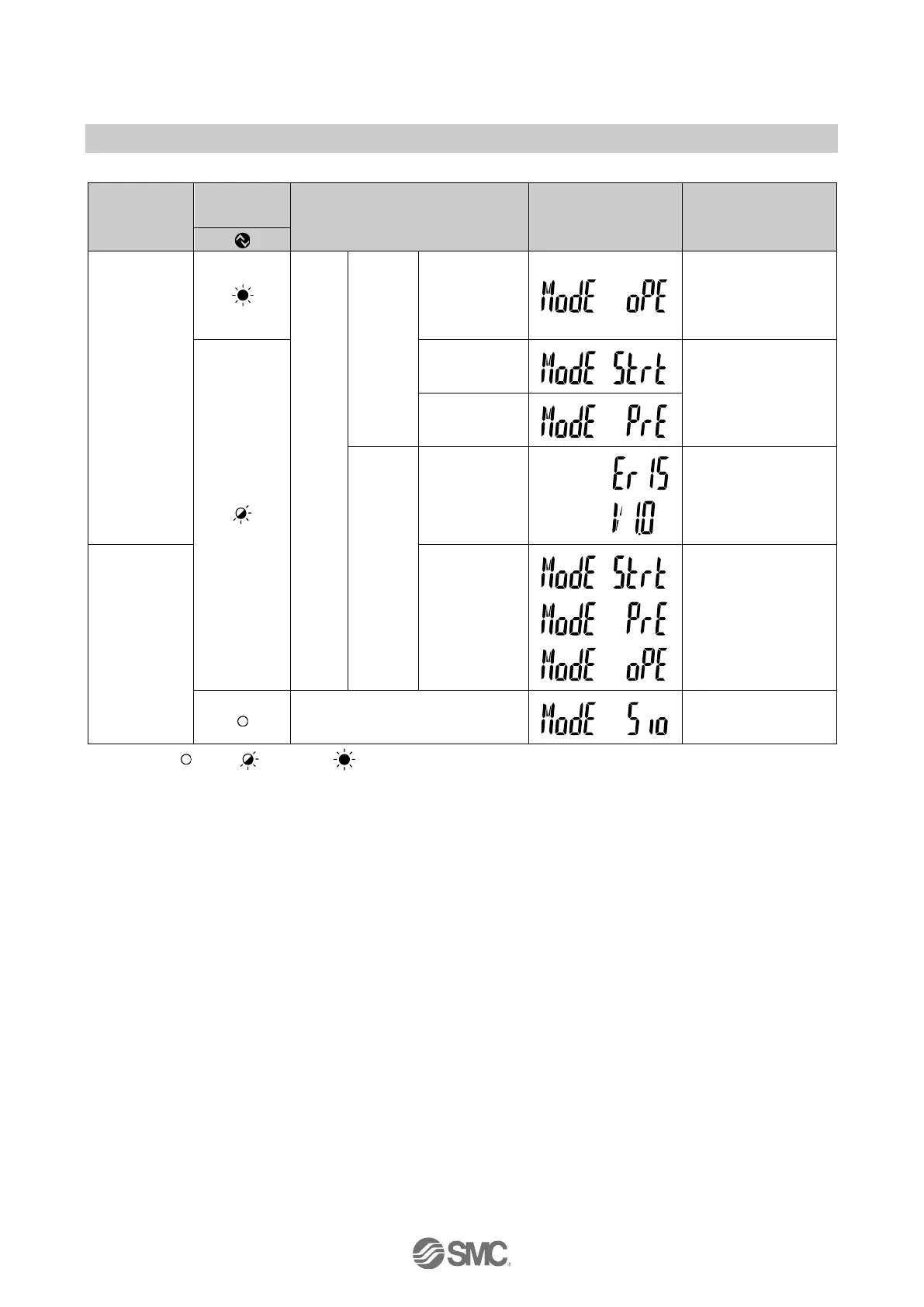

●IO-Link indicator light operation and display
Communication
with master
IO-Link status
indicator light
Status
Main screen display
1
Content
Yes
IO-Link
mode
Correct
Operate
Normal communication
status
(Reading of
measured value)
Start up
When communication
starts up.
Preoperate
Abnormal
Version does
not match
Version of master and
IO-Link does not match
2
No
Communication
shut-off
Correct communication
was not received for
1 second or more.
SIO mode
General switch output
LCD display: " " OFF, " " Flashing, " " ON
1: "ModE - - -" is displayed when selecting the modes on the main screen.
2: When the product is connected to the IO-Link master with version other than "V1.1", an error is generated.
