SMC Networks PF3A801H-L User Manual

-60-
No.PF※※-OMY0005
■[F98] Setting of output check
By forcibly switching the output ON / OFF operation by the button operation, the operation of the system can
be checked regardless of the measured value.
<Operation>
Display [F98] by pressing UP or DOWN button in function selection mode.
Press the SET button. Move on to select of output check.

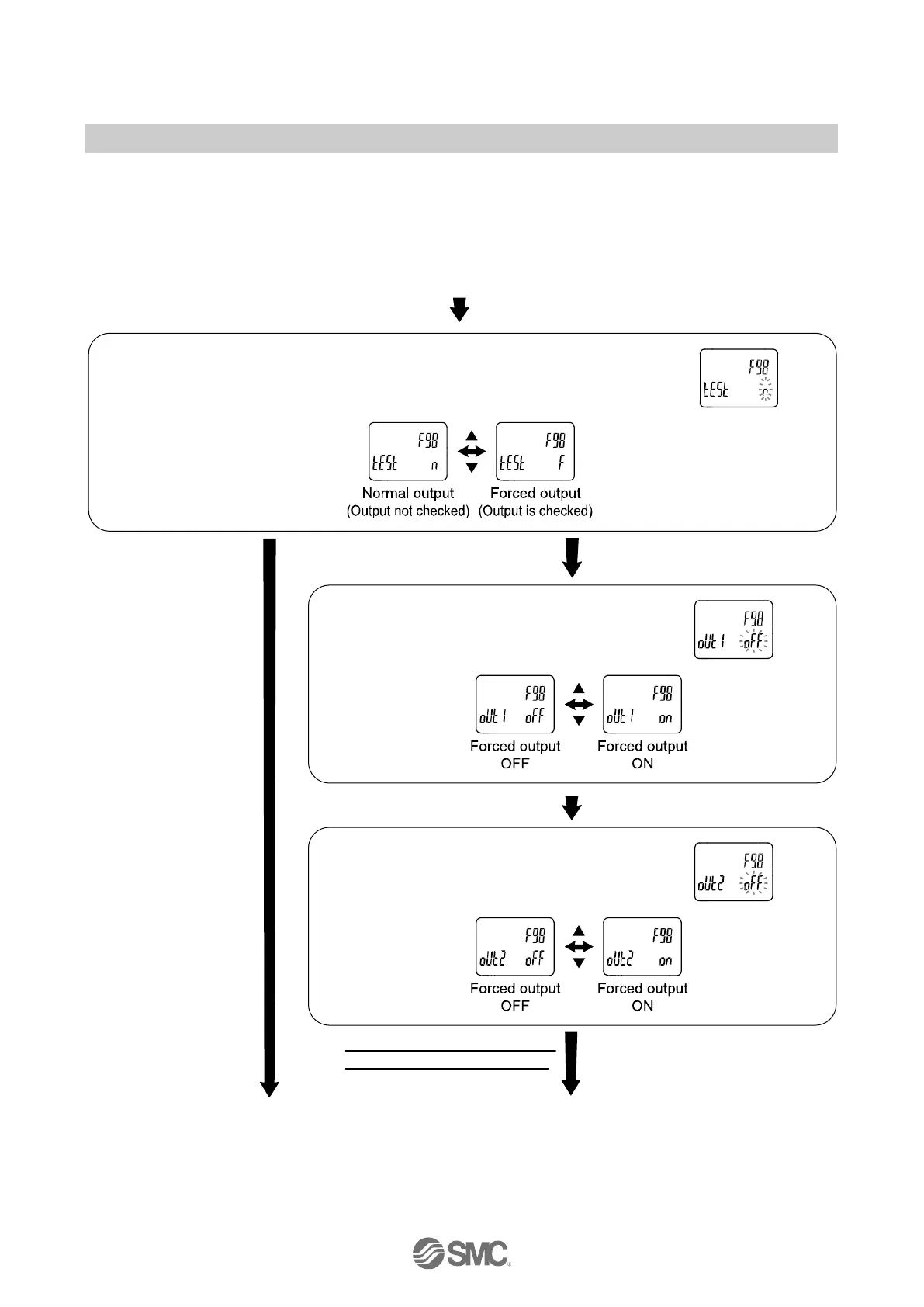

Select of output check
Press the UP or DOWN button to select the output check.
Move on to output check of OUT1.
Output check of OUT1
Press the UP or DOWN button to select
output check of OUT1.
Press the SET button to set. Move on to output check of OUT2.
Output check of OUT2
Press the UP or DOWN button to select
output check of OUT2.
[F] (Forced output) is selected.
Press the SET button to set.
[n] (Normal output) is
selected.
Press the SET button
to set.
Return to function
selection mode.
[F 0] When accumulated pulse
output is selected for (OUT1).
Press the SET button to set.
Move on to pulse output check
of OUT1.
