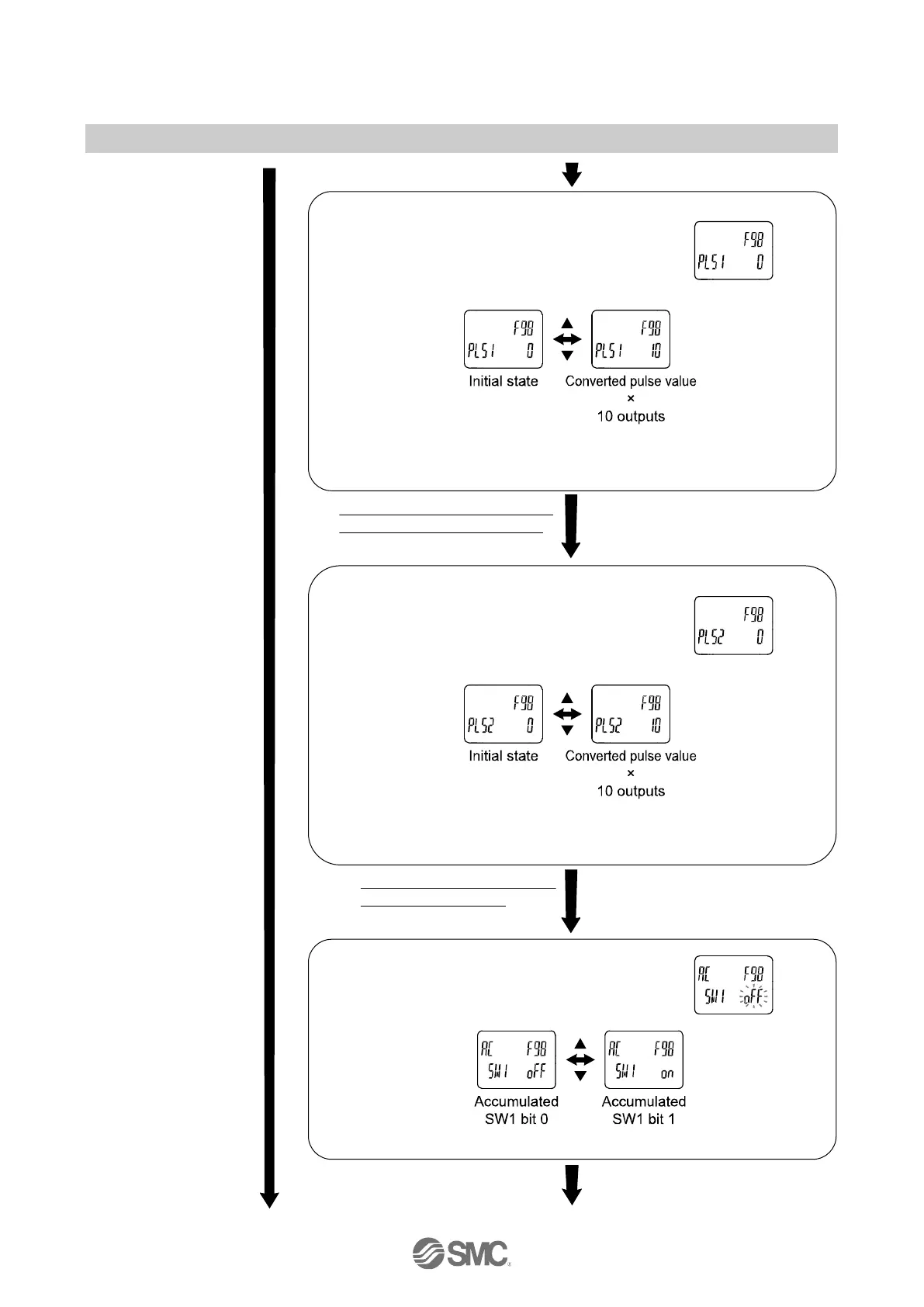

Check of OUT1 accumulated pulse output
Accumulated pulse is output for 10 times
by pressing the UP button.
Accumulated pulse conversion value is cleared
and stopped by pressing the DOWN button.
: When the converted pulse value is 10 L/pulse, the value is changed between 0 and 100
by pressing the UP button once (total of 10 times of output). If the UP button is pressed
again, the value is changed to 100 to 200.
Check of OUT2 accumulated pulse output
Accumulated pulse is output for 10 times
by pressing the UP button.
Accumulated pulse conversion value is cleared
and stopped by pressing the DOWN button.
: When the converted pulse value is 10 L/pulse, the value is changed between 0 and 100
by pressing the UP button once (total of 10 times of output). If the UP button is pressed
again, the value is changed to 100 to 200.
PD Accumulated SW1 bit check
Select the accumulated SW1 bit check by
pressing the UP or DOWN button.
: This function is available with IO-Link communication.
Press the SET button to set.
[F 0] When accumulated pulse
output is selected for (OUT2).
Press the SET button to set.
When the product is used in
SDCI mode (IO-Link)
Press the SET button to set.
Move on to pulse output check
of OUT2.
Move on to PD Accumulated
SW1 bit check.
Move on to PD Accumulated
SW2 bit check.
