-25-
No.PF※※-OMY0005

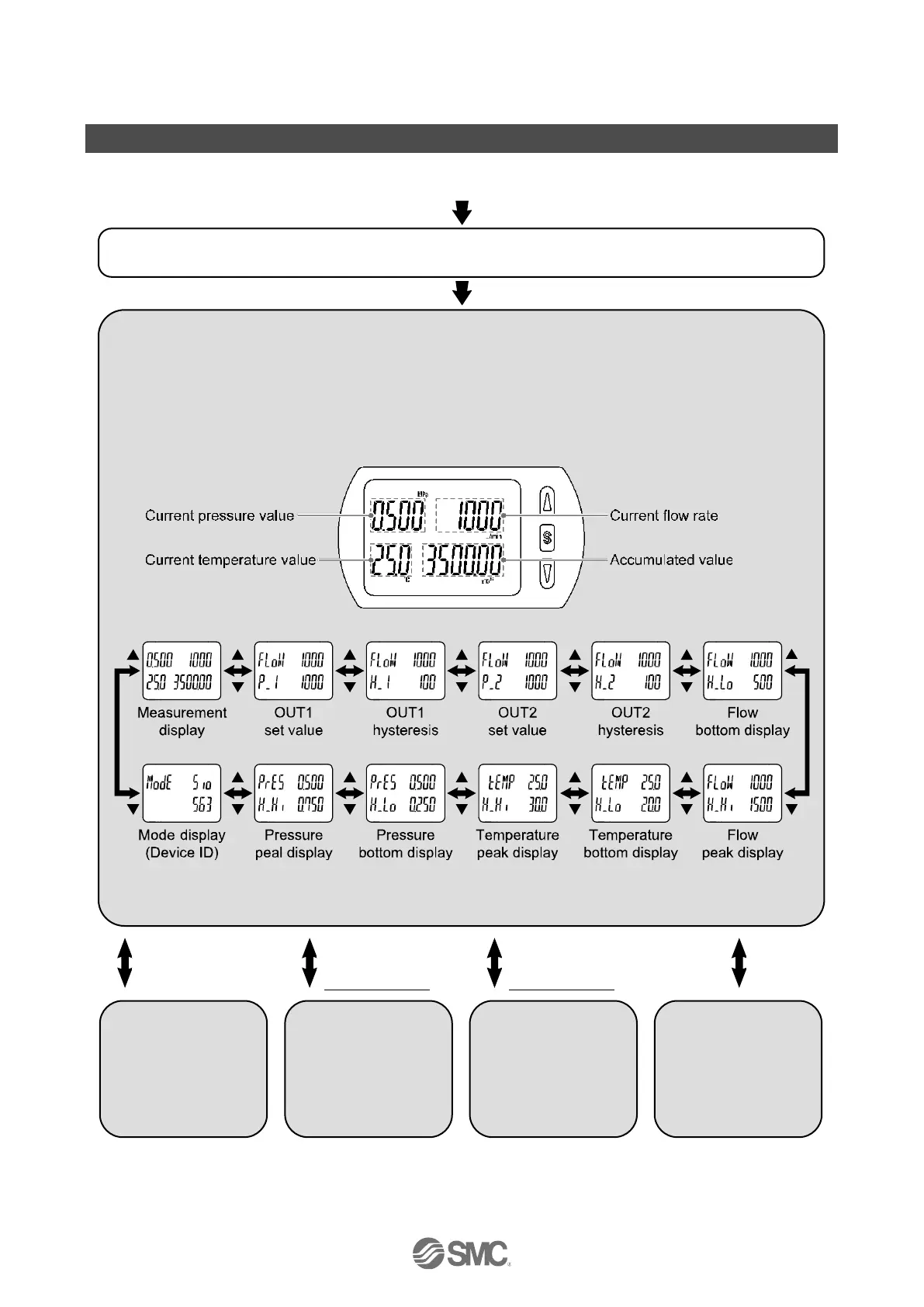

Outline of Settings [Measurement mode]
Power is supplied.
The output will not operate for 3 seconds after supplying power.
The identification code of the product is displayed.
[Measurement mode]
Measurement mode is the condition where the flow, pressure, and temperature are
detected and displayed, and the switch function is operating.
This is the basic mode; other modes should be selected for set-point changes and other
function settings.
Measurement mode screen
In measurement mode, the display can be changed by pressing the UP or DOWN button.
: The example shown is for the 2000 L/min type.
: Flow rate, pressure, temperature, accumulated, pulse output, error output, and output OFF cam be selected for setting
OUT1 and OUT2.
Press SET button
once.
Press the
SET button for
1 to 3 seconds.
Press the
SET button for
3 to 5 seconds.
Change of Set
Value
(3 step setting mode)
(Refer to page 26)
Change of Set
Flow and
Hysteresis
(Simple setting mode)
(Refer to page 29)
Change the
Function
Settings
(Function selection
mode)
(Refer to page 31)
Other Settings
(Refer to page 69)
: The outputs will continue to operate during setting.
 If a button operation is not performed for 3 seconds during the setting, the display will flash. (This is to prevent the setting from
remaining incomplete if, for instance, an operator were to leave during setting.)
 3 step setting mode, simple setting mode, and function selection mode settings will reflect on each other.
