-24-
No.PF※※-OMY0005

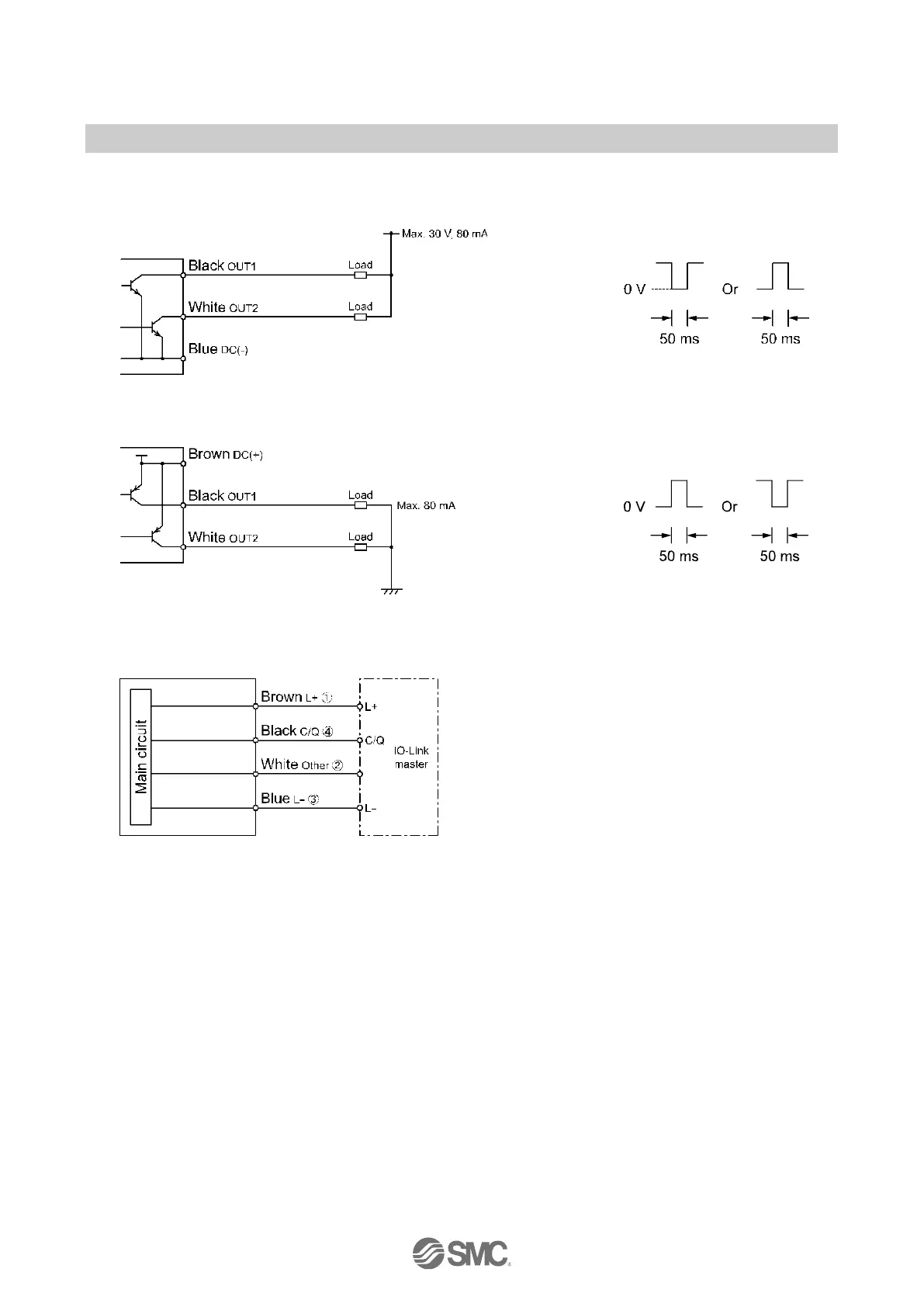

Example of wiring for accumulated pulse output
NPN type
PNP type
Used as IO-Link device
: Numbers in the figures show the connector pin layout.
