SMC Networks PF3A801H-L - Internal Circuit Diagrams

-23-
No.PF※※-OMY0005

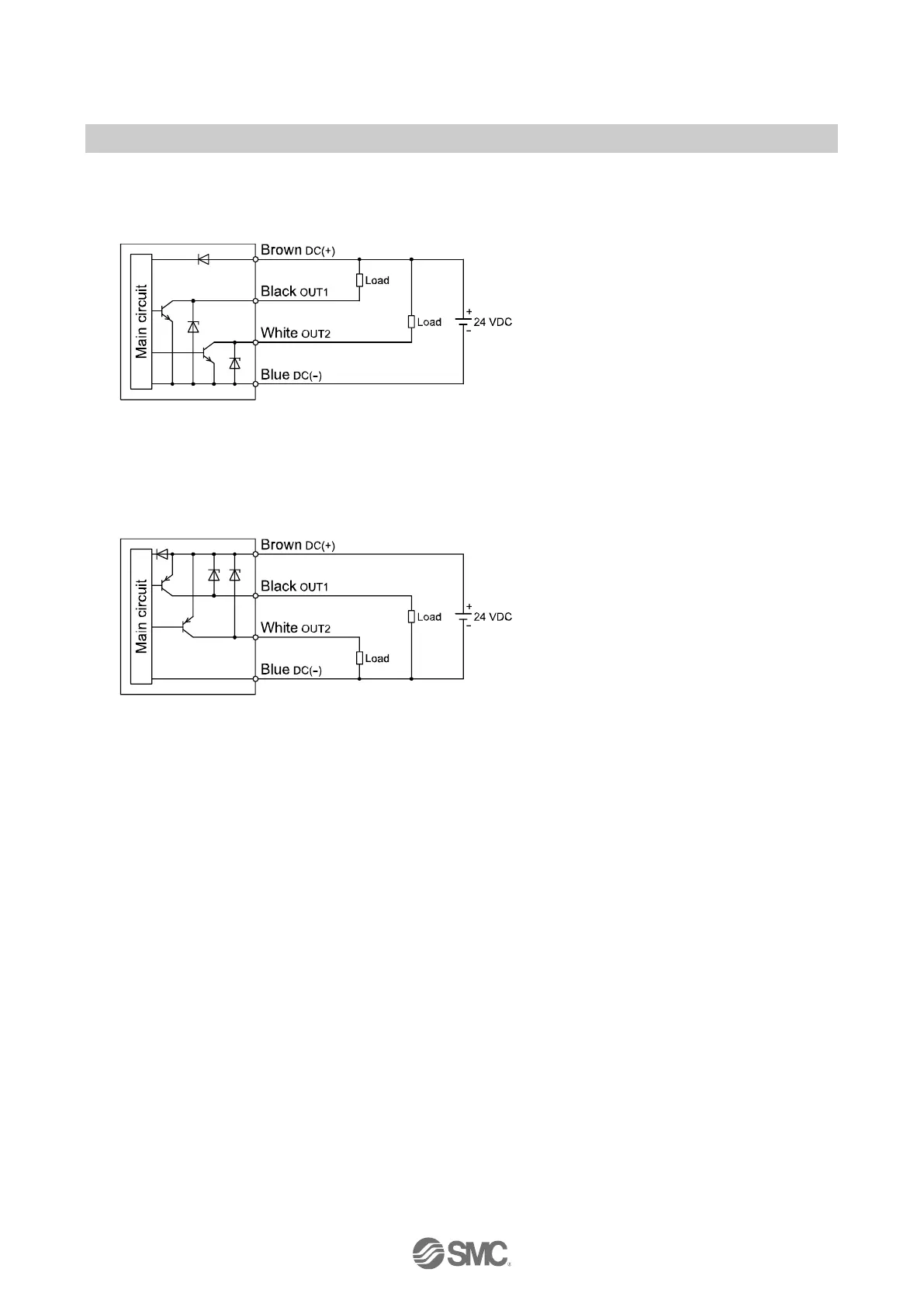

Internal circuit and wiring examples
PF3A8##H-L2#-##-#
NPN type
Maximum applied voltage: 30 V
Maximum load current: 80 mA
Internal voltage drop: 1.5 V or less
PF3A8##H-L2#-##-#
PNP type
Maximum load current: 80 mA
Internal voltage drop: 1.5 V or less
