No.PF※※-OMY0005

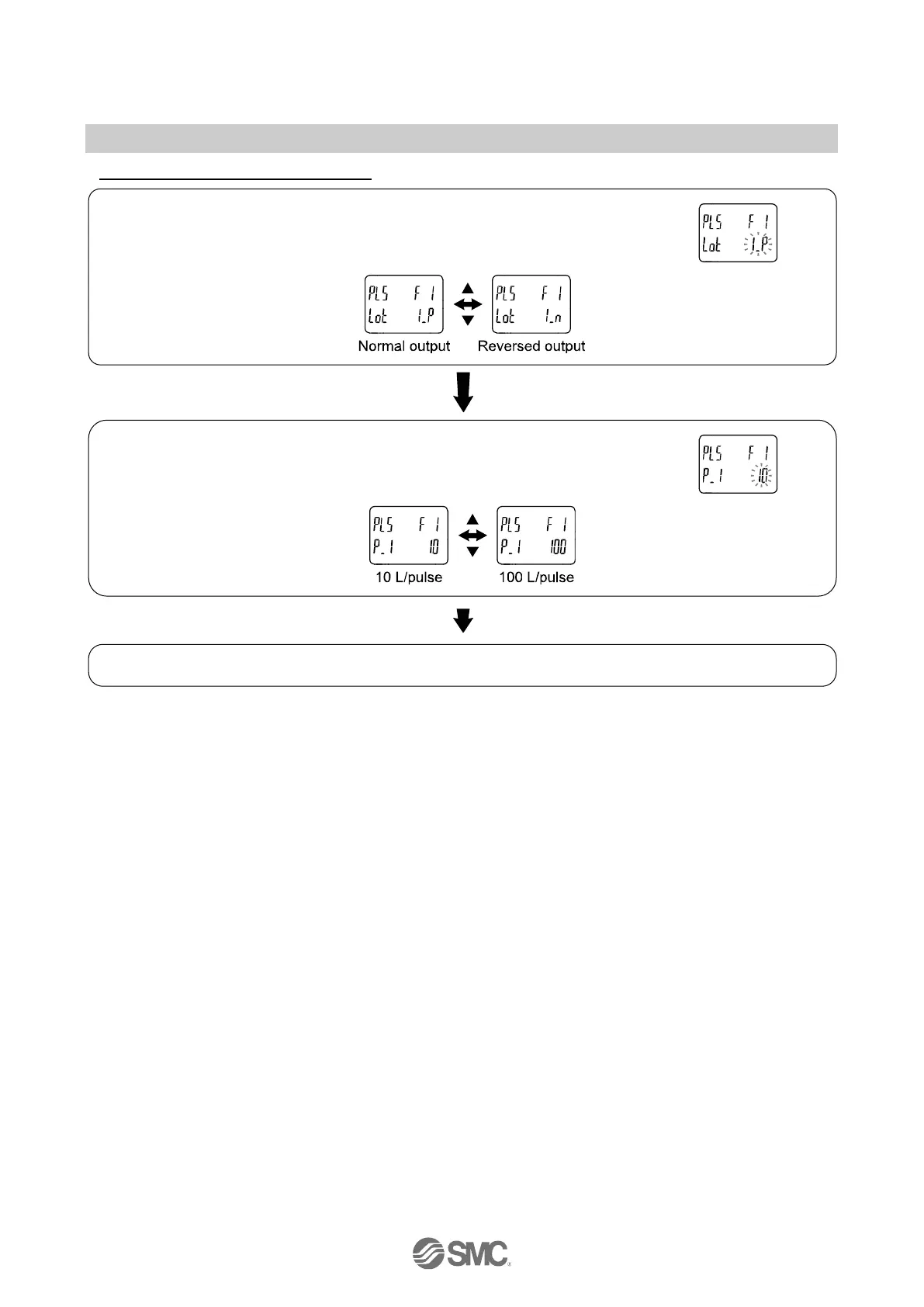

c. Accumulated pulse output is selected
Reversed output setting
Press the UP or DOWN button to select reversed output.
Press the SET button to set.
Select accumulated pulse output
Press the UP or DOWN button to select accumulated pulse output.
Press the SET button to set. Return to function selection mode.
[F 1] Setting of OUT1 completed
Move on to setting of accumulated pulse
output value.
