SMC Networks PF3A801H-L - Checking Flow Rate Diagnosis Bit; Checking Temperature Diagnosis Bit; Checking Pressure Diagnosis Bit

-65-
No.PF※※-OMY0005

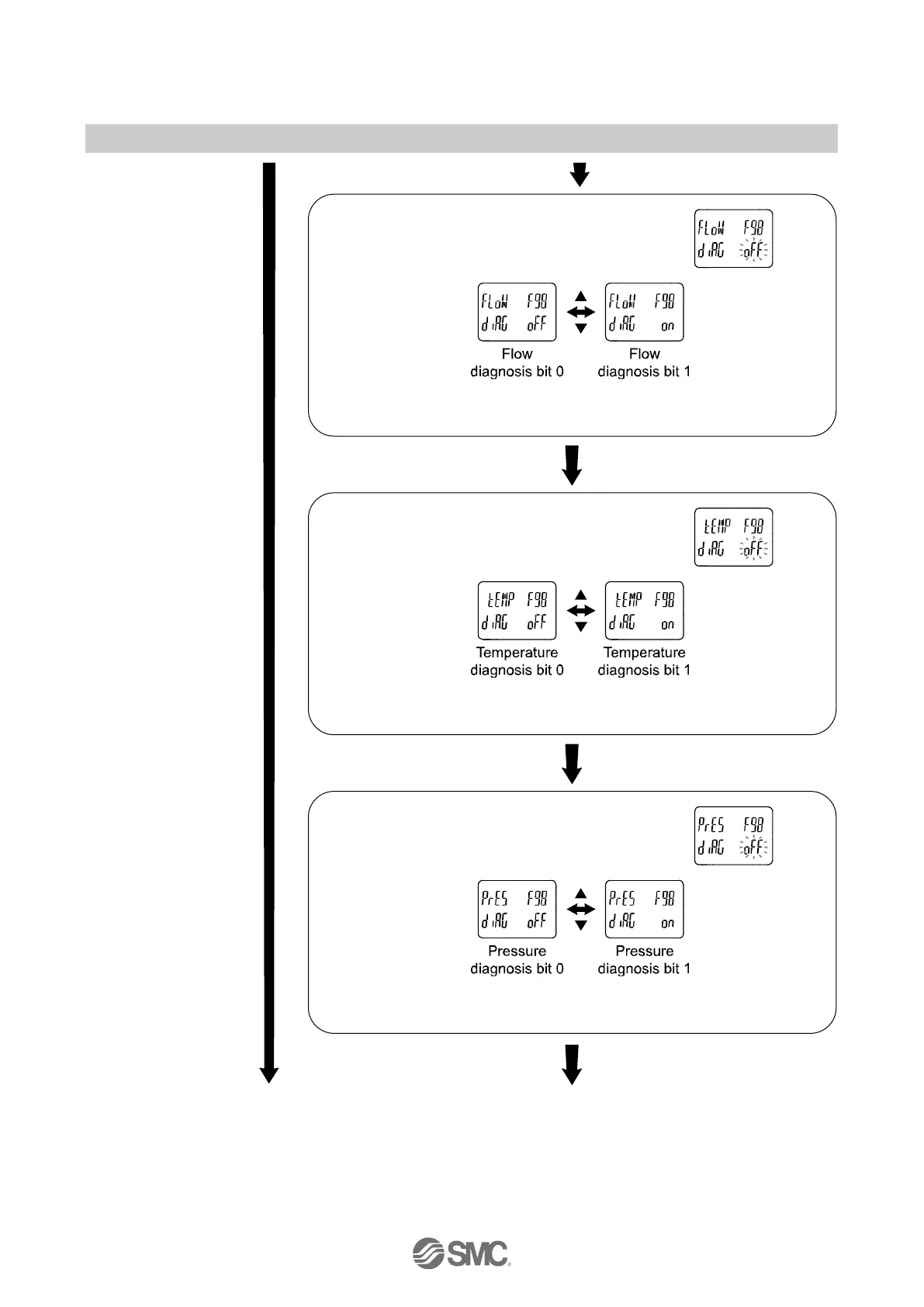

PD Flow rate diagnosis bit check
Select the flow rate diagnosis bit check by
pressing the UP or DOWN button.
: This function is available with IO-Link communication.
: For details of the diagnosis information refer to page 74.
Press the SET button to set.
PD Temperature diagnosis bit check
Select the temperature diagnostic bit check
by pressing the UP or DOWN button.
: This function is available with IO-Link communication.
: For details of the diagnosis information refer to page 74.
Press the SET button to set.
PD Pressure diagnosis bit check
Select the Pressure diagnosis bit check by
pressing the UP or DOWN button.
: This function is available with IO-Link communication.
: For details of the diagnosis information refer to page 74.
Press the SET button to set.
Move on to PD Error diagnosis bit
check.
Move on to PD Temperature
diagnosis bit check.
Move on to PD Pressure
diagnosis bit check.
