○Measurement/setting range
Measured object
Range
Rated range
Display/settable range
Min.
to
Max.
Min.
to
Max.
Flow rate
1,000 L/min
10
to
1000
10
to
1050
2,000 L/min
20
to
2000
20
to
2100
Temperature
50
o
C
0
to
50.0
-10.0
to
60.0
Pressure
1 MPa
0
to
1.000
-0.050
to
1.050
Accumulated flow
9,999,999,990 L
0
to
9,999,999,990
0
to
9,999,999,990
Measured object
Range
PD value
Rated range
Display/settable range
A
to
B
C
to
D
Flow rate
1,000 L/min
40
to
4000
40
to
4200
2,000 L/min
40
to
4000
40
to
4200
Temperature
50
o
C
0
to
500
0
to
600
Pressure
1 MPa
0
to
1000
0
to
1050
Accumulated flow
9,999,999,990 L
0
to
999999999
0
to
999999999

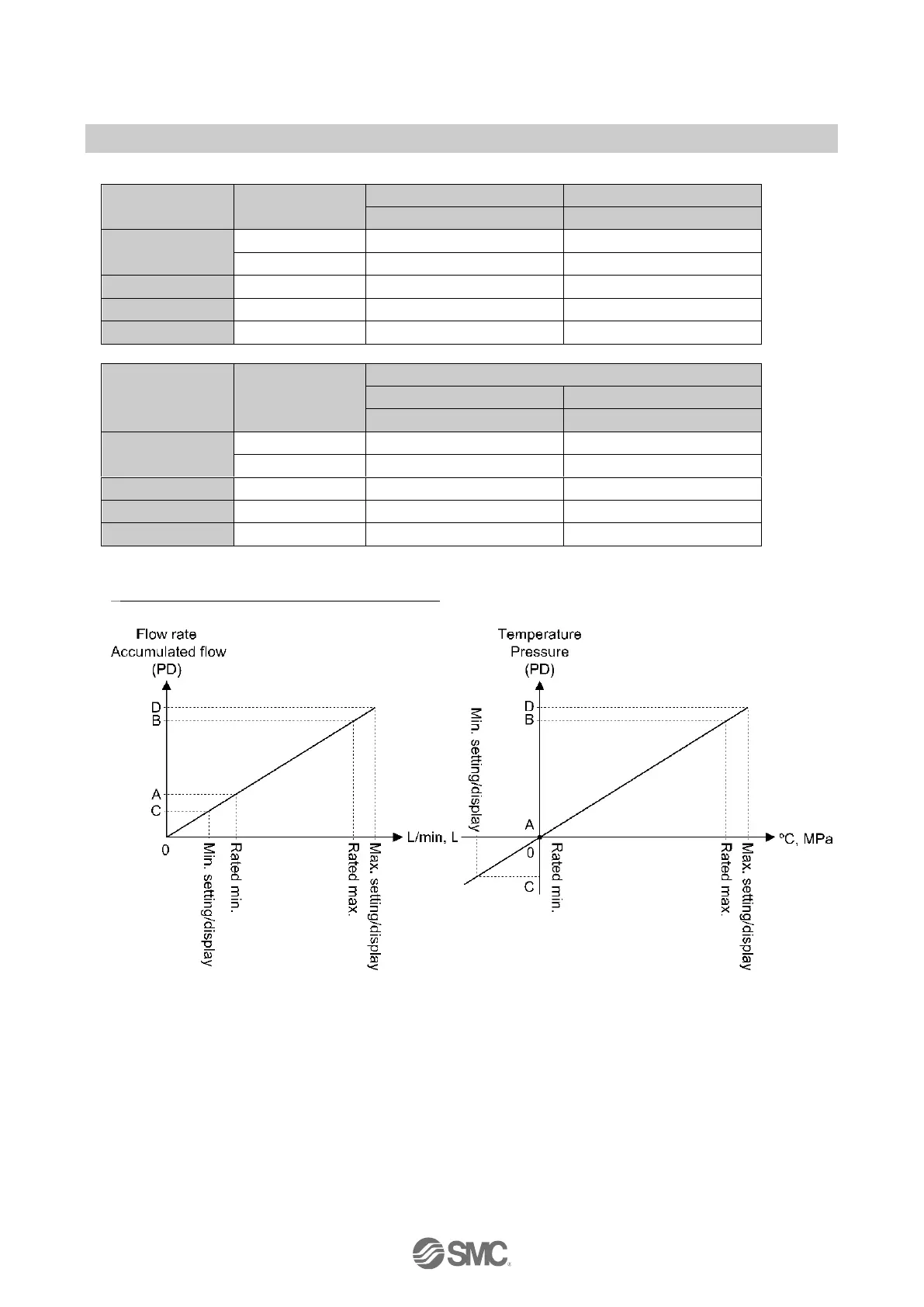

: The flow ranges and relationship between the fluid and PD are shown in the figures below.
●Relationship between measured value and PD
