DESCRIPTION
The PME-500-TR is an extraordinary
advance in the concept of circuit breaker
test equipment, due to a simple and easy
control method. The equipment saves
testing time and improves testing
productivity.
The control of the equipment is by a touch
screen panel. This allows test parameters
to be entered and gives a visual display
of the test results in graphic and numeric
format. A built-in thermal printer enables
test results to be printed immediately.
The PME-500-TR can be connected to a
voltage supply between 100 and 240V.
The unit is also supplied with internal rechargeable
batteries that have 10 hours operation time, allowing to
test breakers, without the need of a voltage supply.
The equipment is provided with special test leads that have
a multi-pole connector. It is possible to measure the contact
resistance of each main pole automatically, with a test
current of 10 A and a resolution of 0.1 µΩ.
All connection elements are located on the front panel. The
test connection inputs are duplicated, as the equipment is
supplied with special testing cable leads and there are also
4 mm input taps, in which any other cable can be used.
The software EuroBreaker Basic is supplied with the
equipment. This software enables to download test results
stored in the unit. The software also enables printing test
results from the PC.
All the features contained in the equipment, such as manual
control via the touch screen panel, an internal battery
supply, a built-in printer and having a clear and easy
to operate system, makes the PME-500-TR the most
advance equipment within its category to test
circuit breakers.
The unit is enclosed in an airtight waterproof case.

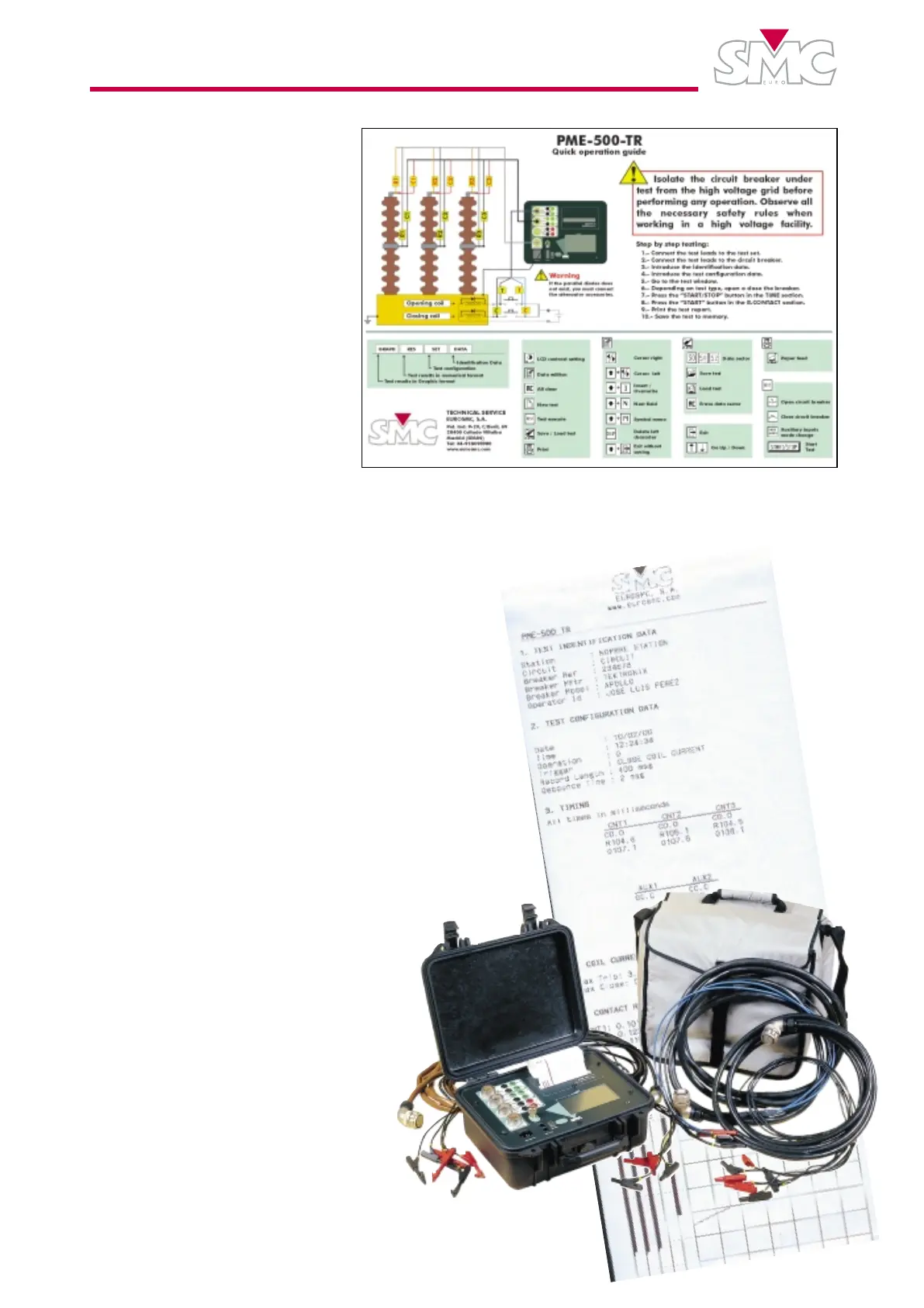

An easy to follow fast guide is incorporated in the lid of the front cover.
Equipment with the standard
accessories supplied.
Test results from
the printer
incorporated
in the equipment.
