Smipack SL55 - Machine Installation; Description of Machine Components; Weight and Dimensions of Packed Machine

S L series - Use and maintenance manual
13
Translation from the original

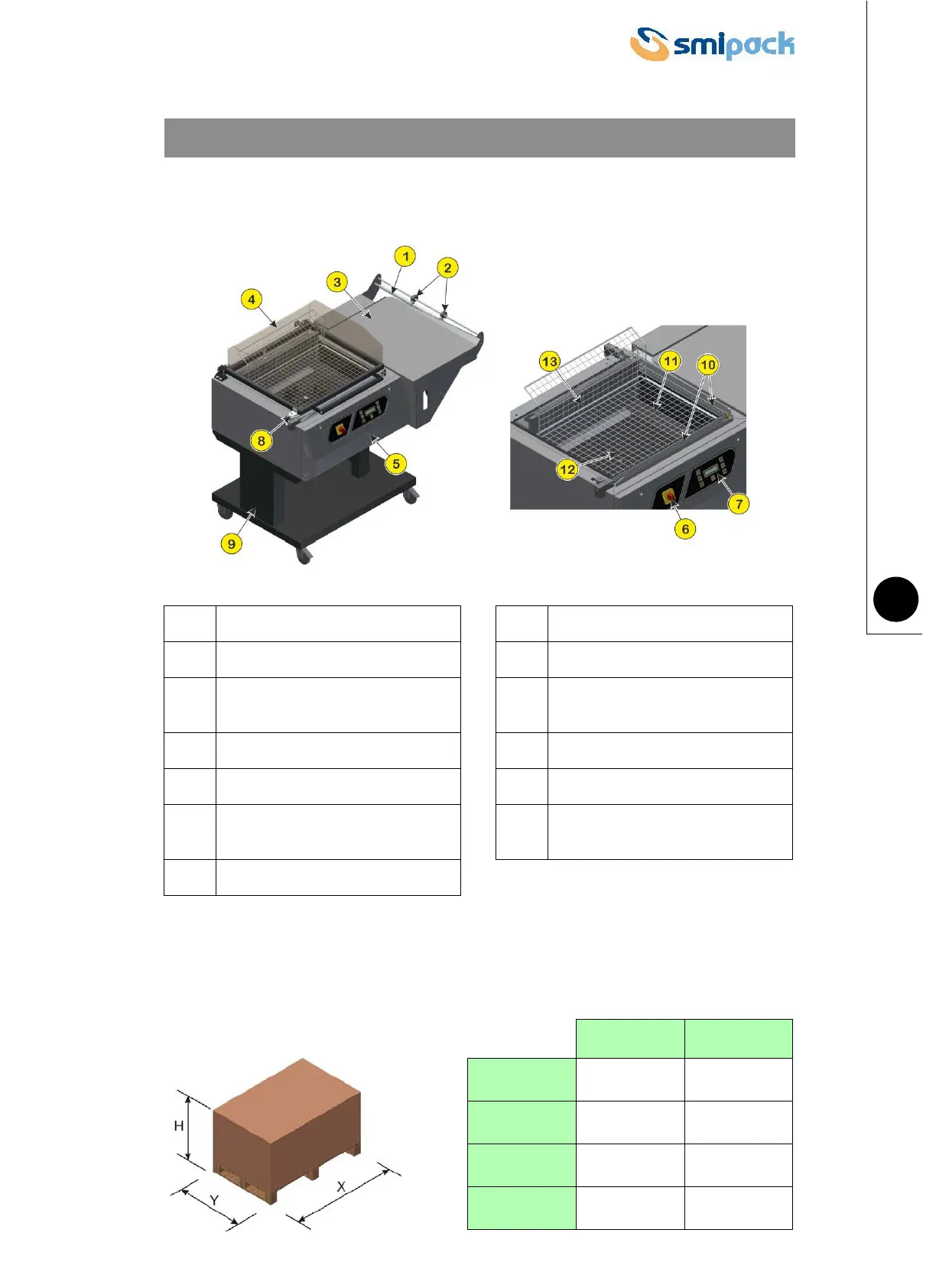

2.1 DESCRIPTION OF MACHINE COMPONENTS
2.2 WEIGHT AND DIMENSIONS OF PACKED MACHINE
1
REEL HOLDER
8
ELECTROMAGNET
2
FILM PERFORATORS
9
TROLLEY (optional)
3
INFEED PRODUCT-HOLDING
PLATE
10
SEALING BLADE
4
HOOD
11
OUTFEED PRODUCT DOOR
5
POWER BOARD
12
HEAT-SHRINKING FAN
6
MASTER SWITCH
13
HEATING ELEMENTS (OVEN
ZONE)
7
OPERATOR PANEL
SL45 SL55
X (mm) 1140 1330
Y (mm) 760 910
H (mm) 680 770
WEIGHT (kg) 85 108
CHAPTER 2 - MACHINE INSTALLATION
Fig. 2.1.1
Fig. 2.2.1
