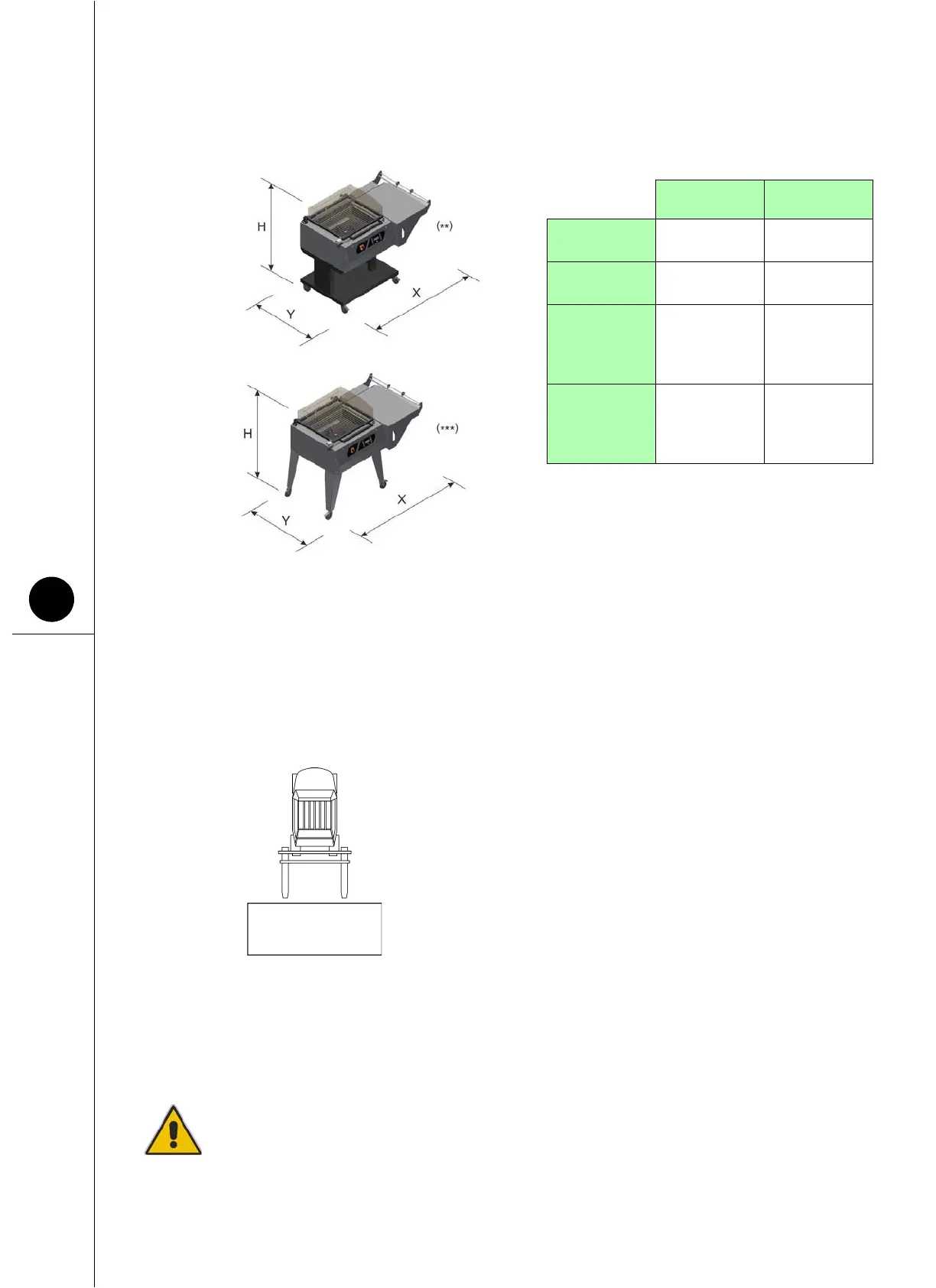

2.3 MACHINE WEIGHT AND DIMENSIONS
* without trolley
** with machine holding trolley
*** with machine supports
2.4 TRANSPORTATION AND UNPACKING
SMIPACK S.p.A., depending on the type of transportation and products to be delivered, uses
adequate packaging to guarantee integrity and preservation during transportation. Handle with
care when transporting and positioning the machine. The carrier is liable for damage sustained
during transportation. Be careful not to damage the exposed parts when unpacking the unit.
The machine module must be handled from beneath. Due to the type of packaging, systems
that work from above cannot be used. Lift the machine in the middle from the longest side and
adjust the position of the lift forks at the greatest centred position possible.
ATTENTION!
Before handling, always make sure that the lifting device is suitable to lift the load.
For prolonged storage, place the machine in a covered area at a temperature ranging from -
15 °C to +55 °C, with a humidity degree between 30% and 90% without condensation.
SL45 SL55
X (mm) 1050 1240
Y (mm) 665 805
H (mm)
480 *
1029 **
1015 ***
565 *
1102 **
1100 ***
WEIGHT (kg)
60 *
75 **
71 ***
77 *
95 **
88 ***
