4.1 POSITIONING REEL AND FILM PASSAGE
• Insert the film reel in the reel holder 1 blocking it with the self-centring tapered supports 2.
• Pass the film through the perforators 3.
• Pass the lower edge of the film below the packaging plate 4 and the upper edge above at.
4.2 ADJUSTING FILM PERFORATORS
The amount of perforators to be used depends on the width of the products to be packaged.
The machine is supplied with 2 perforators but it is possible to use only one when packaging
small products.
Turning the perforators manually A you can move them closer or farther from the contrast B to
obtain a larger or smaller perforation thus guaranteeing ideal heat shrinking for any type of
product without breaking the film along the sealing.
CHAPTER 4 - PREPARING THE MACHINE FOR USE

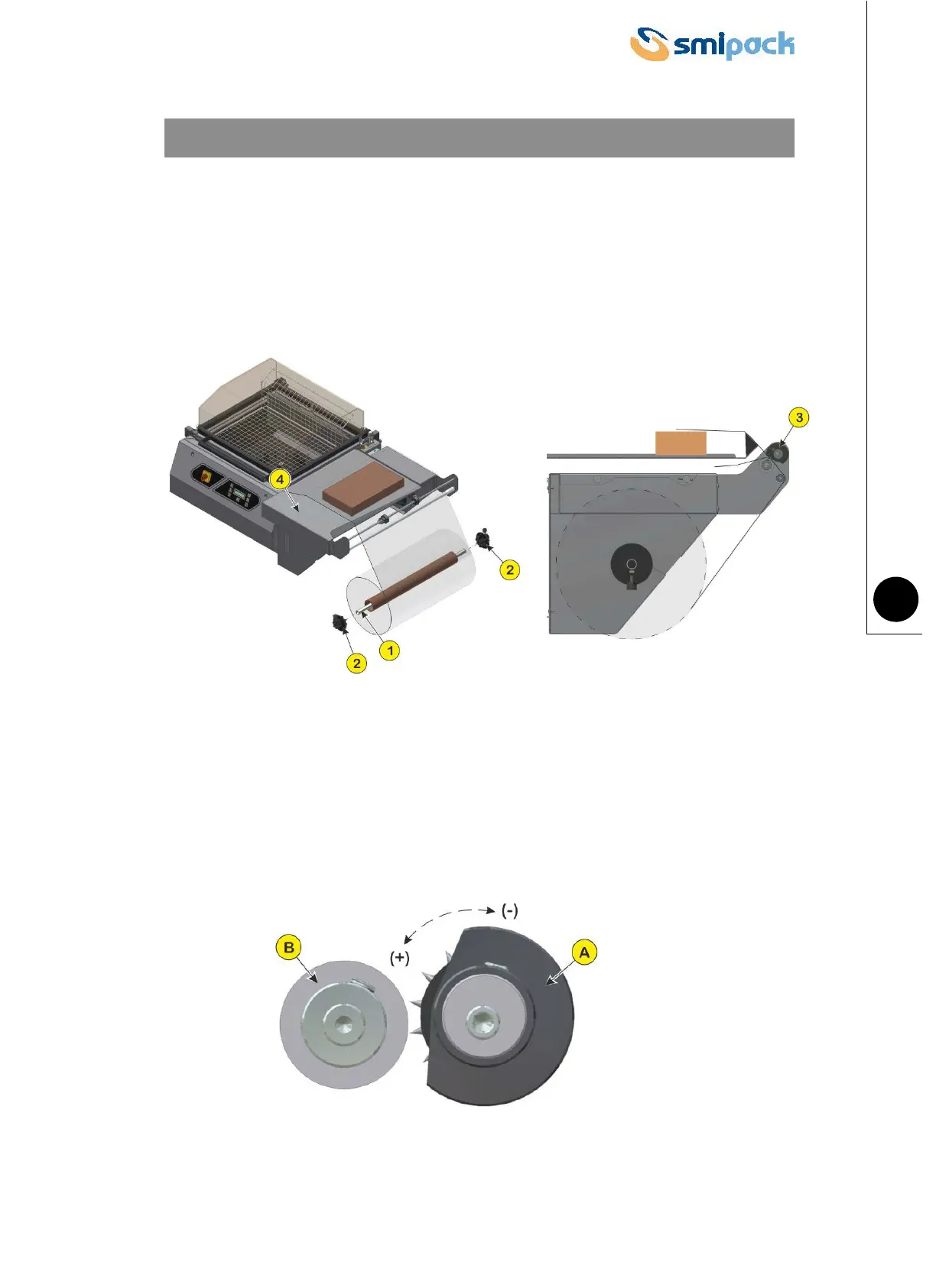

Fig. 4.1.1
Fig. 4.2.1
