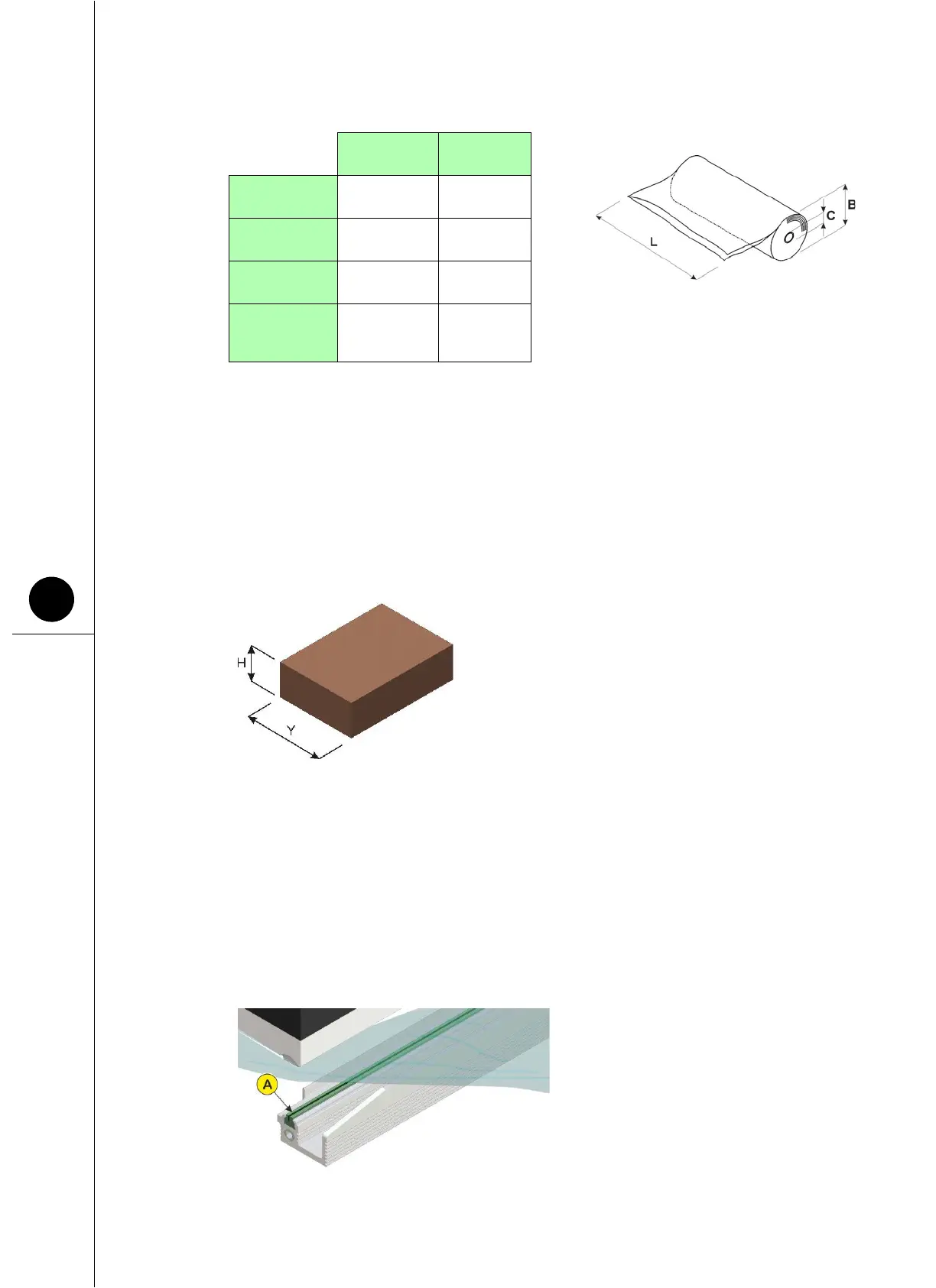

3.6 DETERMINATION OF FILM WIDTH
To determine the width L of the film reel used for packaging, follow this formula:
L reel = Y product + H product + 50 mm
3.7 FILM SEALING OPERATION
Sealing and cutting of film is pulse-operated, adjusted automatically by the circuit board. The
sealing blade A is brought to a temperature which melts the film. The pressure achieved
between the sealing blade and the upper contest, coated in PTFE, separates the two edges of
the film.
SL45 SL55
L 450 mm 600 mm
B Ø250 mm Ø250 mm
C Ø77 mm Ø77 mm
WEIGHT
MAXIMUM
20 kg 20 kg
Fig. 3.5.1
Fig. 3.6.1
Fig. 3.7.1
