Smipack SL55 - Inserting Fuses in the Power Board

Chapter 2 - Machine installation
16
Translation from the original
ATTENTION!
Make sure to attach the supports A and B in the correct position.
Mount the two wheels C equipped with brakes at the front of the machine.
2.6 INSERTING FUSES IN THE POWER BOARD
The machine is delivered with the fuses not yet installed in the fuse-holder.
Follow the instructions below, taking into account the machine's power supply:
1 - 230V 1PH+N power supply
Insert the fuse on the phase and the copper wire on the neutral.
2 - 230V 2PH power supply
Insert the two fuses on the phases.

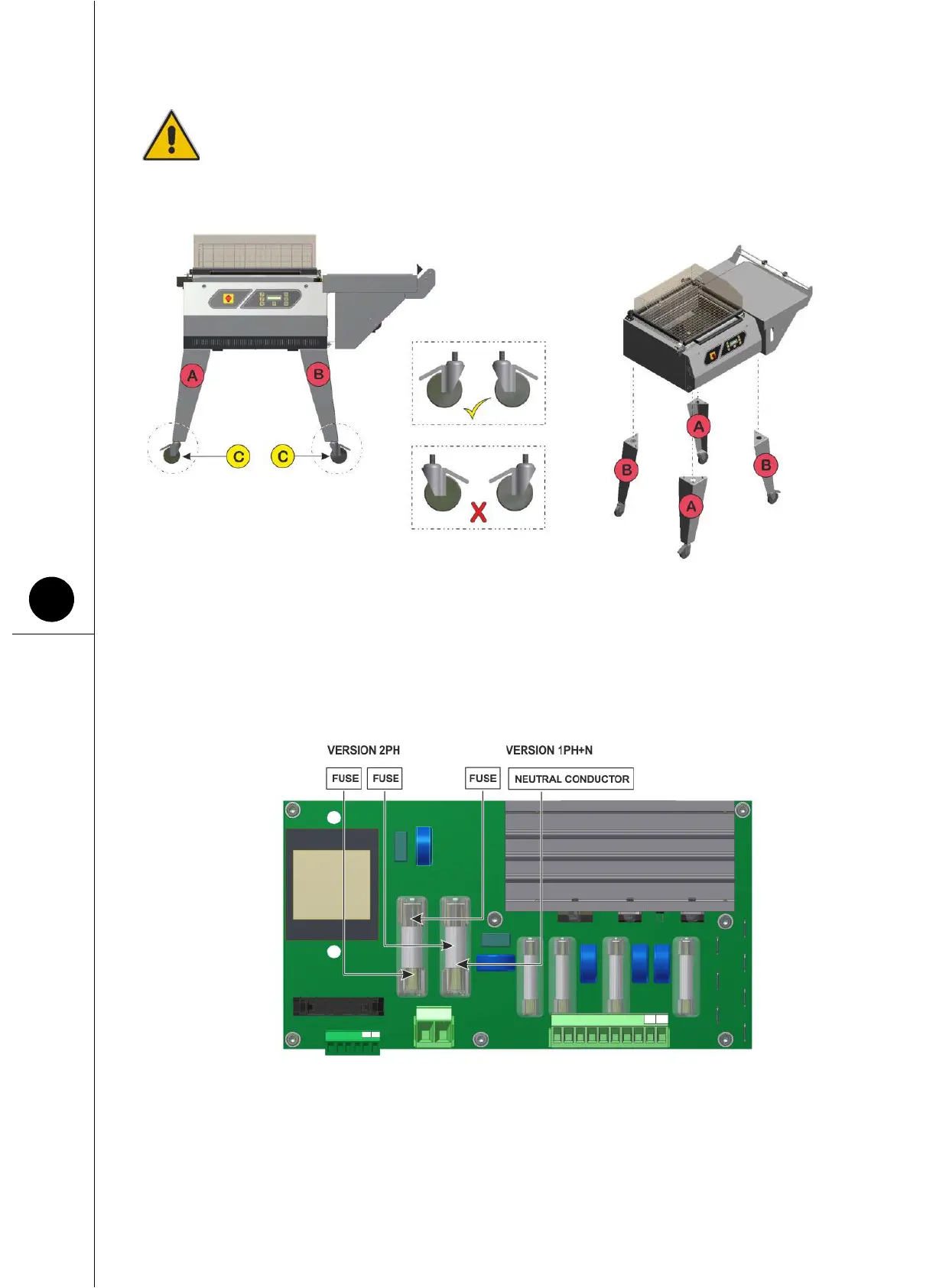

Fig. 2.5.5
Fig. 2.6.1
