Smipack SL55 - Machine Access Areas for Inspections

Chapter 6 - Cleaning and maintenance
38
Translation from the original
Replacing silicon rubber
•Remove the worn silicon rubber 2.
•Thoroughly clean the housing seat of the silicon rubber.
•Apply a few drops of glue or else two-sided adhesive tape on the side of the silicon rubber
to be glued at the bottom of the conduit.
•Insert the new silicon rubber in line without pressing or pulling it.
•Apply the PTFE strip as indicated previously.
6.5 MACHINE ACCESS AREAS FOR INSPECTIONS

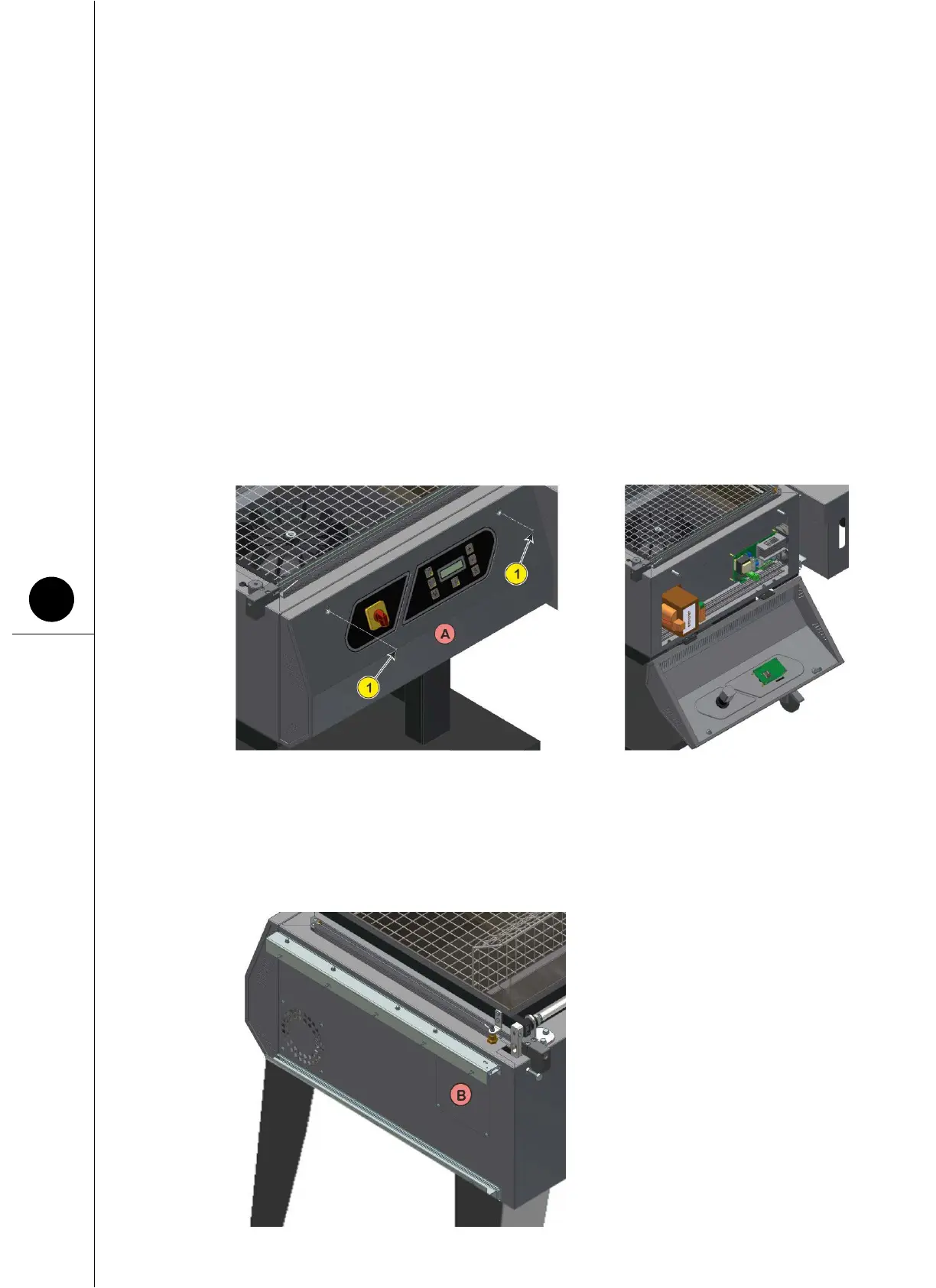

A) ACCESS TO POWER BOARD
The power board can be accessed for cleaning or maintenance by removing the screws 1 as
shown in the figure.
B) ACCESS TO INSPECT CYCLE START MICRO SWITCH
If the “cycle start micro switch” needs to be inspected, disassemble the protective casing B as
shown in the figure.
Fig. 6.5.1
Fig. 6.5.2
