Smipack T650 - Assembly of the Machinefp560;A and Fp870 A with the Tunnel

71 / 284
Use and maintenance manual
T450 - T650E - T650EF - T650 - T650F
ENGLISH
The lifting of the machine module must be carried out by means of hoisting systems
operating from below; due to the packaging modalities, it is not possible to use hoisting
systems operating from above.
Lift the machine from the longer side and adjust the forks of the forklift at the maximum
distance from each other.
ATTENTION!
Before handling make sure that the hoisting equipment are suitable to lift the
load that has to be handled.
In the case of long storing, place the machine in a sheltered environment with a
temperature between -15°C and +55°C degree of humidity, variable between 30% and
90% without condensation.
2.6 ASSEMBLY OF THE MACHINEFP560/A AND FP870A WITH THE
TUNNEL
After having unpacked the tunnel join the machine's conveyor belt to the tunnel's belt.
Insert the hooks of the machine's belt 1 onto the roller 2 placed in the tunnel entrance.

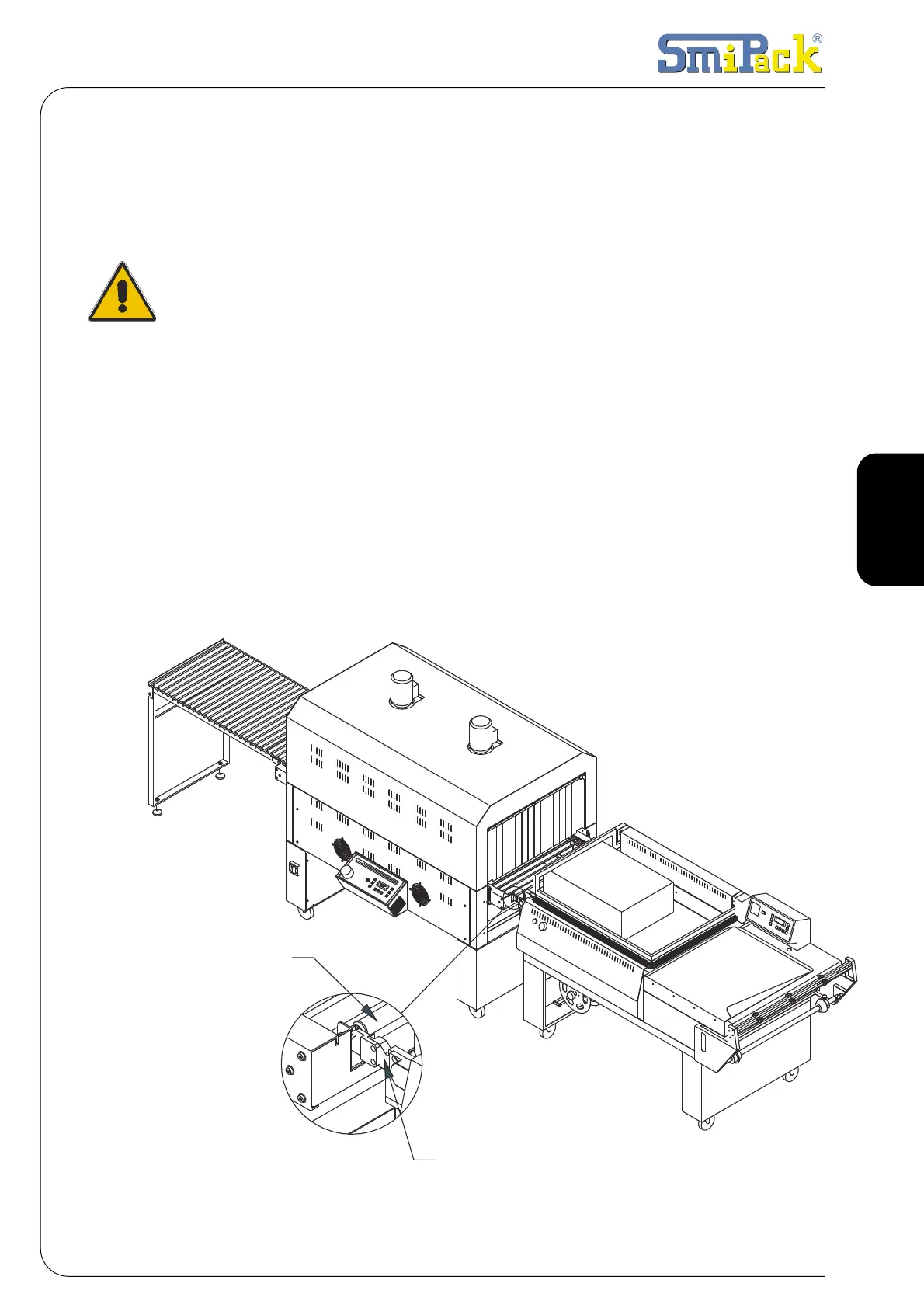

Fig. 2.6.1
2
1
