Smipack T650 - Wiring Diagram T450 (220 V)

107 / 284
Use and maintenance manual
T450 - T650E - T650EF - T650 - T650F
ENGLISH

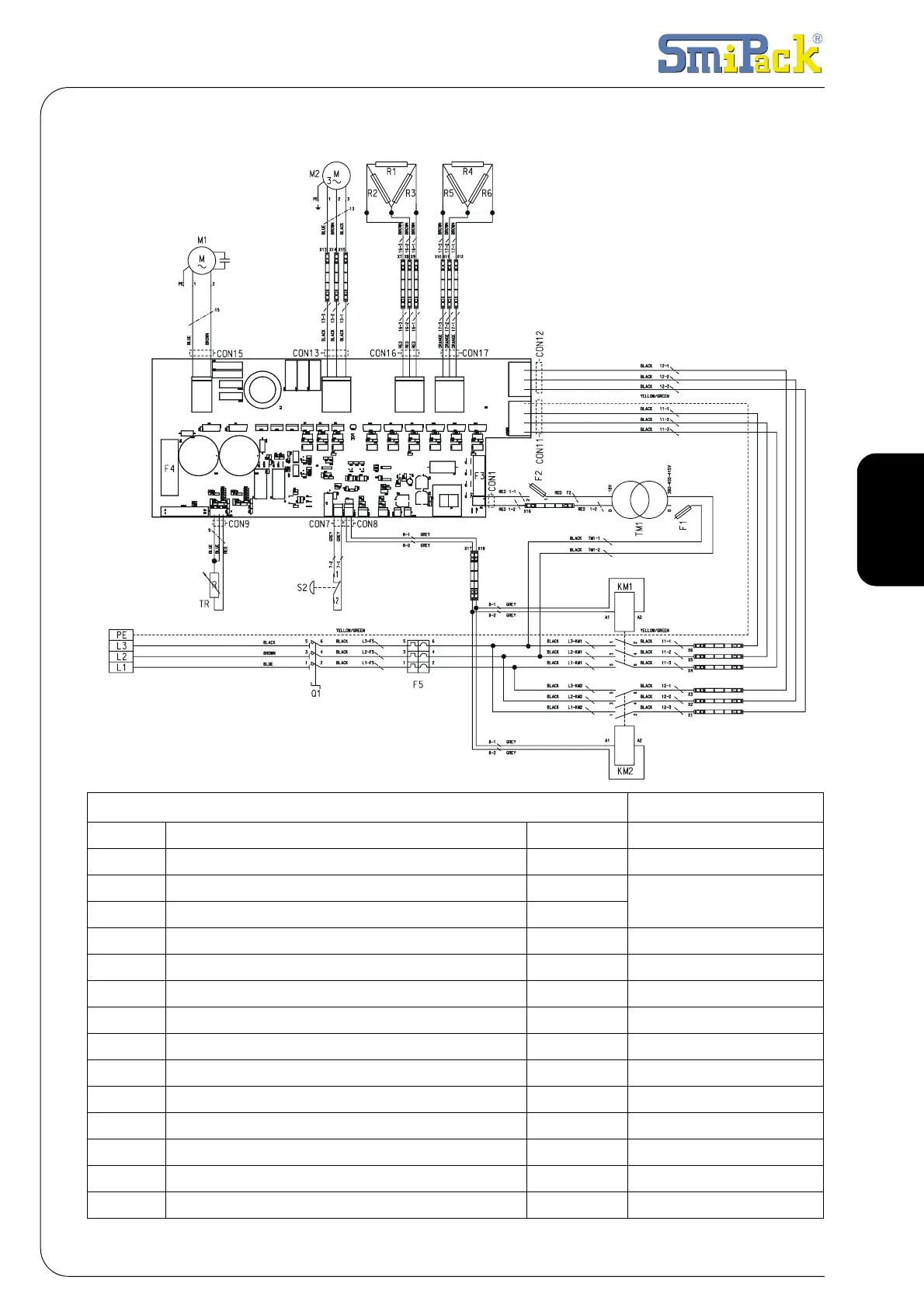

5.5 WIRING DIAGRAM T450 (220V)
T450 (220V) CODE
F1 INPUT TRANSFORMER FUSE 1A EE500026
F2 OUTPUT TRANSFORMER FUSE 3,15 A EE500042
F3 CARD FEED FUSE 2 A
F4 BELT MOTOR OUTLET FUSE 4 A
F5 THERMOMAGNETIC SWITCH 24-32A EE200154
Q1 MAIN SWITCH 32 A EP010139
M1 CONVEYOR BELT MOTOR 180 W EM600153
M2 SHRINKING FAN MOTOR 250 W EM600014
R1-3 TUNNEL RESISTOR ZONE A 1250 W MA106977
R4-6 TUNNEL RESISTOR ZONE B 1250 W MA106977
S2 EMERGENCY PUSH-BUTTON EP010097
TR THERMORESISTOR PT 100 EE400008
TM1 BOARD TRANSFORMER 50 VA ET010134
KM1 INPUT TRANSFORMER FUSE 16 A EE100077
KM2 OUTPUT TRANSFORMER FUSE 16 A EE100077
