Smipack T650 - Wiring Diagram T650

111 / 284
Use and maintenance manual
T450 - T650E - T650EF - T650 - T650F
ENGLISH

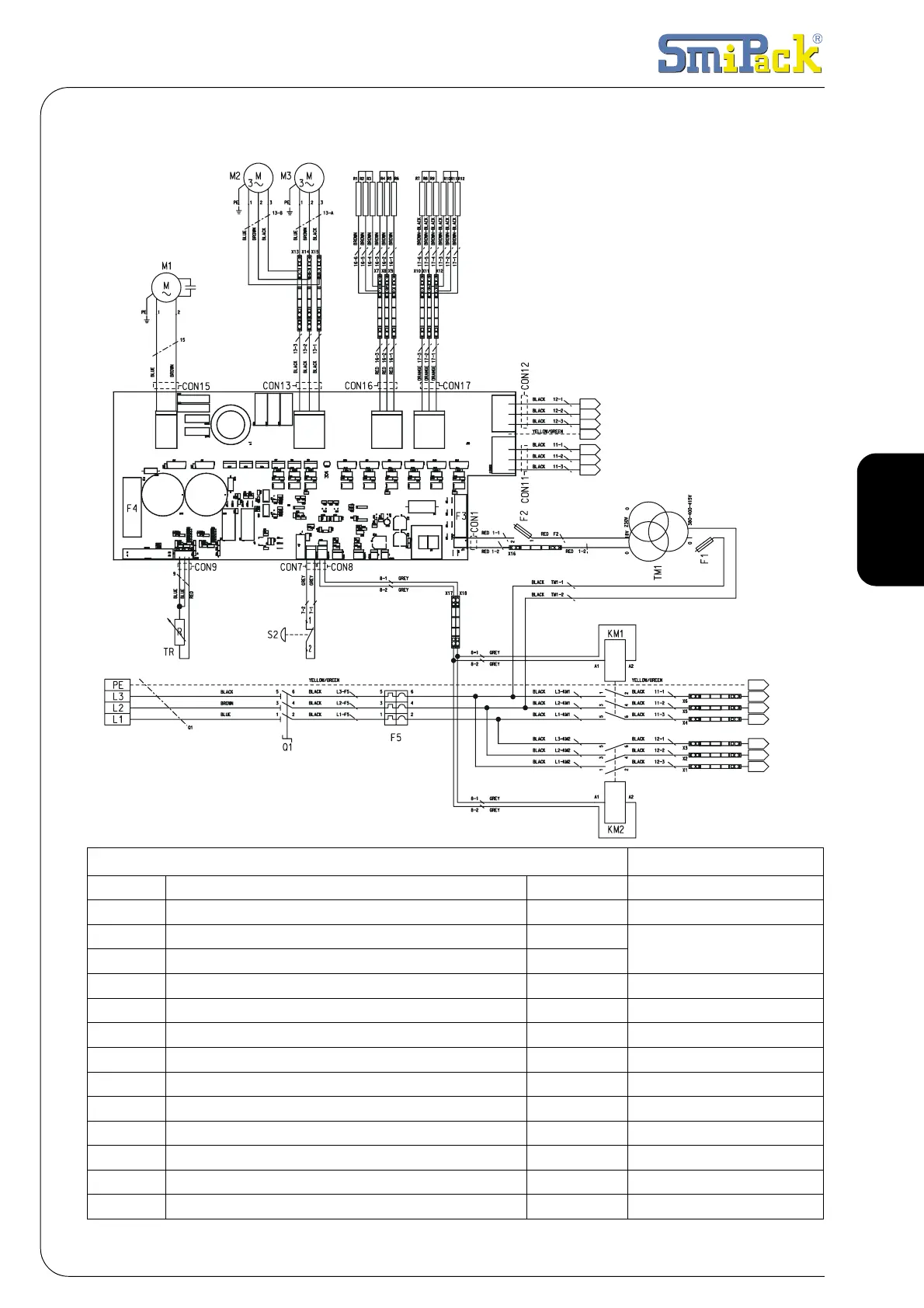

5.9 WIRING DIAGRAM T650
T650 CODE
F1 INPUT TRANSFORMER FUSE 1 A EE500054
F2 OUTPUT TRANSFORMER FUSE 3,15 A EE500042
F3 CARD FEED FUSE 2 A
F4 BELT MOTOR OUTLET FUSE 4 A
F5 THERMOMAGNETIC SWITCH 24-32 A EE200154
Q1 MAIN SWITCH 32 A EP010139
M1 SHRINKING FAN MOTOR 250 W EM600014
M2-3 CONVEYOR BELT MOTOR 180 W EM600013
R1-6 TUNNEL RESISTOR ZONE A 1250 W MA107406
R7-12 TUNNEL RESISTOR ZONE B 1250 W MA107406
S2 EMERGENCY PUSH-BUTTON EP010097
TR THERMORESISTOR ZONE A PT 100 EE400009
TM1 BOARD TRANSFORMER 180 VA ET010181
KM1-2 RELAY SWITCH 18 A EE100077
