2. Tunnel installation
2.9 DEMOLITION AND DISPOSAL
The tunnel does not contain dangerous components or substances that require
particular removal procedures. After the tunnel has been dismantled you must get rid
of the various materials according to the rules and regulations of the Country in which
the tunnel has to be disposed of.
2.10 ELECTRIC CONNECTION
ALL OPERATIONS FOR THE CONNECTION TO THE MAINS MUST BE CARRIED
OUT WITH NO VOLTAGE APPLIED TO THE TUNNEL.

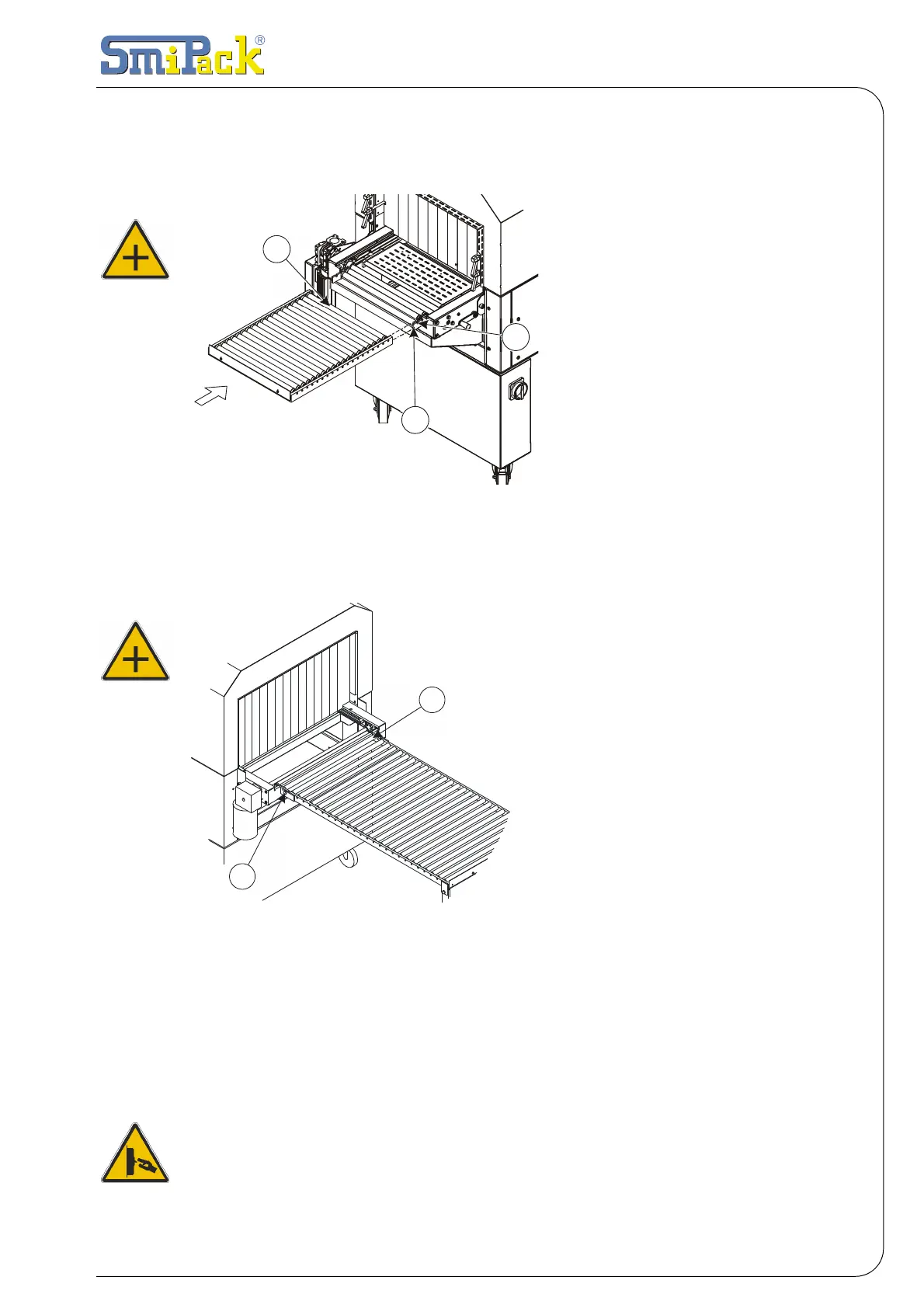

2.7 POSITIONING TUNNEL ROLLER T450
Fig. 2.7.1
Insert the roller conveyor
belt into 1 the attachments of
the tunnel's conveyor belt
and lock it with the roller 2 in
the special holes 3. In
assembly phase do not push
the roller conveyor belt
sideways because the
attachments could be
damaged 1.
Just make it slide as shown
by the arrow in the figure.
2.8 POSITIONING THE TUNNEL ROLLER CONVEYOR BELT T650
Fig. 2.8.1
Insert the roller conveyor
belt into the external side 1
of the tunnel's conveyor belt
and lock it with the supplied
screws 2. Make sure that the
roller conveyor belt is level
on the ground when the
tunnel's belt is tilted.
2
1
3
1
1
