Use and maintenance manual
T450 - T650E - T650EF - T650 - T650F
ENGLISH

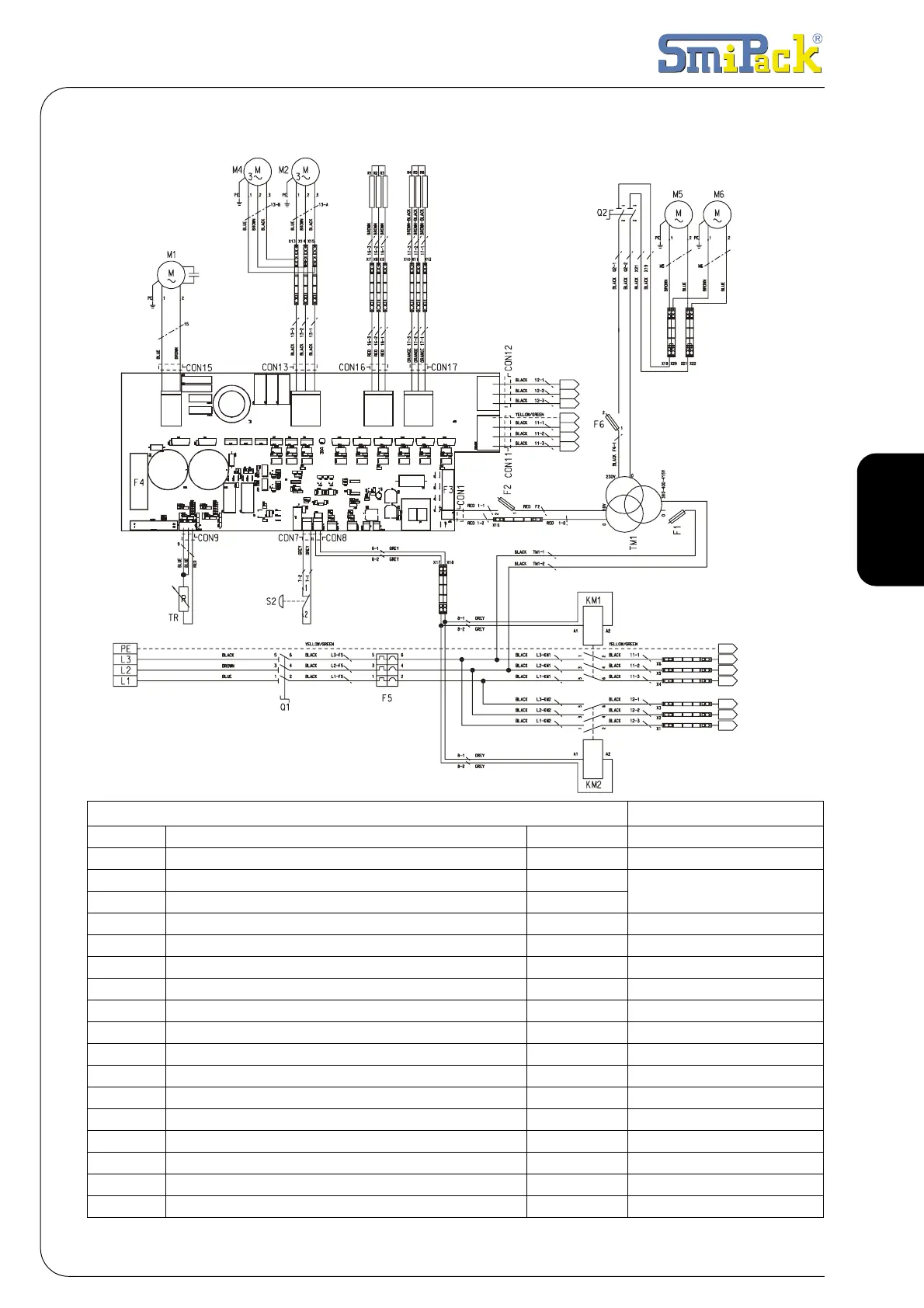

5.7 WIRING DIAGRAM T650EF
T650EF CODE
F1 INPUT TRANSFORMER FUSE 1 A EE500054
F2 OUTPUT TRANSFORMER FUSE 3,15 A EE500042
F3 CARD FEED FUSE 2 A
F4 BELT MOTOR OUTLET FUSE 4 A
F5 THERMOMAGNETIC SWITCH 24-32 A EE200154
F6 CHAIN COOLING FAN FUSE 1A EE500031
Q1 MAIN SWITCH
Q2 SELECTOR 32 A EP010139
M1 CONVEYOR BELT MOTOR 180W EM600013
M2 SHRINKING FAN MOTOR 370W EM600201
M4 OUTLET FAN MOTOR 105 W EM400067
M5-6 CHAIN COOLING FAN 20W EK020022
R1-3 TUNNEL RESISTOR ZONE A 2200 W MA109347
R4-6 TUNNEL RESISTOR ZONE B 2200 W MA109347
S2 EMERGENCY PUSH-BUTTON EP010097
TR THERMORESISTOR ZONE A PT 100 EE400009
TM1 BOARD TRANSFORMER 180 VA ET010181
KM1-2 RELAY SWITCH 16A EE100077
