Smipack T650 - Wiring Diagram T650 EF (220 V)

110 / 284
5. Routine maintenance

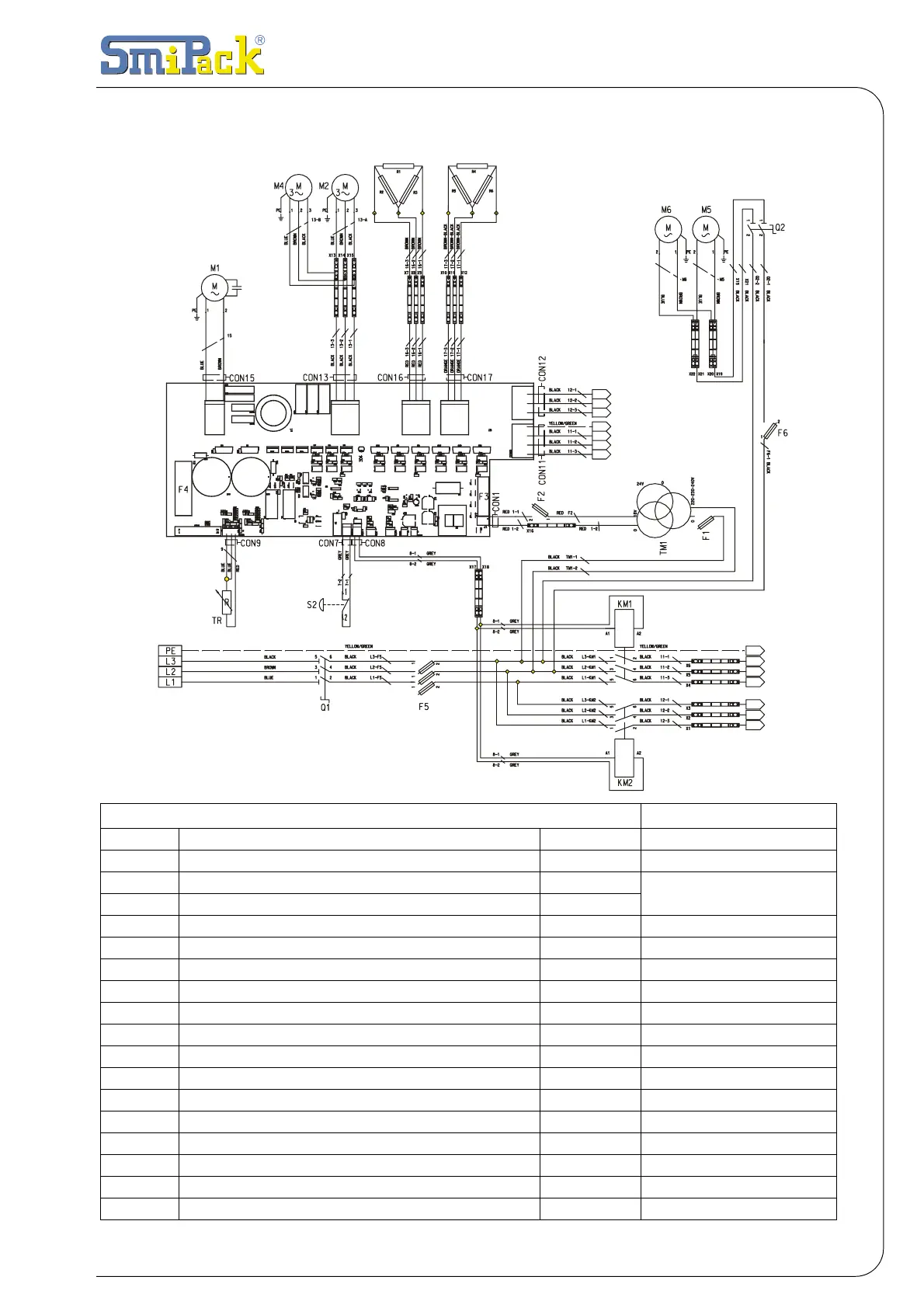

5.8 WIRING DIAGRAM T650EF (220V)
T650EF (220V) 3PH CODE
F1 INPUT TRANSFORMER FUSE 1 A EE500026
F2 OUTPUT TRANSFORMER FUSE 3,15 A EE500042
F3 CARD FEED FUSE 2 A
F4 BELT MOTOR OUTLET FUSE 4 A
F5 GENERAL FUSE 40 A EE500016
F6 CHAIN COOLING FAN FUSE 1A EE500031
Q1 MAIN SWITCH
Q2 SELECTOR 40 A EP010178
M1 CONVEYOR BELT MOTOR 180W EM600153
M2 SHRINKING FAN MOTOR 370W EM600201
M4 OUTLET FAN MOTOR 105 W EM400067
M5-6 CHAIN COOLING FAN 20W EK020022
R1-3 TUNNEL RESISTOR ZONE A 2200 W MA109347
R4-6 TUNNEL RESISTOR ZONE B 2200 W MA109347
S2 EMERGENCY PUSH-BUTTON EP010097
TR THERMORESISTOR ZONE A PT 100 EE400009
TM1 BOARD TRANSFORMER 50 VA ET010134
KM1-2 RELAY SWITCH 20A EE100104
