Smipack T650 - Tav. 7. T450 with Turning Roller

90 / 284
5. Routine maintenance

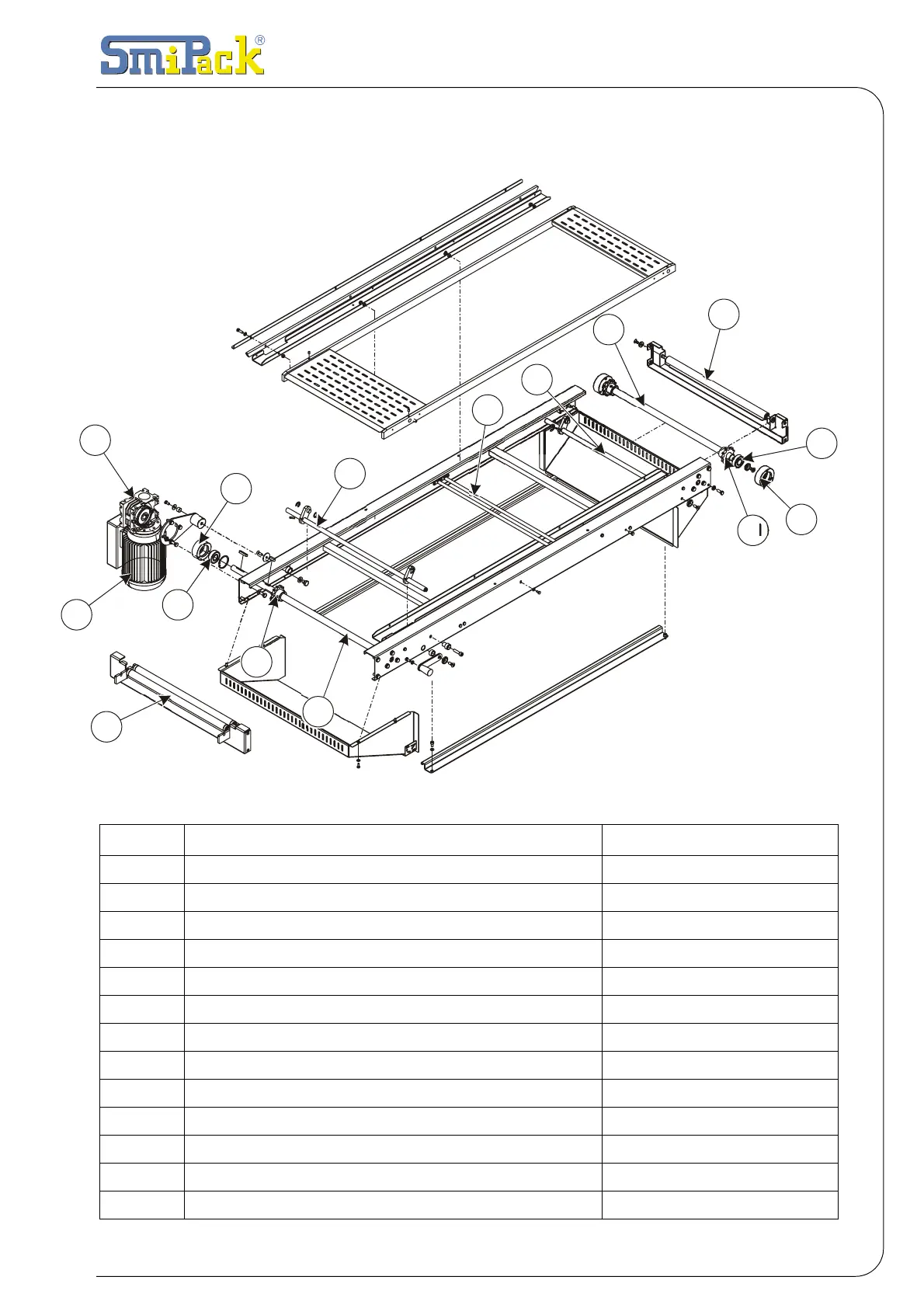

Tav. 7 - T450 with turning roller
Pos. Description spare parts T450 with turning roller
1
MOTOR EM600013
2
GEAR BOX EM650304
3
SHAFT MA112112
4
BEARING MF801062
5
DETAILS GROUP MH200037
6
PINION MA401549
7
SHAFT MA112046
8
CHAIN GROUP MH290008
9
ROD MA112051
10
ROD MA112052
11
PINION MA401548
12
SHAFT MA112045
13
DETAILS GROUP MH200061
1
2
3
4
6
7
5
9
8
10
12
13
11
4
3
