Smipack T650 - Tunnel Installation; Control Systems

69 / 284
Use and maintenance manual
T450 - T650E - T650EF - T650 - T650F
ENGLISH
2.1 DESCRIPTION OF THE MACHINE
2.2 CONTROL SYSTEMS
2. TUNNEL INSTALLATION

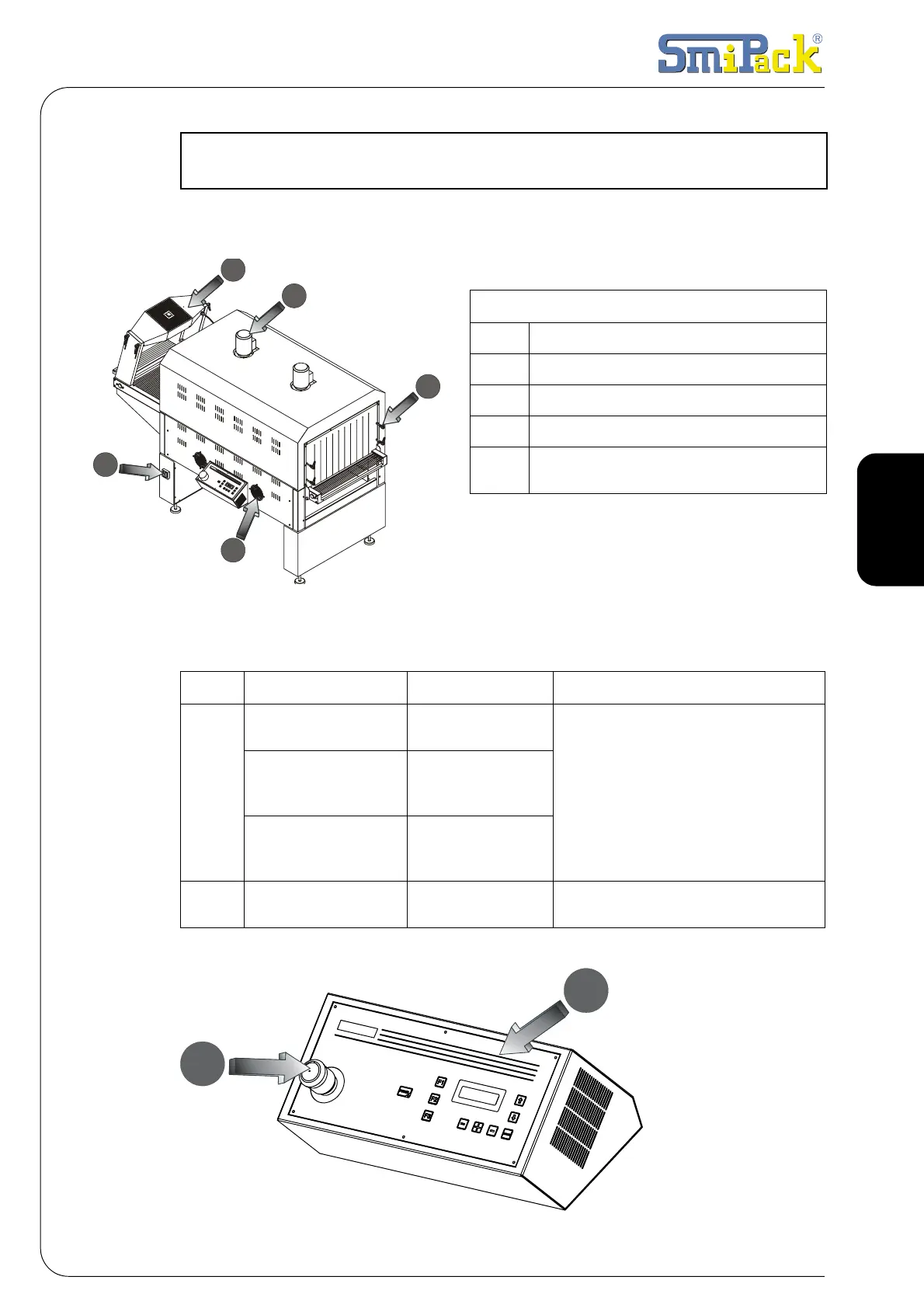

Fig. 2.1.1
GLOSSARY
1
OUTLET FAN ( T650EF - T650F)
2
FANS MOTOR
3
DEFLECTORS
4
MAIN SWITCH
5
CONVEYOR COOLING FANS
( T650EF - T650F)
2
3
4
5
1
Pos. Code Description Function
1
EN200043
(T450 - T650E)
ELECTRONIC
CARD
IT ALLOWS THE CONFIGURATION
OF THE MACHINE ACCORDING
TO THE KIND OF TASK IT IS
SUPPOSED TO CARRY OUT
EN200044
(T650 - T650F
T650EF)
ELECTRONIC
CARD
EN200050
(T450 220V-T650EF
220V-T650E 220V)
ELECTRONIC
CARD
2
EP010095
EMERGENCY
PUSH-BUTTON
IT STOPS THE MACHINE IN CASE
OF AN EMERGENCY
1
2
Fig. 2.2.1
