Smipack T650 - Wiring Diagram T650 F

112 / 284
5. Routine maintenance

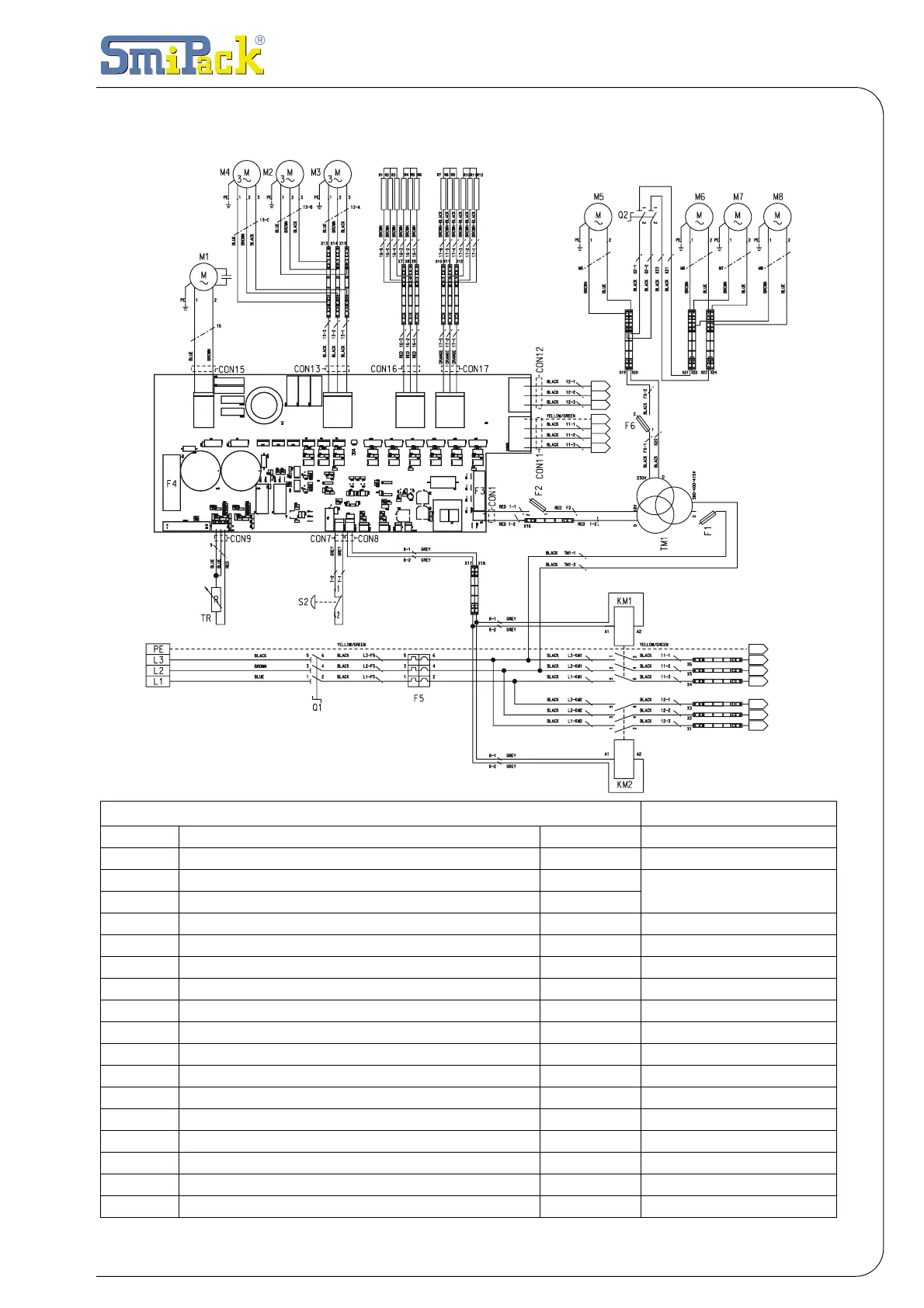

5.10 WIRING DIAGRAM T650F
T650F CODE
F1 INPUT TRANSFORMER FUSE 1 A EE500054
F2 OUTPUT TRANSFORMER FUSE 3,15 A EE500042
F3 CARD FEED FUSE 2 A
F4 BELT MOTOR OUTLET FUSE 4 A
F5 THERMOMAGNETIC SWITCH 24-32A EE200154
F6 CHAIN COOLING FAN FUSE 1 A EE500031
Q1 MAIN SWITCH 32 A EP010139
Q2 SELECTOR
M1 CONVEYOR BELT MOTOR 290 W EM600135
M2-3 OUTLET FAN MOTOR 250 W EM600014
M4 FAN MOTOR 105 W EM400067
M5-8 CHAIN COOLING FAN 20 W EK020022
R1-6 TUNNEL RESISTOR ZONE A 1700 W MA108253
R7-12 TUNNEL RESISTOR ZONE B 1700 W MA108253
S2 EMERGENCY PUSH-BUTTON EP010097
TR THERMORESISTOR ZONE A PT 100 EE400009
TM1 BOARD TRANSFORMER 180 VA ET010181
KM1-2 RELAY SWITCH 16 A EE100077
