Smipack T650 - Tav. 2. Transformer Group T450 220 V 3 Ph - T650 Ef - T650 - T650 F

85 / 284
Use and maintenance manual
T450 - T650E - T650EF - T650 - T650F
ENGLISH

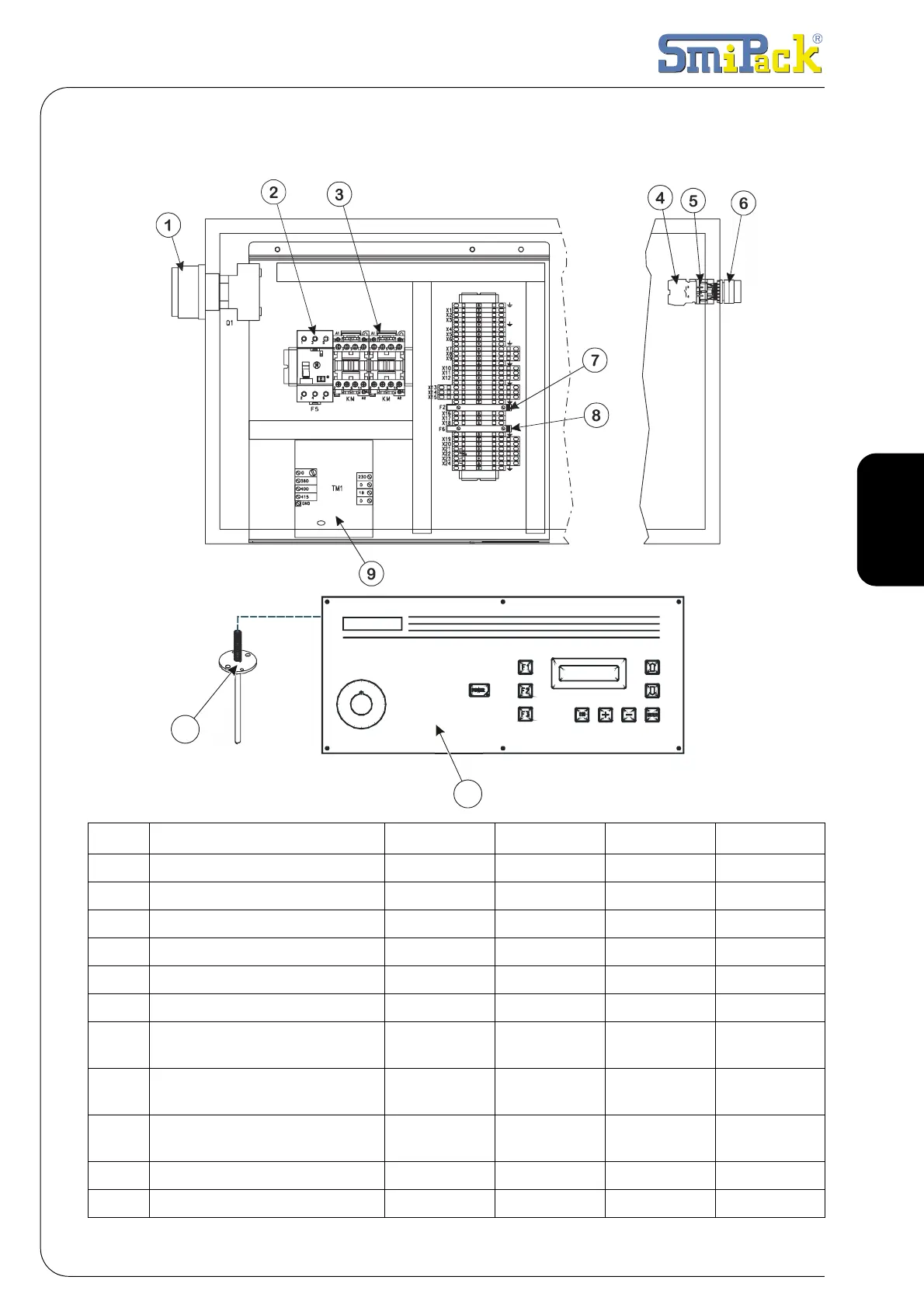

Tav. 2 - Transformer group T450 220V 3PH - T650EF - T650 - T650F
Pos. Description spare parts T450 220V T650EF T650 T650F
1
SWITCH EP010139 EP010139 EP010139 EP010139
2
THERMOMAGNETIC SWITCH EE200154 EE200154 EE200154 EE200154
3
RELAY SWITCH EE100077 EE100077 EE100077 EE100077
4
CONTACT EP010098 EP010098
5
TERMINALS SOCKET EP010099 EP010099
6
SELECTOR EP010096 EP010096
7
TERMINAL
FUSE
EK200004
EE500042
EK200004
EE500042
EK200004
EE500042
EK200004
EE500042
8
TERMINAL
FUSE
EK200004
EE500031
EK200004
EE500031
9
TRANSFORMER ET010134
EE500026
ET010181
EE500054
ET010181
EE500054
ET010181
EE500054
10
HEAT RESISTANCE EE400008 EE400009 EE400009 EE400009
11
PRINTED CIRCUIT BOARD EN200050 EN200044 EN200044 EN200044
10
11
