Smipack T650 - Tav. 3. Transformer Group T650 Ef 220 V 3 Phf

86 / 284
5. Routine maintenance

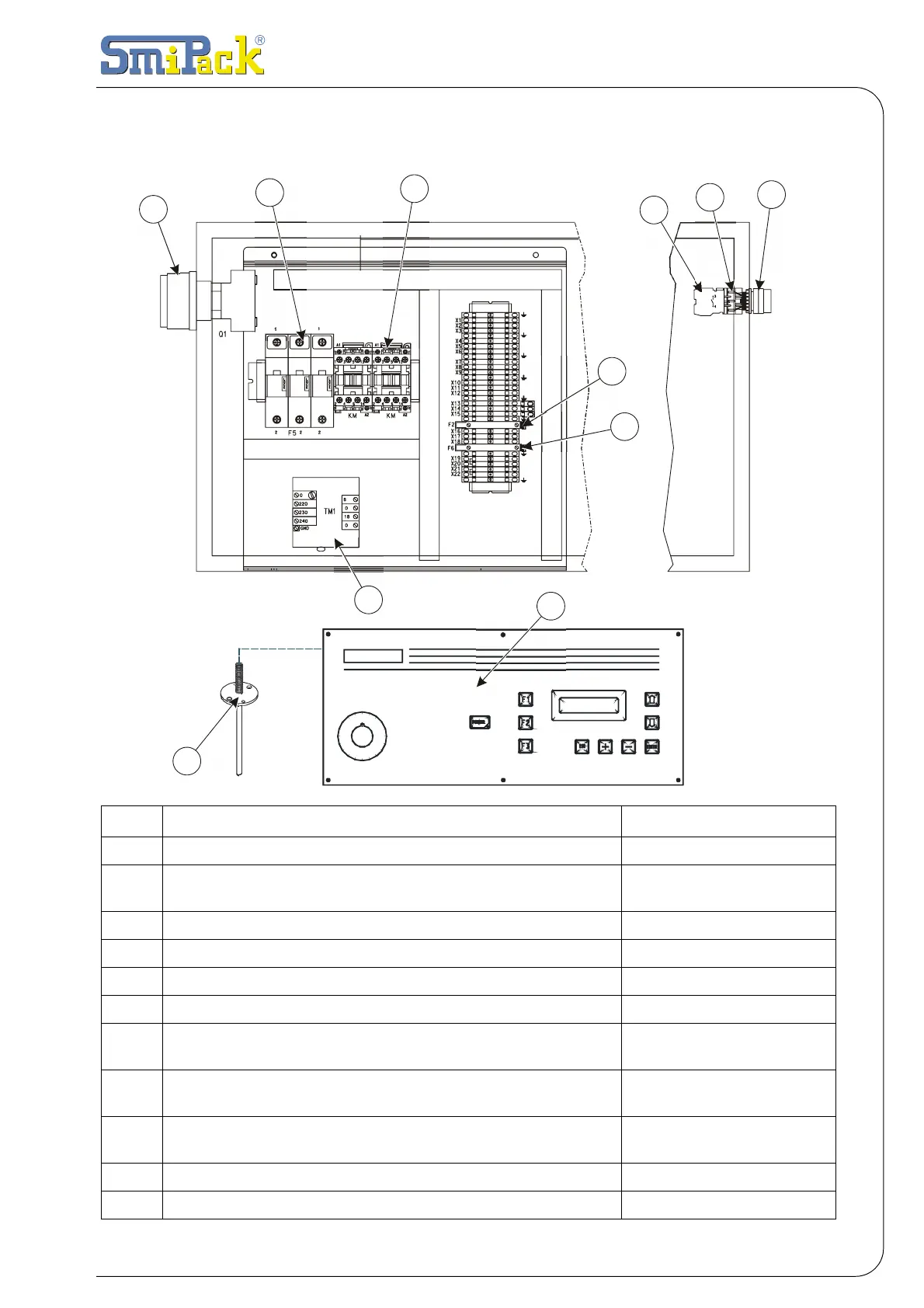

Tav. 3 - Transformer group T650EF 220V 3PH
Pos. Description spare parts T650EF 220V 3PH
1
SWITCH EP010178
2
FUSIBILE
FUSE SOCKET
EE500016
EE500022
3
RELAY SWITCH EE100104
4
CONTACT EP010098
5
TERMINALS SOCKET EP010099
6
SELECTOR EP010096
7
FUSE SOCKET TERMINAL
FUSE
EK200004
EE500042
8
FUSE SOCKET TERMINAL
FUSE
EK200004
EE500031
9
TRANSFORMER
FUSE
ET010134
EE500026
10
HEAT RESISTANCE EE400009
11
PRINTED CIRCUIT BOARD EN200050
1
2
3
7
8
9
4
5
6
10
11
