5. Routine maintenance

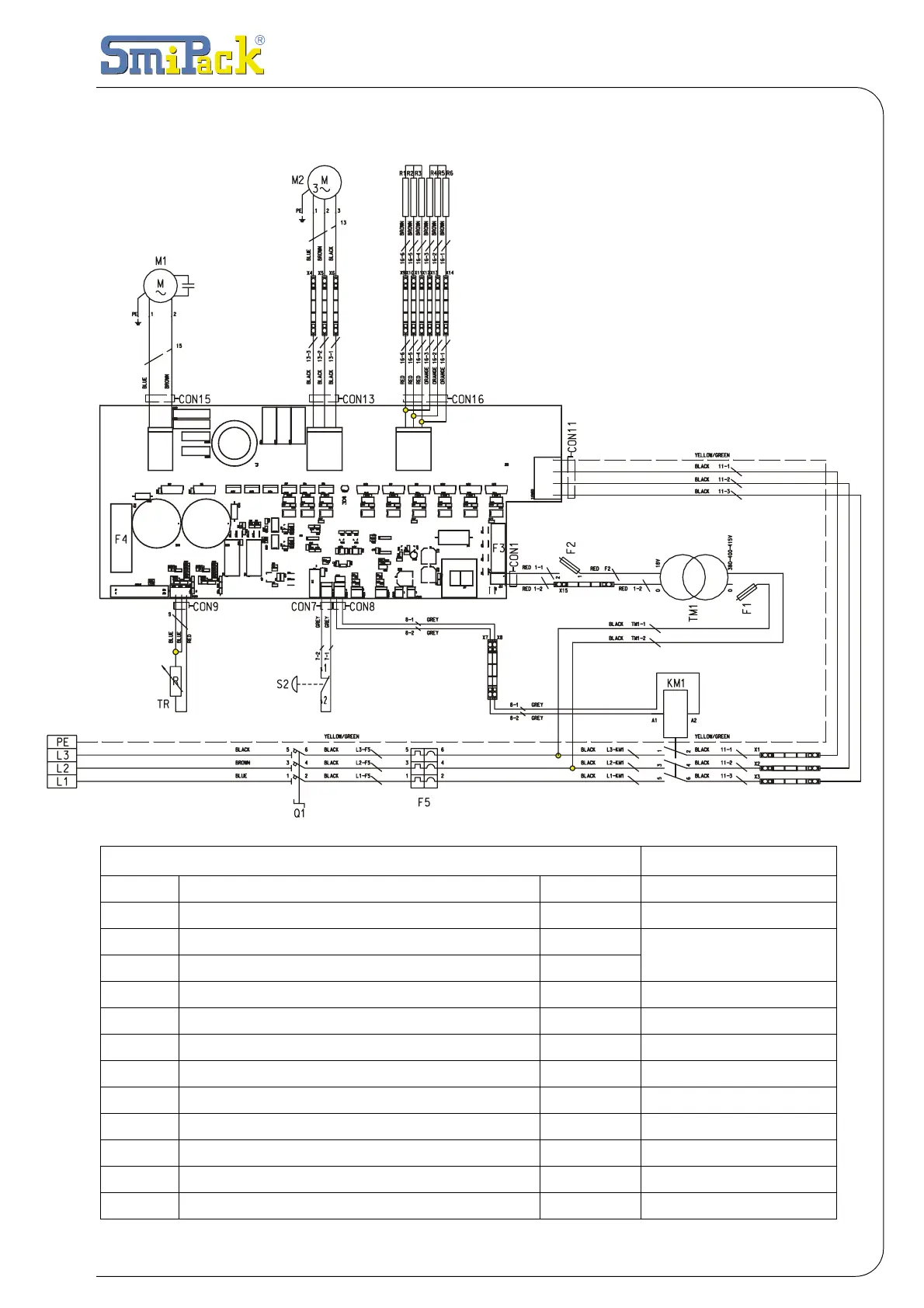

5.4 WIRING DIAGRAM T450
T450 CODE
F1 INPUT TRANSFORMER FUSE 500 mA EE500043
F2 OUTPUT TRANSFORMER FUSE 3,15 A EE500042
F3 CARD FEED FUSE 2 A
F4 BELT MOTOR OUTLET FUSE 4 A
F5 THERMOMAGNETIC SWITCH 13-18A EE200153
Q1 MAIN SWITCH 32 A EP010139
M1 CONVEYOR BELT MOTOR 180 W EM600013
M2 SHRINKING FAN MOTOR 250 W EM600014
R1-6 TUNNEL RESISTOR 1250 W MA106977
S2 EMERGENCY PUSH-BUTTON EP010097
TR THERMORESISTOR PT 100 EE400008
TM1 BOARD TRANSFORMER 50 VA ET010165
KM1 RELAY SWITCH 16 A EE100077
