Here you find controls and indicators

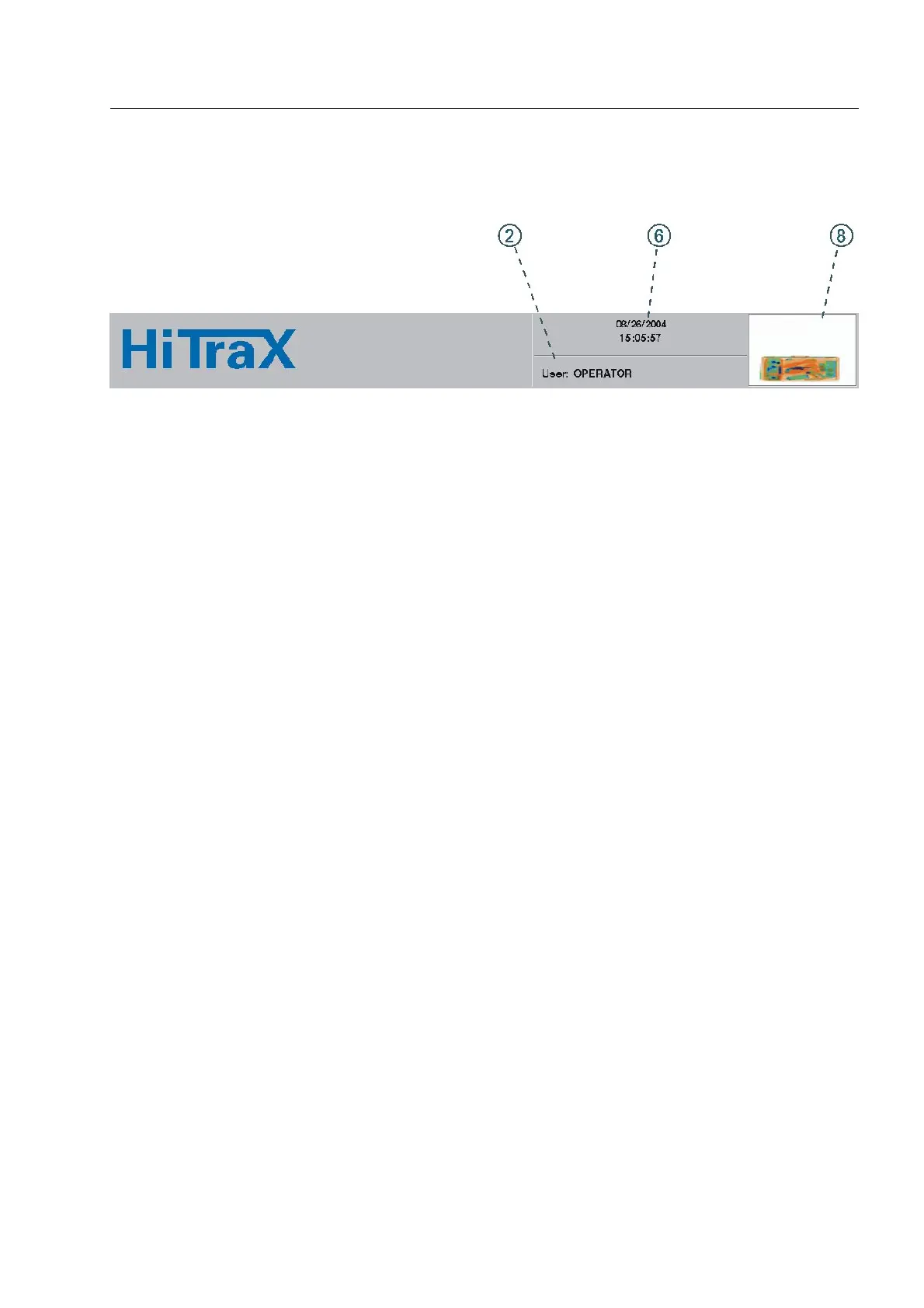

The indication field on the second screen*
(only in dual view units)
2 name or user identification code of the user logged in to the HI-SCAN X-ray unit (F 1-34)
6 display of date and time
8 miniature display of the complete X-ray image with the second view of the baggage or freight item. Im-
age sections which are magnified on the screen will be provided with a frame in the miniature display.
95587412 01/01/09 © Smiths Heimann
1-27
