SureTrack® SureTrack (Scanner)
113
Dashboard
Selecting the Fix It! icon from the DTC results screen opens the SureTrack
dashboard. The initial Dashboard screen displays the Common Replaced Parts
Graph and either a Tip or Real Fix for the selected DTC (depending on availability).
The Related Tips and Real Fixes icons are also available from this screen
(Figure 15-19).

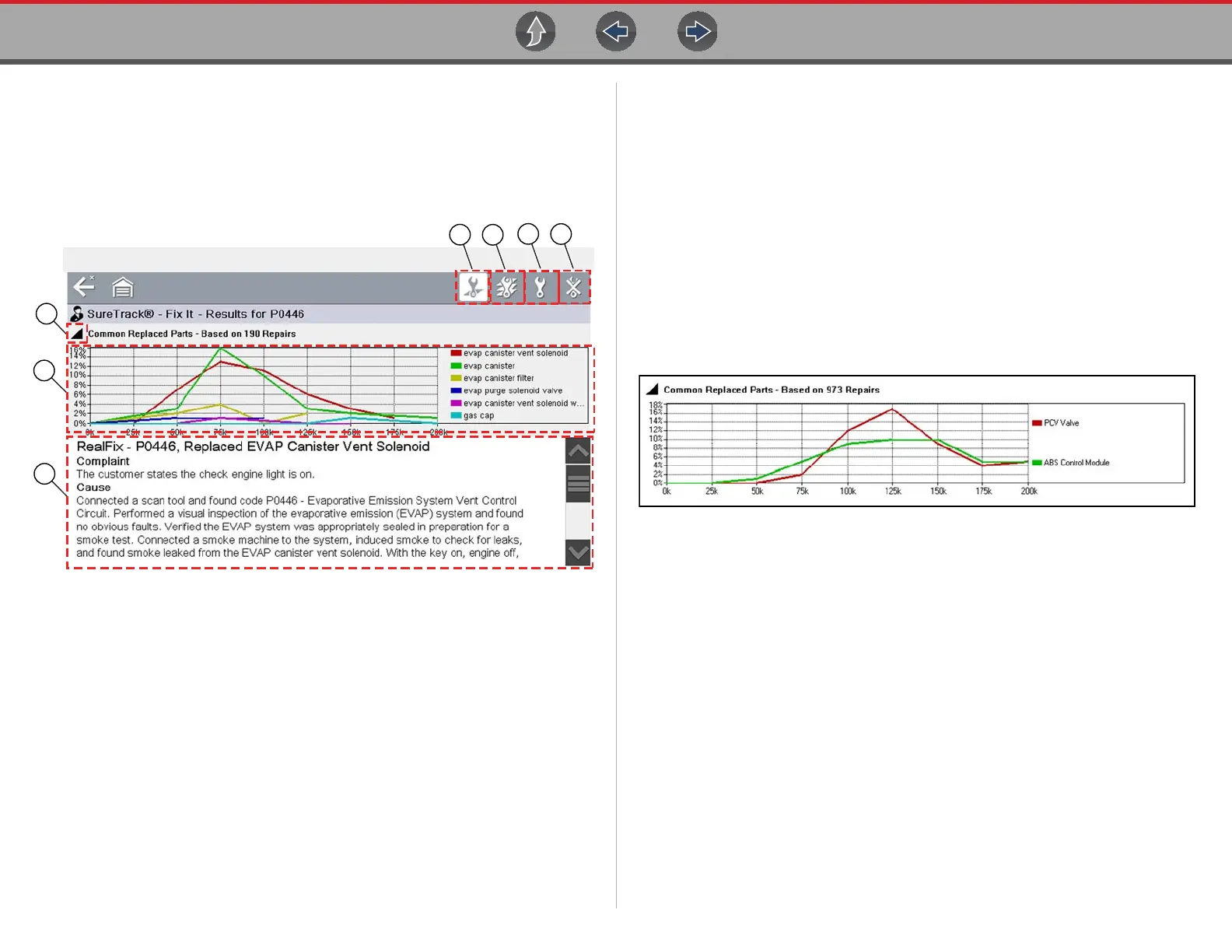

Figure 15-19 SureTrack Dashboard
Common Replaced Parts Graph
The Common Replaced Parts graph (if available) is displayed by selecting the Fix
It! icon or can be viewed directly from the DTC results screen by selecting the
Common Replaced Parts Graph icon, located to the left of Common Replaced
Parts Graph title bar. The Common Replaced Parts graph shows the percentage of
verified fixes (using the parts listed) derived from the total number of repairs by
mileage. The graph may display one or more replacement parts based on the
captured information.
The example below (Figure 15-20) shows two common replaced parts used in the
repair of
DTC P0106. In this example, the PCV valve is the most common replaced part
based on 973 repairs involving vehicles with up to 200k miles, 17% of those 973
repairs occurred at 125k miles.
Figure 15-20 Common Replaced Parts Graph
1— Fix It! Icon
2— Related Tips Icon
3— Real Fixes Icon
4— Dashboard Exit Icon
5— Common Replaced Part Graph
Icon — toggles graph display
open/close
6— Common Replaced Part Graph
7— Tip
