Tire and Wheel Service Toolbar Icons
The following provides a brief description of the related Tire and Wheel Service
toolbar icon functions. Detailed descriptions are provided in the following sections.
TPMS Indicator Reset
Selecting the TPMS Indicator Reset icon displays TPMS indicator
reset instructions. Typical information may include:
• Instructions for manually resetting the TPMS indicator using
on-board vehicle functionality.
• Special notes, and/or instructions
• Theory of operation
During content download, progress messages may display until the image is fully
downloaded, and can be displayed.
When viewing images within the displayed OEM procedures, use the same
navigation functionality (e.g. pan, zoom, etc) as previously described in Oil
Specs and Resets, see Viewing Images on page 61.
Use the scroll bar or directional buttons (b, d) to scroll up/down to view all of the
information.

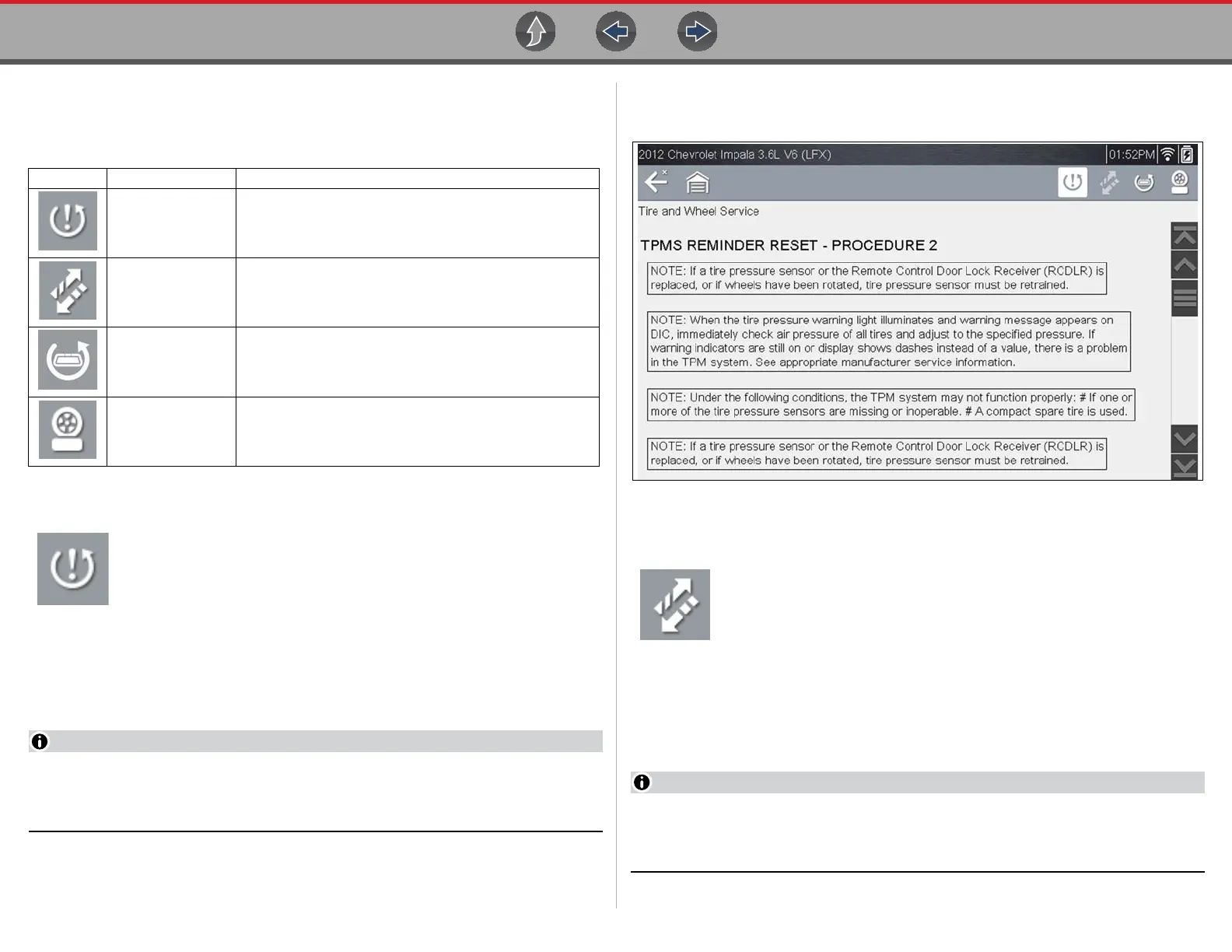

The following example (Figure 9-12) shows typical TPMS indicator reset
instructions. Instructions and screens will vary by vehicle.
Figure 9-12
TPMS Remove & Repair (TPMS Service)
Selecting the Remove & Repair (TPMS Service) icon displays TPMS
service information. Typical information may include:
• Removal and installation instructions.
• Relearn/enable procedures
• Diagnostic testing procedures
• Theory of operation
During content download, progress messages may display until the image is fully
downloaded, and can be displayed.
When viewing images within the displayed OEM procedures, use the same
navigation functionality (e.g. pan, zoom, etc) as previously described in Oil
Specs and Resets, see Viewing Images on page 61.
Icon Icon Name Description
TPMS Indicator
Reset
Displays TPMS indicator reset instructions, to perform a
manual reset of the TPMS indicator. See TPMS Indicator
Reset.
TPMS Remove &
Repair
(TPMS Service)
Displays TPMS service information. See TPMS Remove &
Repair (TPMS Service).
Scanner Functions
Opens the TPMS test related Scanner menu. Options may
include, view and clear codes, display data, and access
functional tests using the diagnostic tool.
Tire/Wheel
Specifications
(Fitment)
Displays OEM tire and wheel specifications.
