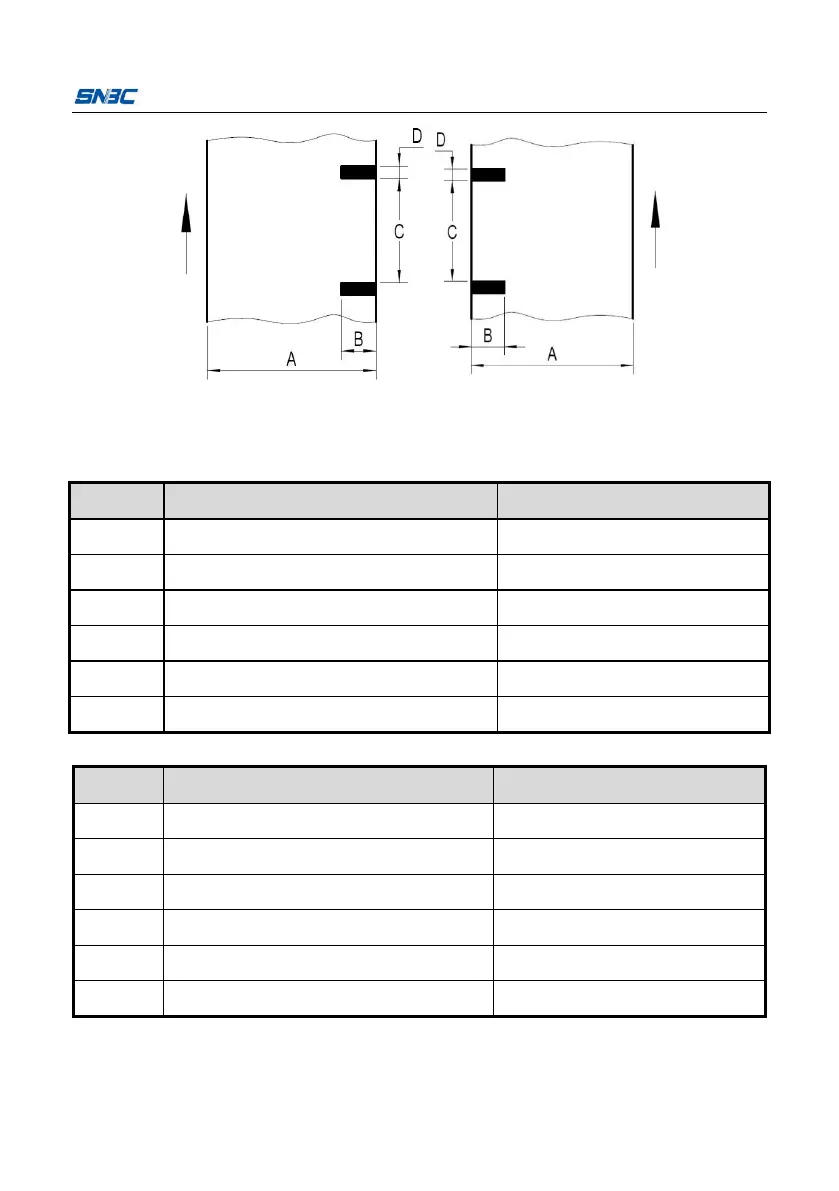

Fig. 2.2.2-1Black marks on print sideFig.2.2.2-2 Black marks on non-print side
The arrow directions in the figures are the paper feeding directions.
Mark
Description
Parameters (mm)
A
Paper width
44±0.5
B
Length of black mark
13~44
C
Space between black marks
10~1000
D
Height of black marks
2~8
//
Paper thickness
0.06-0.10
//
Mark reflectivity
<15%
Mark
Description
Parameters (mm)
A
Paper width
60±0.5
B
Length of black mark
10~60(left)21~60(right)
C
Space between black marks
10~1000
D
Height of black marks
2~8
//
Paper thickness
0.06-0.10
//
Mark reflectivity
<15%
