SNBC BTP-P33 - Paper Roll Installation; Loading the Paper Roll

BTP-P33 User’s Manual
- 13 -

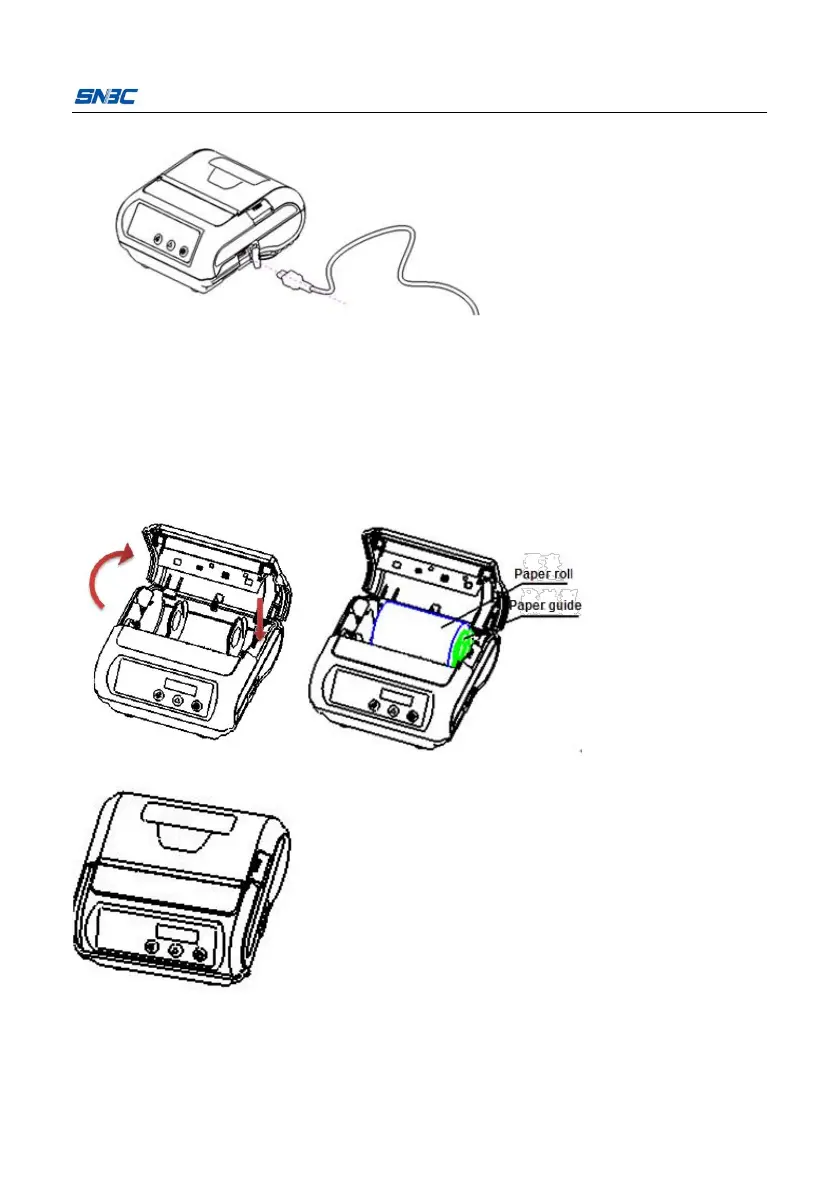

4.4 Paper roll installation
1) Press the spanner to open the top cover of printer;
2) Install the paper roll as shown in the label affixed inside the paper cabinet.
Different width of paper roll can be adjusted by the paper guide;
3) Press down the top cover of printer until it snaps the body in place.
