6Interface signal
BTP-P33 can connect with other devices via USB interface and wireless
transmission.
6.4 USB interface
USB interface supports USB2.0 standard protocol and can be connected
directly to the computer for communication, also it can realize the printer
commissioning, upgrading and other functions.
The socket is the Mini USB 10P standard socket.

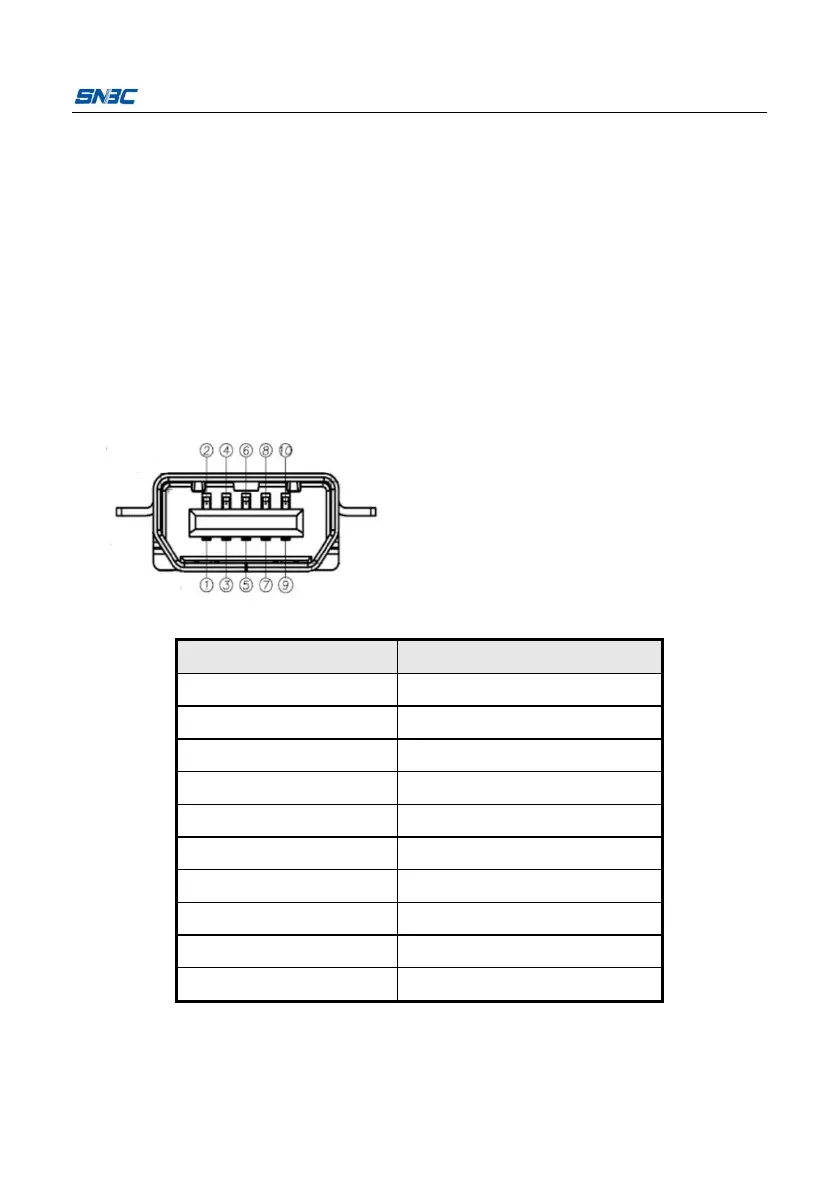

Interface signal definition is as following:
Pin
Wire
1
/
2
VBUS
3
VIN
4
USB-D-
5
VIN
6
USB-D+
7
/
8
/
9
charger-test
10
GND
