Vega 30 Router User Manual Assoc Routing - XY Panel Control Template Vega 30 RollCall Templates 7.8

Feature

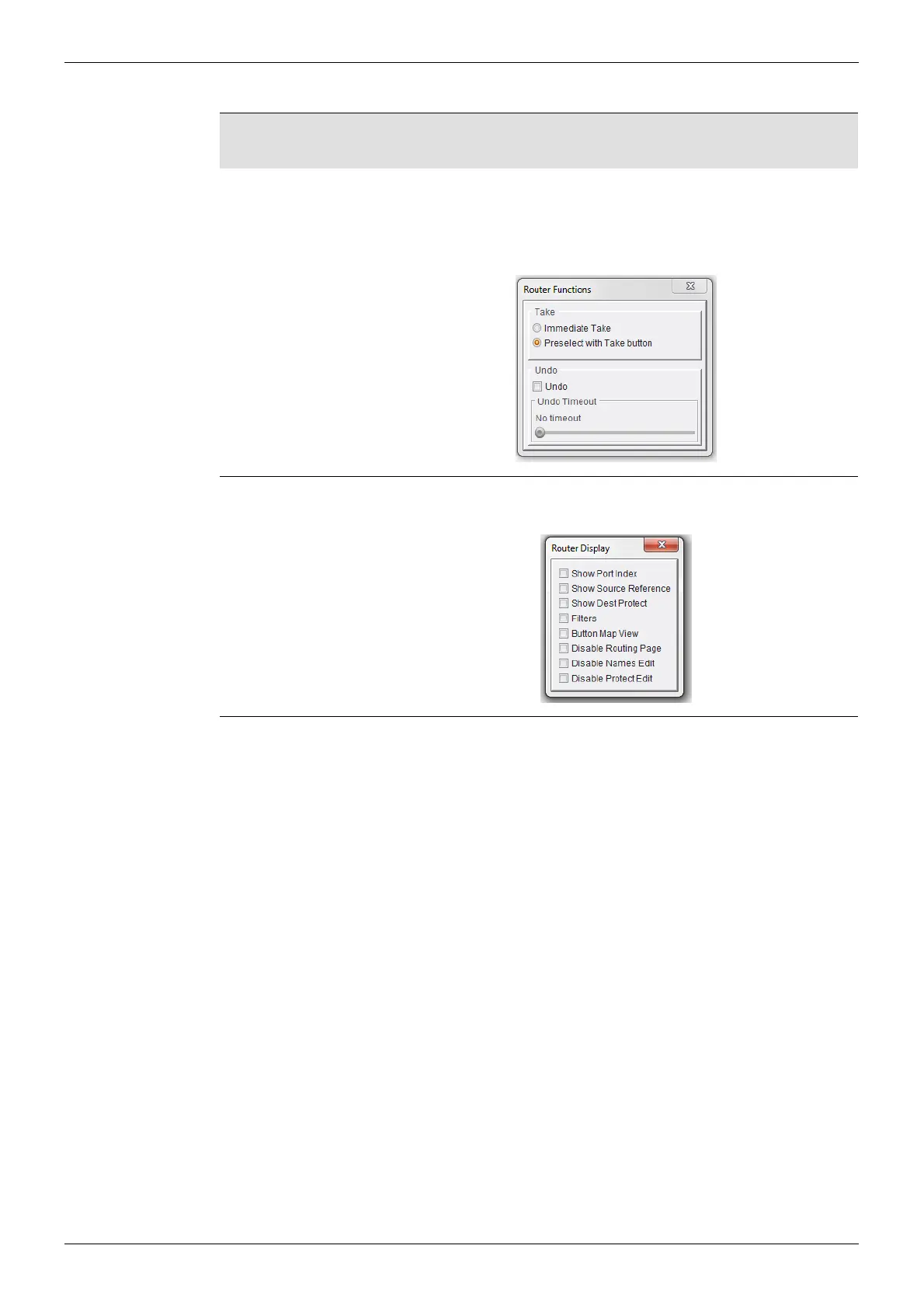

Router Functions Define Take and Undo buttons to be included in the Routing screen.

If no Take button is present, then routing takes place immediately.

An Undo button may be added with a time out.

Router Display Define additional information to be displayed on the source and

destination buttons.

Table 48 (Assoc Routing) XY Panel - Option Tab Controls
