7.12 Direct Audio - XY Panel Control Template
The Direct Audio routing XP panel controls the Vega 30 Router’s audio crosspoint.
Routing is controlled via the audio channel source names and numbers. (See Table 63 in
Section Appendix C on page 250.). There are 741 audio channel sources and 928 audio
channel destinations.
The Direct Audio routing XP panel screen operation is similar to the one described in Section
7.8 “Assoc Routing - XY Panel Control Template” on page 135.

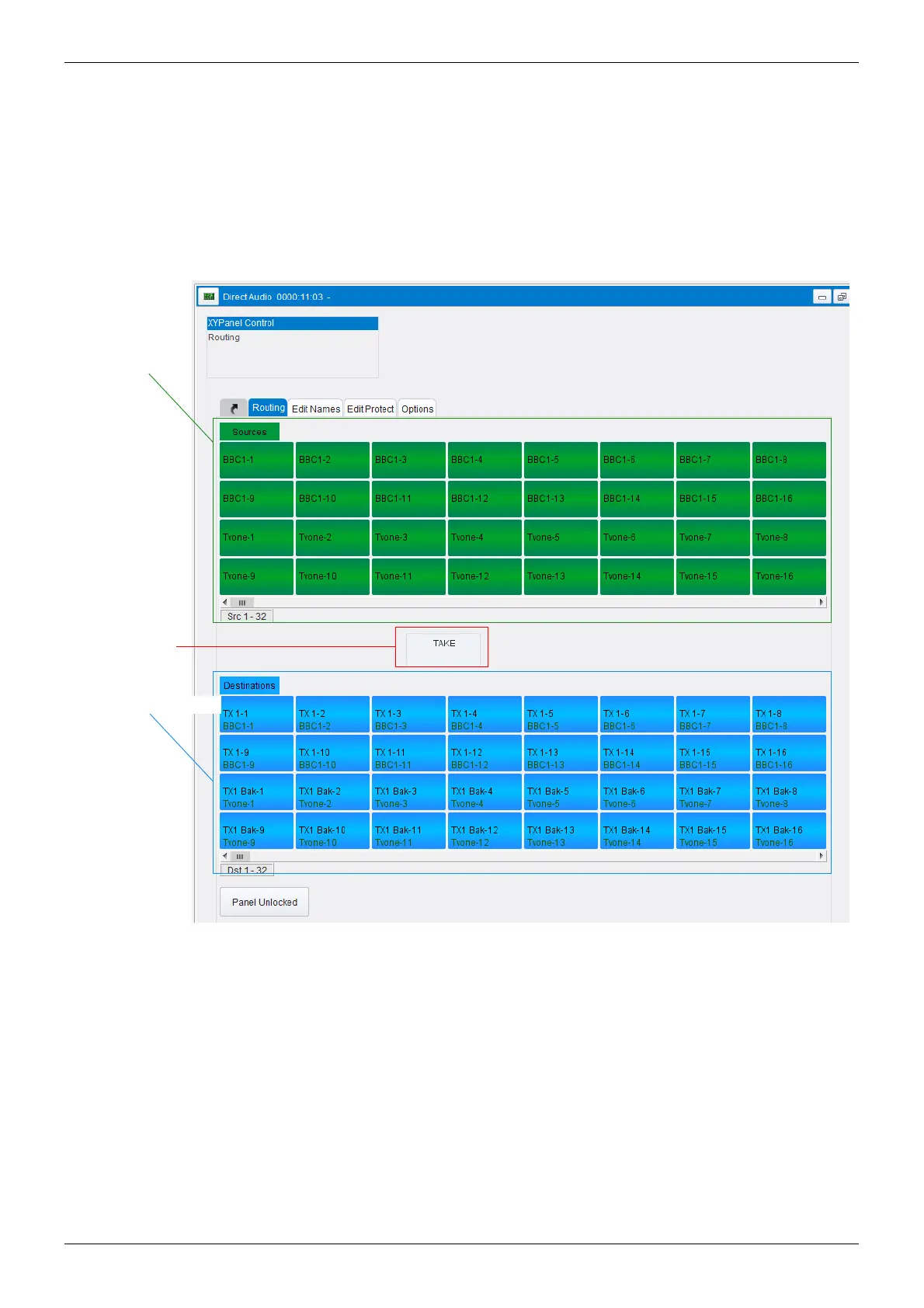

Figure 117 (Direct Audio) XY Panel
TAKE button
Audio Sources
741-off
Audio Destinations
928-off
